8210SRi27.01

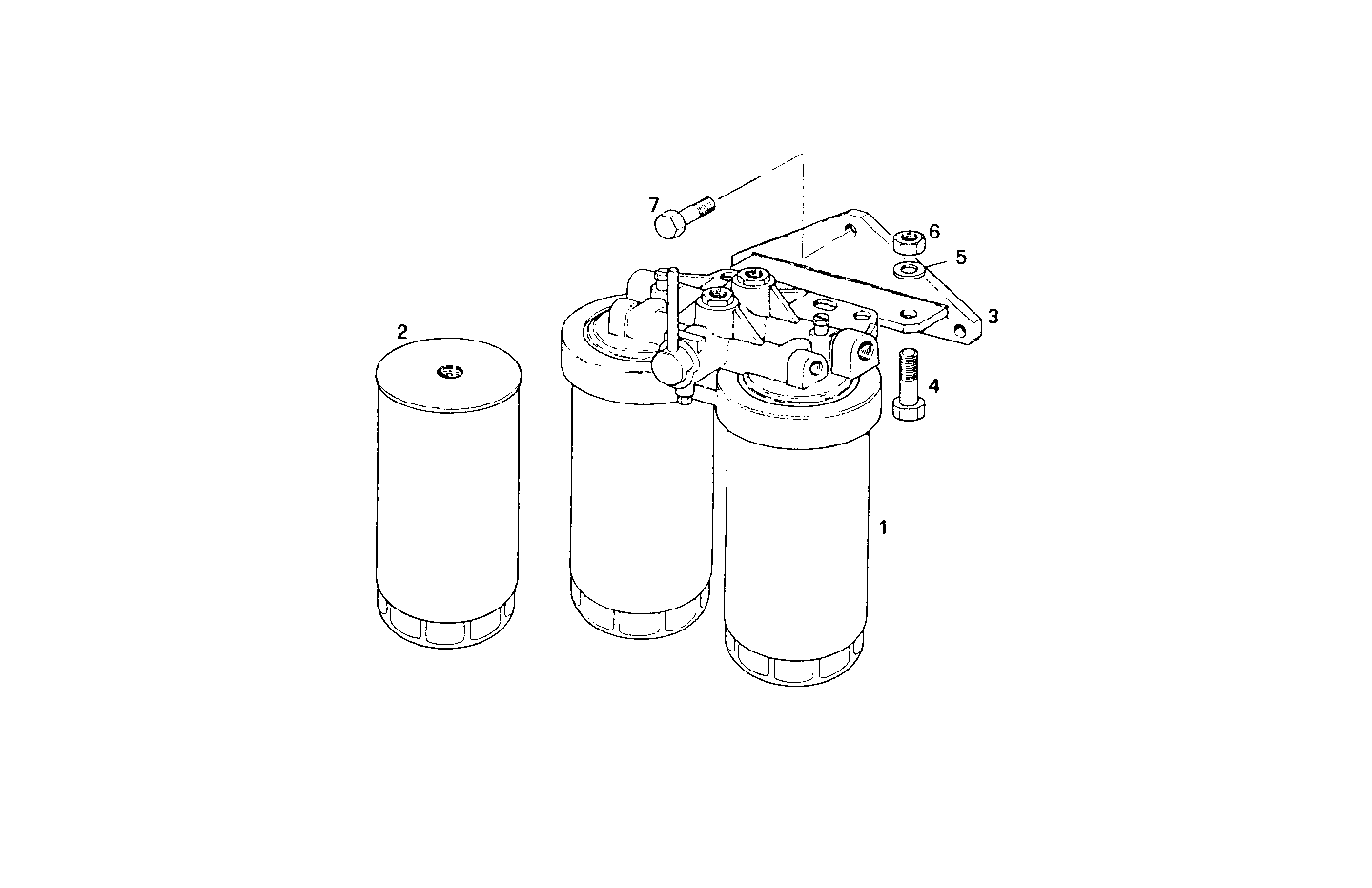

A15010018 DOUBLE FUEL FILTER - removing with engine running
Item | Part number | Description |
---|---|---|
1 | 8108315 | FUEL FILTER ASSY |
2 | 8106473 | FUEL FILTER CARTRIDGE |
3 | 8016442 | SUPPORT |
4 | 16610224 | HEXAGON BOLT M12X1,75X45 MM |
5 | 17091074 | WASHER Ø12X24X2,8 MM |
6 | 17038421 | HEXAGON NUT M12 (8) |
7 | 15888821 | HEXAGON BOLT M10X1,25X70 MM |
