8210SRi27.01

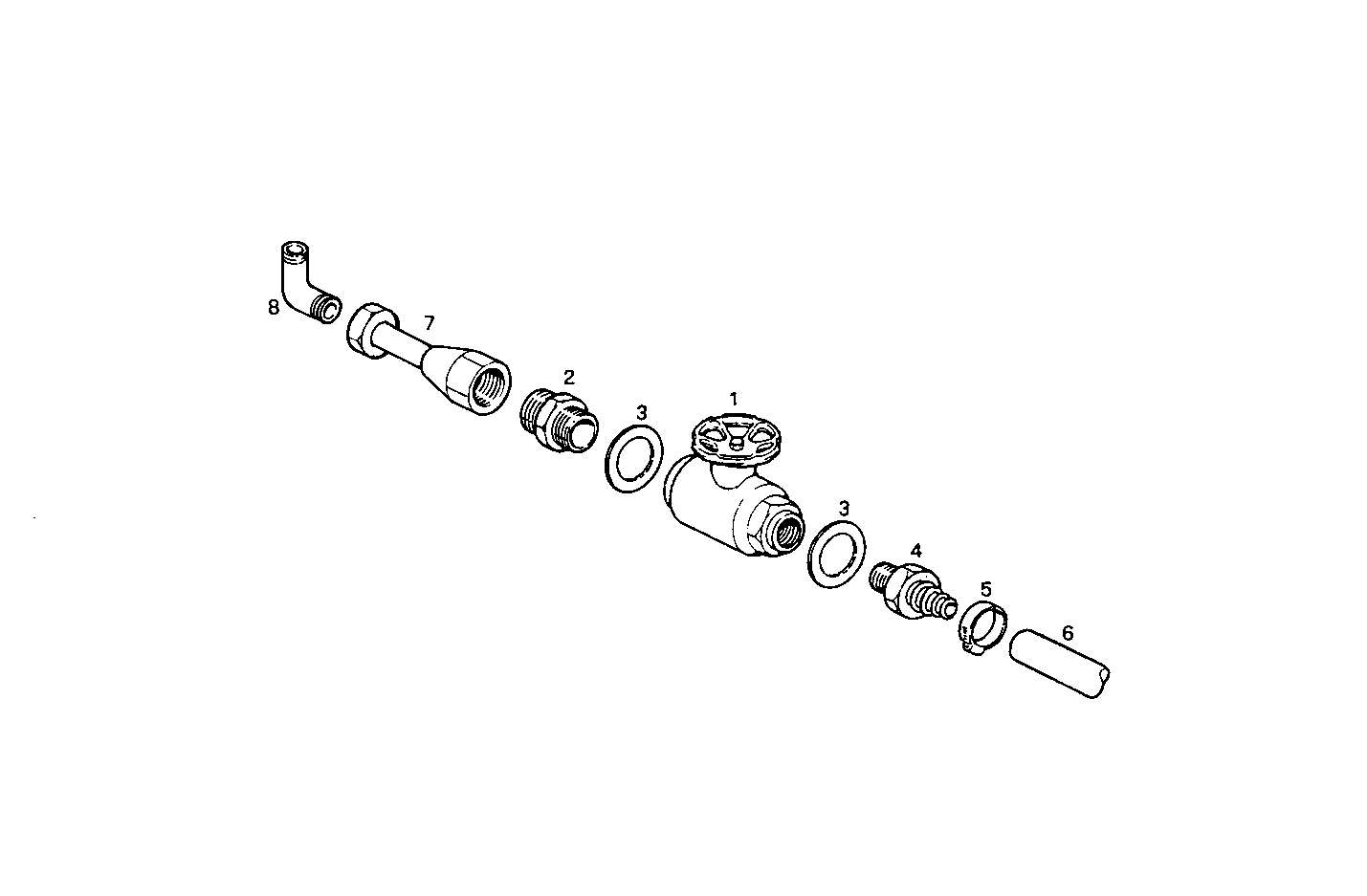

A49020003 DRAIN COCK [D 06-1998] [from06-1998]

Iveco/FPT DRAIN COCK

Item Part number Description
1 4930837 RETAINER COCK
2 8017190 PIPE SOCKET
3 11271460 GASKET Ø21X26X1,5 MM
4 4930839 PIPE SOCKET
5 17764592 CLIP Ø20/32 MM
6 4931236 OIL HOSE Ø24X18 - L=680 MM
7 8017191 OIL LINE
8 4928527 PIPE SOCKET
