8210SRi27.01A580

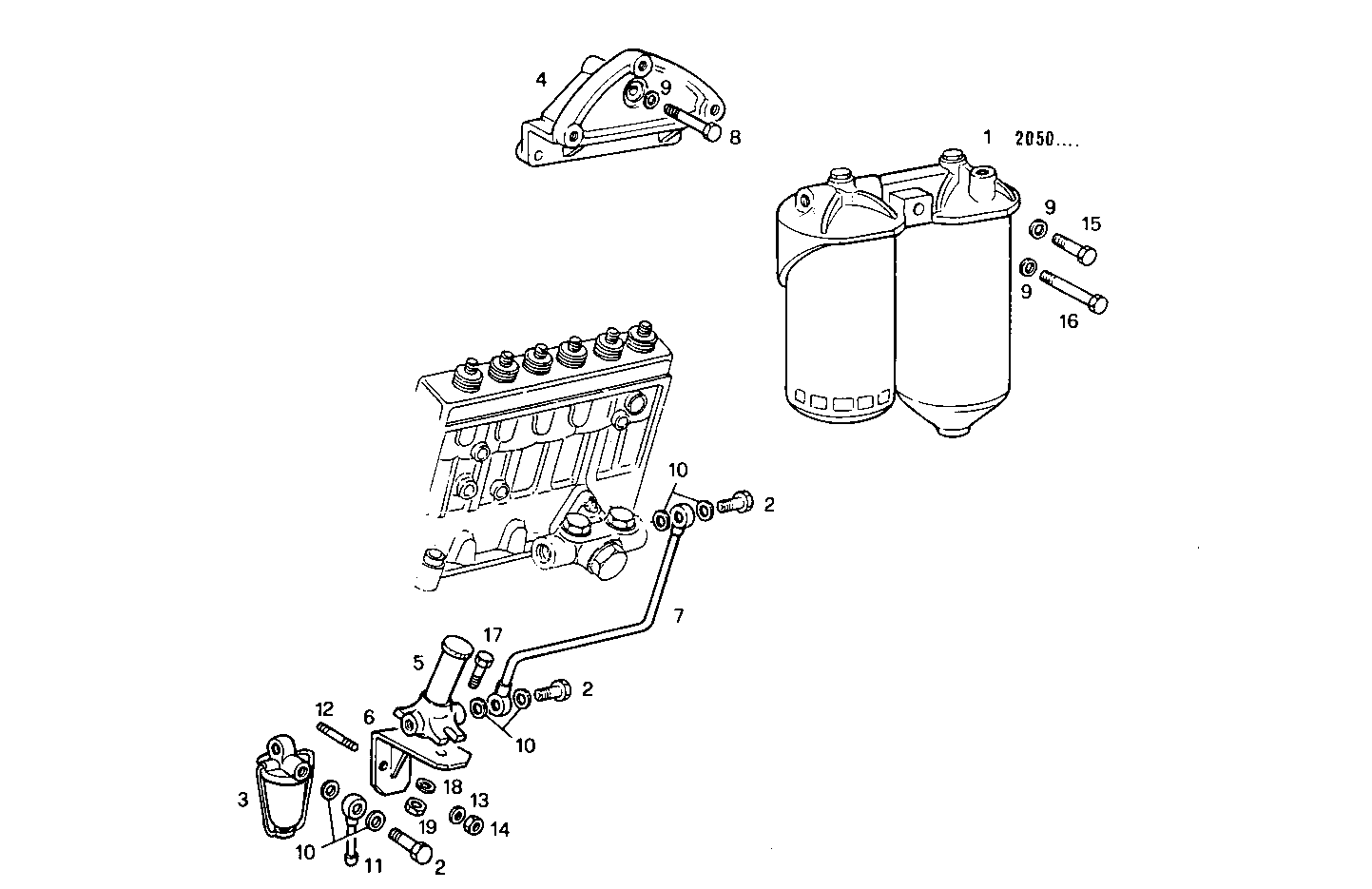

2000.034 FUEL FILTER

Iveco/FPT FUEL FILTER

Item Part number Description
1 4690738 FUEL FILTER ASSY
2 4864083 SCREW CONNECTOR M14X1,5X30 MM
3 4797318 FUEL FILTER CORONA
4 4702471 FILTER SUPPORT
5 4797319 HAND PUMP ASSY
6 8010575 RETAINER
7 8010519 FUEL LINE
8 15971330 HEXAGON BOLT M10X75 MM
9 17090174 SPRING WASHER Ø10X20 MM
10 4858608 SEAL GASKET dia.14x19,5x1,5
11 98404882 PIPE SOCKET Ø8 MM
12 16729224 STUD M8X16 MM
13 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
14 17037931 HEXAGON NUT M8X1,25
15 15972621 HEXAGON BOLT M10X1,25X140 MM
16 11307021 HEXAGON BOLT M10X40 MM
17 16603924 HEXAGON BOLT M6X30 MM
18 17088474 WASHER Ø6X12 MM
19 17037821 HEXAGON NUT M6X1
