8210SRi27.01A580

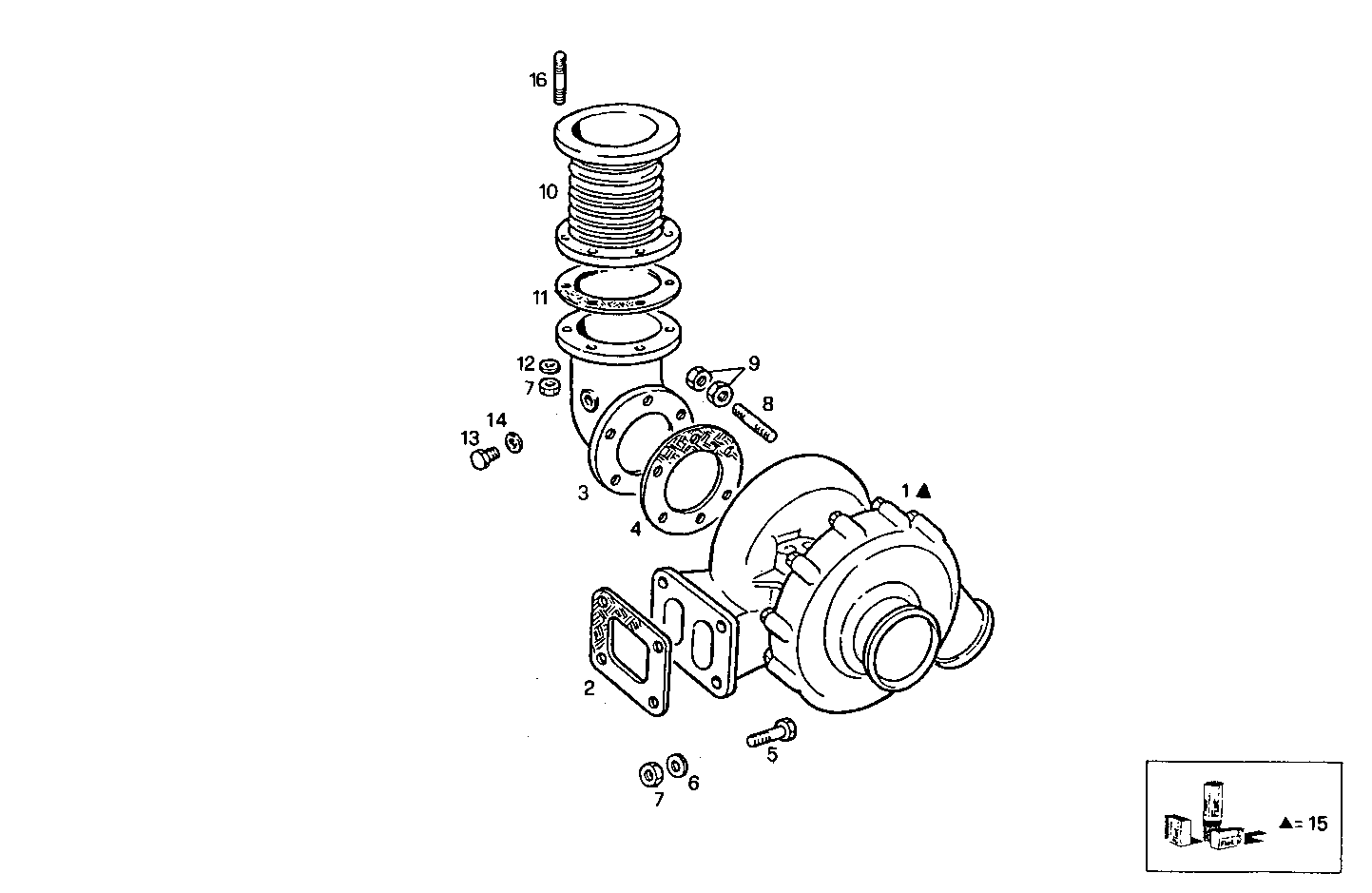

2400.036 TURBOCHARGER
Item | Part number | Description |
---|---|---|
1 | 8009448 | TURBOCHARGER ASSY HOLSET |
2 | 4512366 | GASKET |
3 | 8104510 | EXHAUST ELBOW |
4 | 42075987 | GASKET |
5 | 4786751 | SCREW |
6 | 10730521 | WASHER Ø10,2 MM |
7 | 17038221 | HEXAGON NUT M10 |
8 | 4731721 | STUD |
9 | 8100961 | NUT M10X1,25 |
10 | 8101671 | EXHAUST BELLOWS |
11 | 8009600 | GASKET |
12 | 11190579 | SPRING WASHER Ø10X20 MM SP=2,3 |
13 | 10300611 | LOCK PLUG M14X1,5 |
14 | 10296160 | SEAL GASKET Ø12X18 MM SP=1 MM |
15 | 8092706 | KIT-TURBOCHARGER |
16 | 13449524 | STUD M10X1,25X15X25 |
