8210SRi28.00

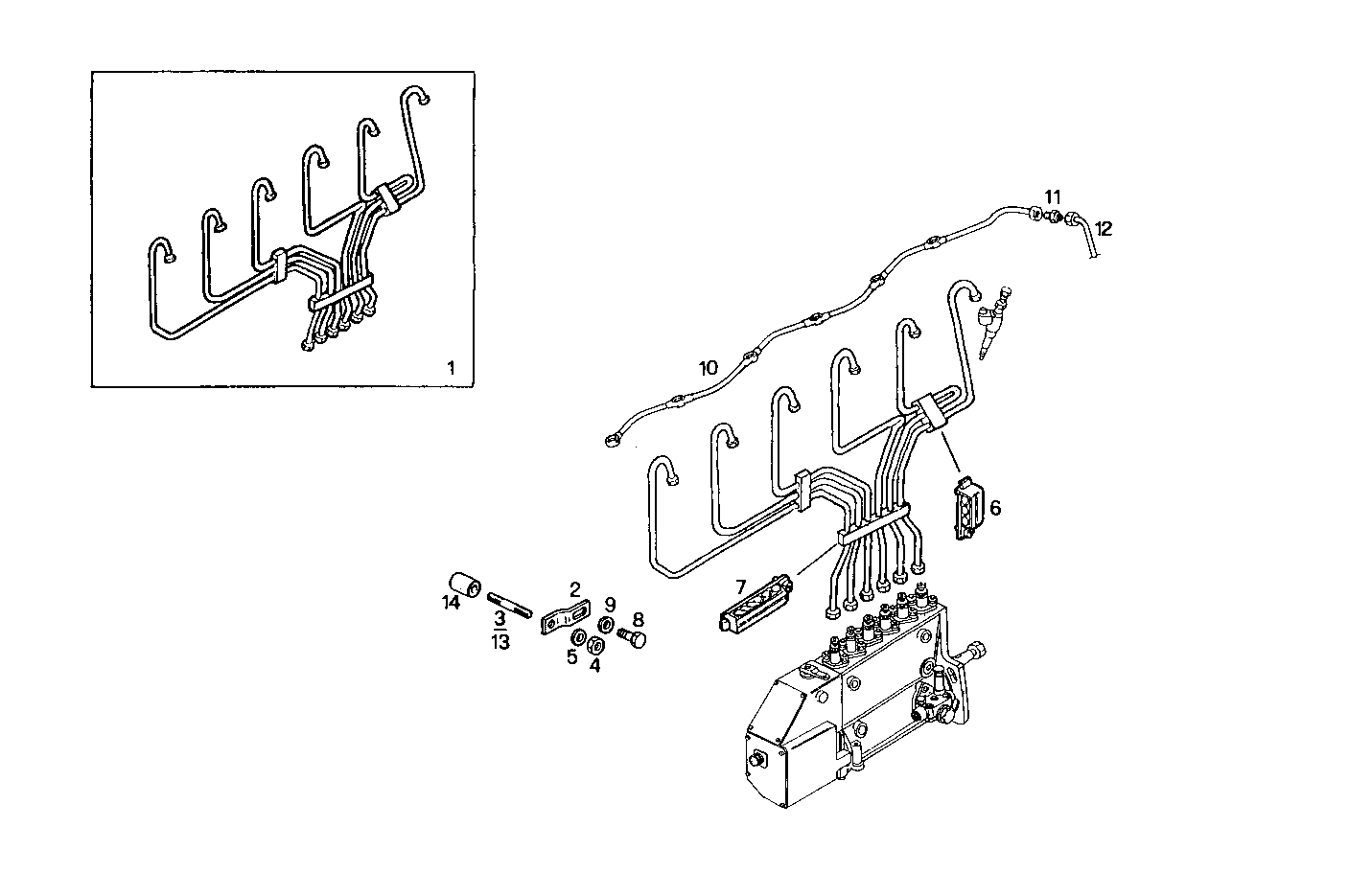

2020.062 INJECTION PIPES

Iveco/FPT INJECTION PIPES

Item Part number Description
1 98425916 INJECTION LINE SET ASSY GUIDO
2 8019203 RETAINER
3 16729324 STUD M8X12X20 MM
4 17037931 HEXAGON NUT M8X1,25
5 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
6 99434292 FASTENING BRACKET BUNDY
7 99434293 FASTENING BRACKET BUNDY
8 16603724 HEXAGON BOLT M6X20 MM (8.8)
9 17094714 WASHER Ø6,4X12 MM
10 98435435 FUEL LINE
11 16501511 SCREW CONNECTOR M12X1,5
12 8019769 FUEL LINE
13 16729524 STUD M8X1,25X30
14 17816111 SPACING BAR Ø8,5X18 MM SP=8 MM
