8210SRi28.00

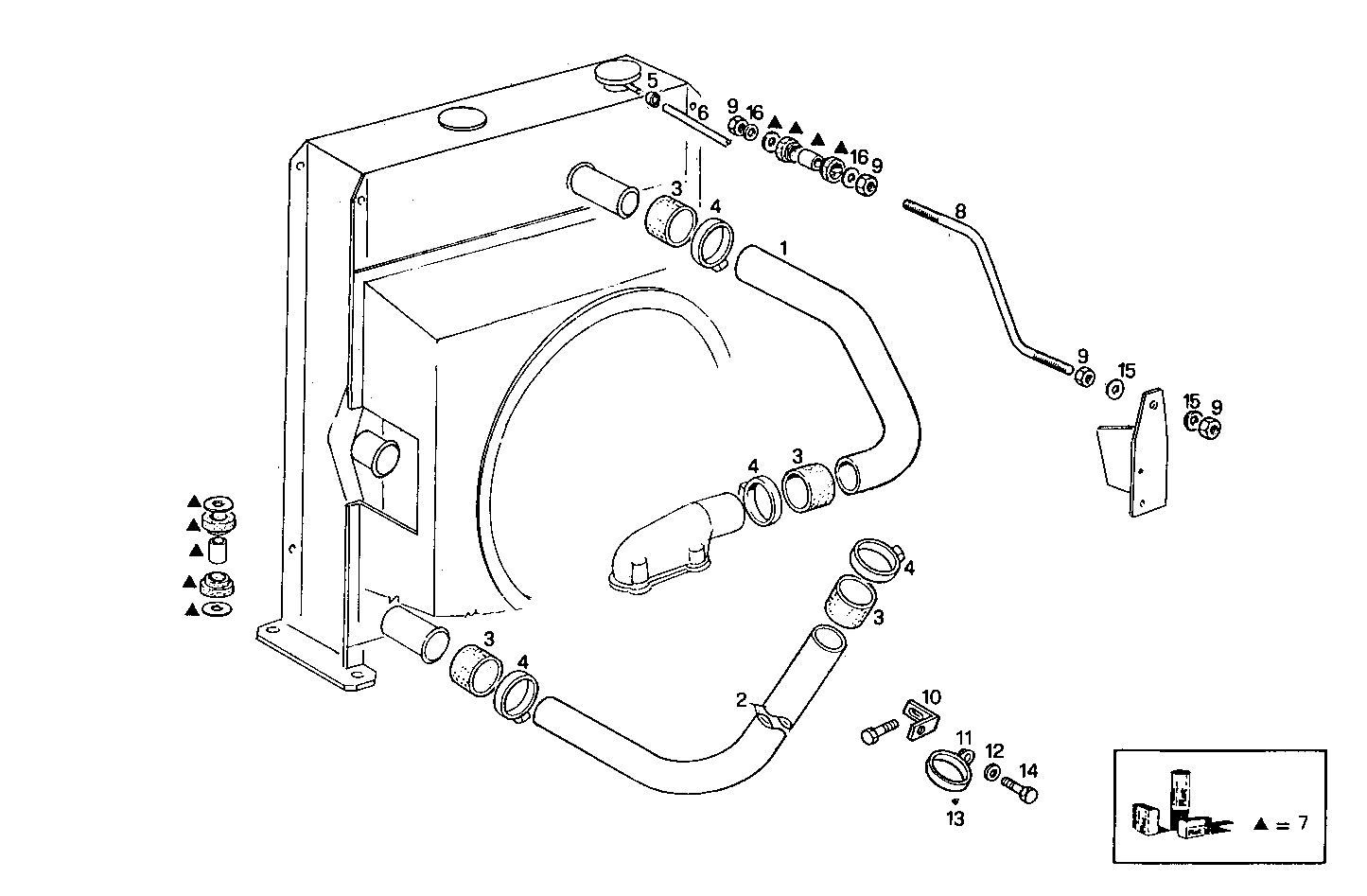

3300.014/02 RADIATOR
Item | Part number | Description |
---|---|---|
1 | 8017857 | WATER PIPE |
2 | 8017856 | WATER PIPE |
3 | 17745887 | RUBBER SLEEVE WATER |
4 | 4830091 | CLIP |
5 | 18087991 | CLIP Ø8/16 MM |
6 | 19056687 | RUBBER HOSE Ø7,5 MM |
7 | 8090341 | KIT-RADIATOR A.S. COMPLETE |
8 | 8019388 | TIE ROD |
9 | 17038421 | HEXAGON NUT M12 (8) |
10 | 8100819 | RETAINER |
11 | 4936328 | CLIP ASSY |
12 | 17090174 | SPRING WASHER Ø10X20 MM |
13 | 4565875 | RUBBER PAD |
14 | 11306921 | SCREW M10X1,25X30 |
15 | 17091374 | SPRING WASHER Ø12X30X3,0 MM |
16 | 17095304 | WASHER Ø12X24 MM |
