8210SRi28.00

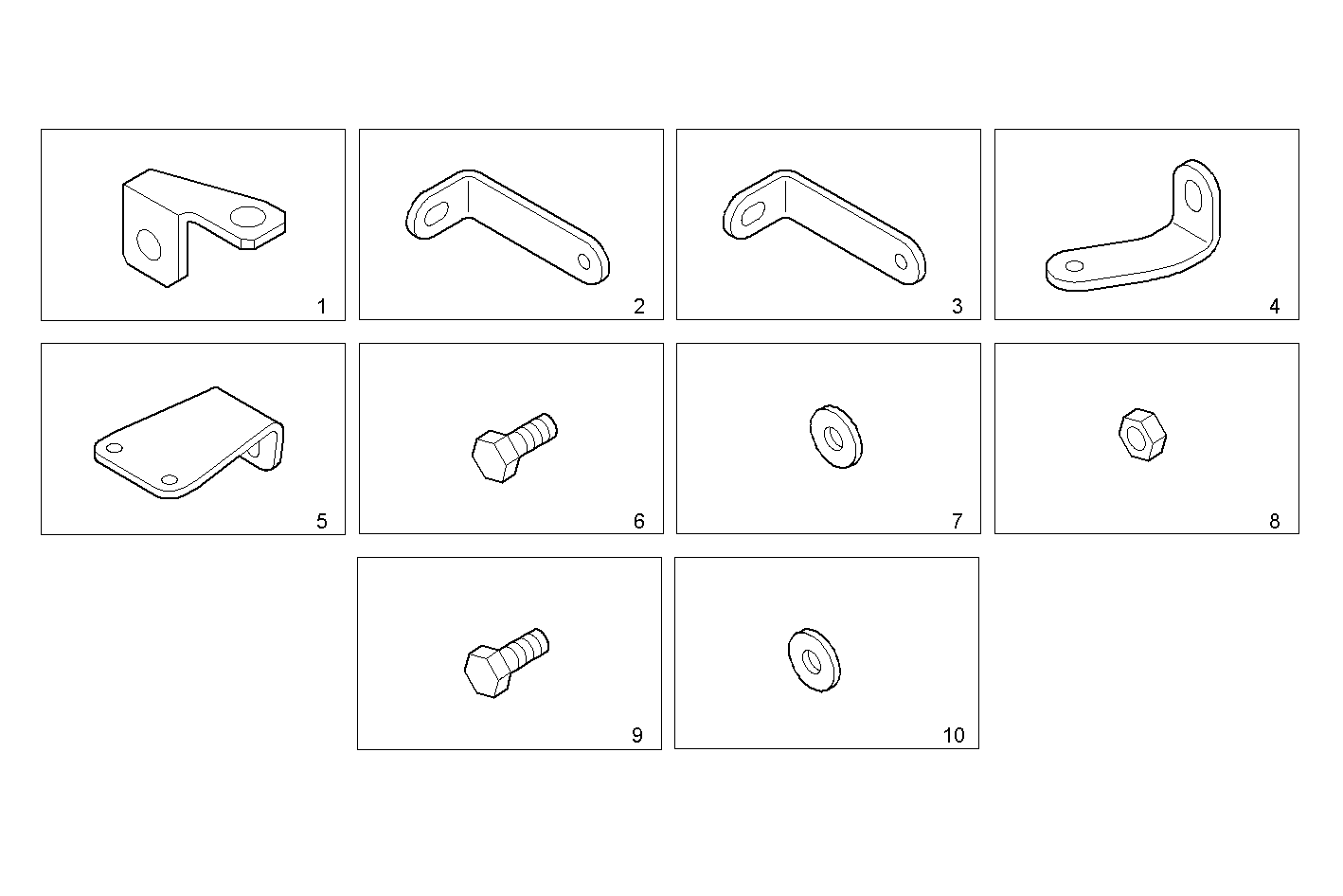

5770.040/04 SHIELDS
| Item | Part number | Description |
|---|---|---|
| 1 | 4787181 | SUPPORT |
| 2 | 8021530 | RETAINER |
| 3 | 8017675 | RETAINER |
| 4 | 8021545 | RETAINER |
| 5 | 8021531 | RETAINER |
| 6 | 16605524 | HEXAGON BOLT M8X20 MM |
| 7 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 8 | 17037921 | HEXAGON NUT M8X1,25 |
| 9 | 16605424 | SCREW M8X16 MM (8.8) |
| 10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
