8210SRi28.00

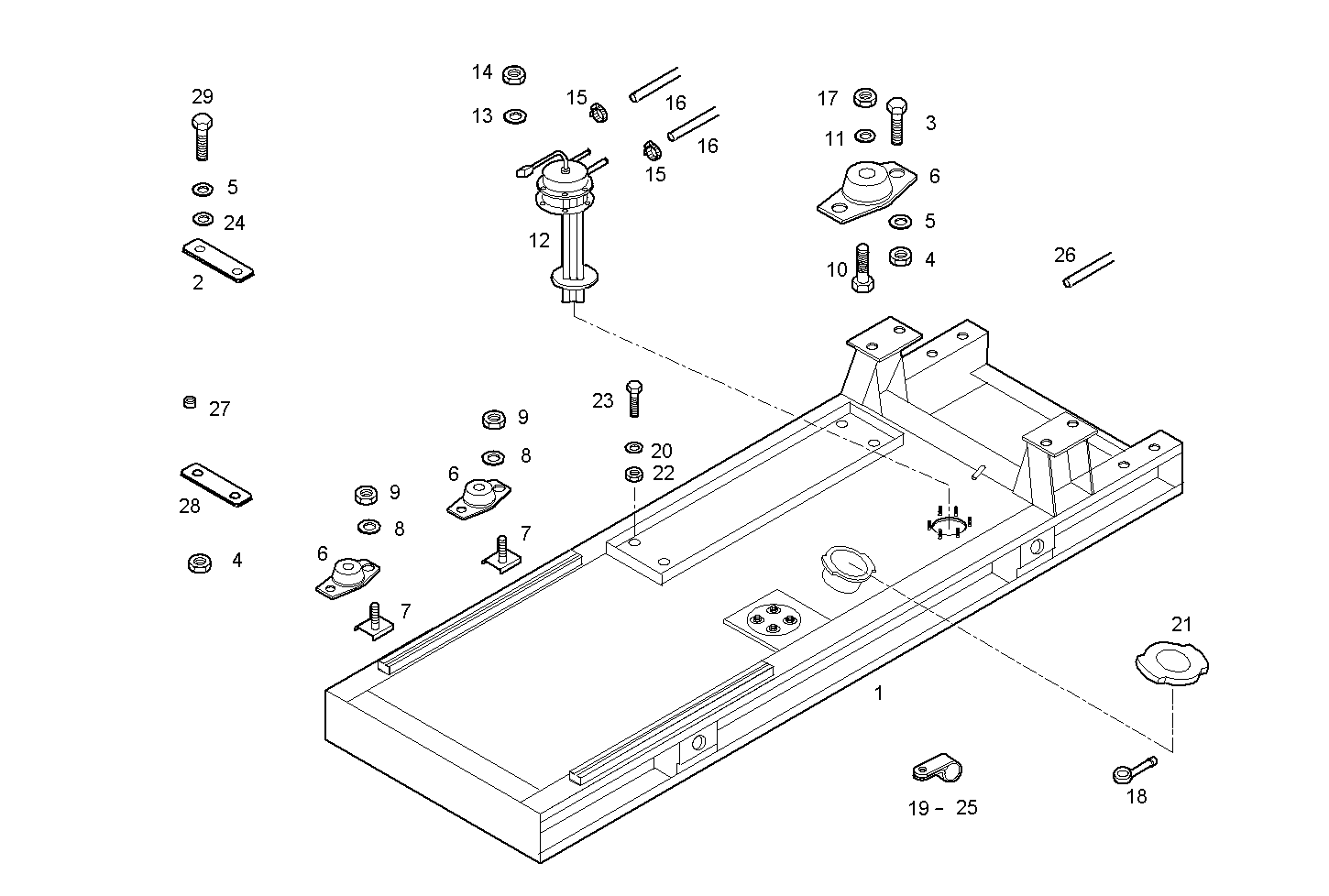

A36710012 SUBBASE FOR GENERATOR UNIT

Iveco/FPT SUBBASE FOR GENERATOR UNIT

Item Part number Description
1 8016837 SUBBSAE-SUPPORT FRAME
2 8010041 SPACING BAR SP=7 MM
3 16614724 SCREW M16X45
4 17038931 HEXAGON NUT M16X2
5 17092374 SPRING WASHER Ø16X34X3,6 MM
6 4955094 RUBBER PAD
7 8015168 SCREW
8 17091974 SPRING WASHER Ø14X32 MM SP=3,4 MM
9 17038721 NUT M14X2 [from ...]
10 16620124 SCREW M24X3X80
11 17093174 WASHER Ø24X46X5,4 MM
12 8016863 FUEL LEVEL GAUGE
13 17094204 WASHER Ø4X8X0,8 MM
14 17037621 HEXAGON NUT M4
15 18087991 CLIP Ø8/16 MM
16 17723082 BREATHER PIPE
17 17039721 HEXAGON NUT M24
18 98413896 PIPE SOCKET Ø8 MM
19 17317390 FASTENING BRACKET Ø28 MM x M8
20 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
21 8018375 PLUG
22 17037925 HEXAGON NUT M8X1,25
23 16605524 HEXAGON BOLT M8X20 MM
24 17095704 WASHER Ø16X30 MM
25 4936278 CLIP
26 19053382 HOSE
27 8019415 SPACING BAR
28 8017006 SPACING BAR SP=10,00 MM
29 16615124 SCREW
