8210SRi28.00A580

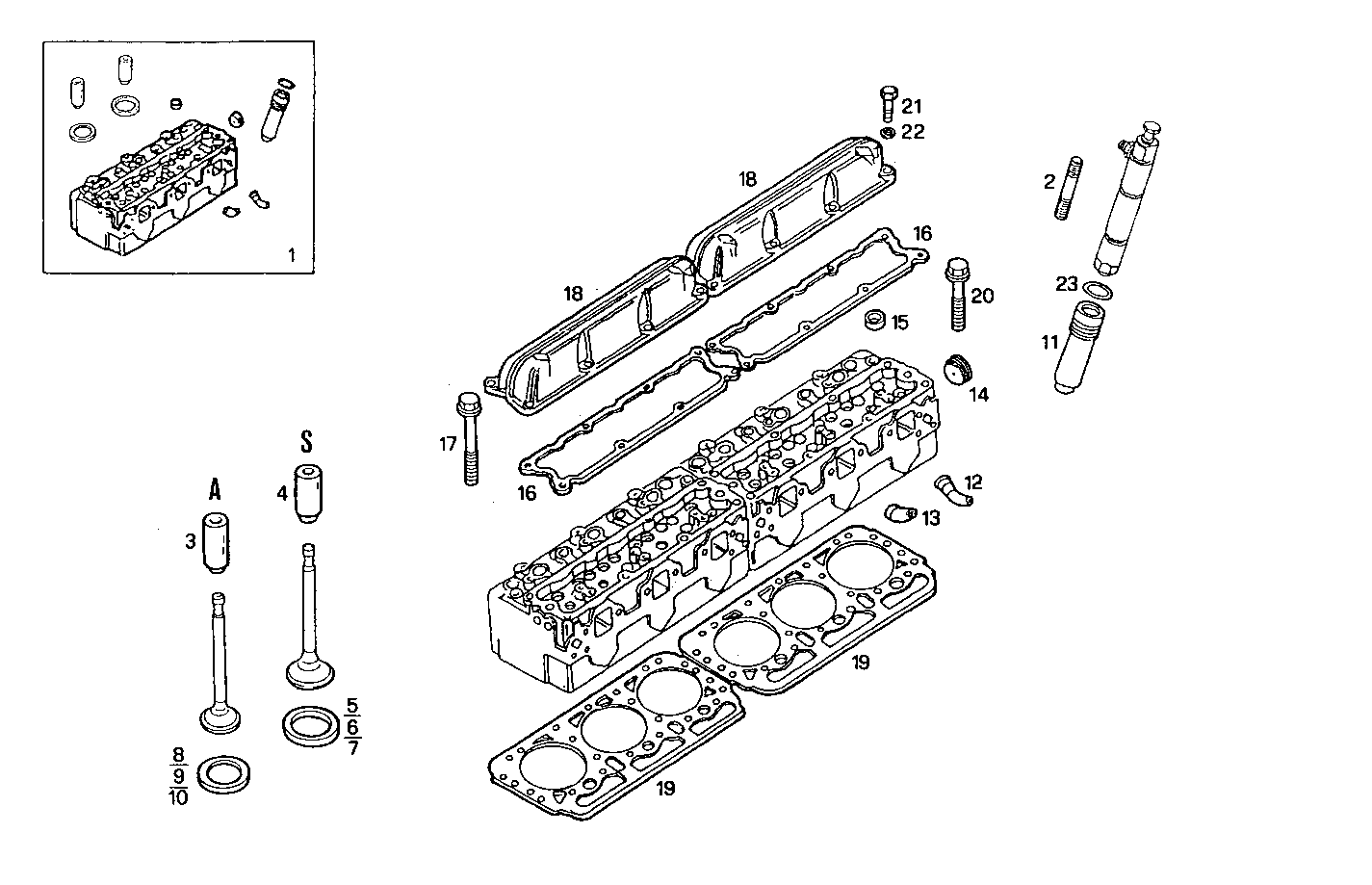

0600.075/01 CYLINDER HEAD
| Item | Part number | Description |
|---|---|---|
| 1 | 99466903 | CYLINDER HEAD ASSY |
| 2 | 13449930 | STUD M10X40 MM |
| 3 | 4648237 | VALVE GUIDE |
| 4 | 4630923 | VALVE GUIDE |
| 5 | 98444350 | VALVE SEAT STD. GOETZE |
| 6 | 98444352 | VALVE SEAT +0.20 GOETZE |
| 7 | 98444351 | VALVE SEAT +0.05 GOETZE |
| 8 | 4673864 | VALVE SEAT STD. |
| 9 | 4673868 | VALVE SEAT +0.20 |
| 10 | 4673869 | VALVE SEAT +0.05 |
| 11 | 4817147 | NOZZLE HOLDER SEAT |
| 12 | 4638192 | PIPE |
| 13 | 4623879 | PIPE |
| 14 | 61584412 | LOCK PLUG |
| 15 | 16991070 | LOCK PLUG Ø32 MM |
| 16 | 98480127 | HEAD COVER GASKET [from 08-97] |
| 17 | 4769616 | CYL.HEAD STUD |
| 18 | 98474544 | CYL. HEAD COVER |
| 19 | 99465715 | CYL.HEAD GASKET |
| 20 | 4769615 | SCREW |
| 21 | 16606424 | HEXAGON BOLT M8X65 MM |
| 22 | 17094914 | WASHER 8x16 |
| 23 | 17278981 | O-RING Ø25,12 MM SP=1,78 MM |
