8210SRi28.00A580

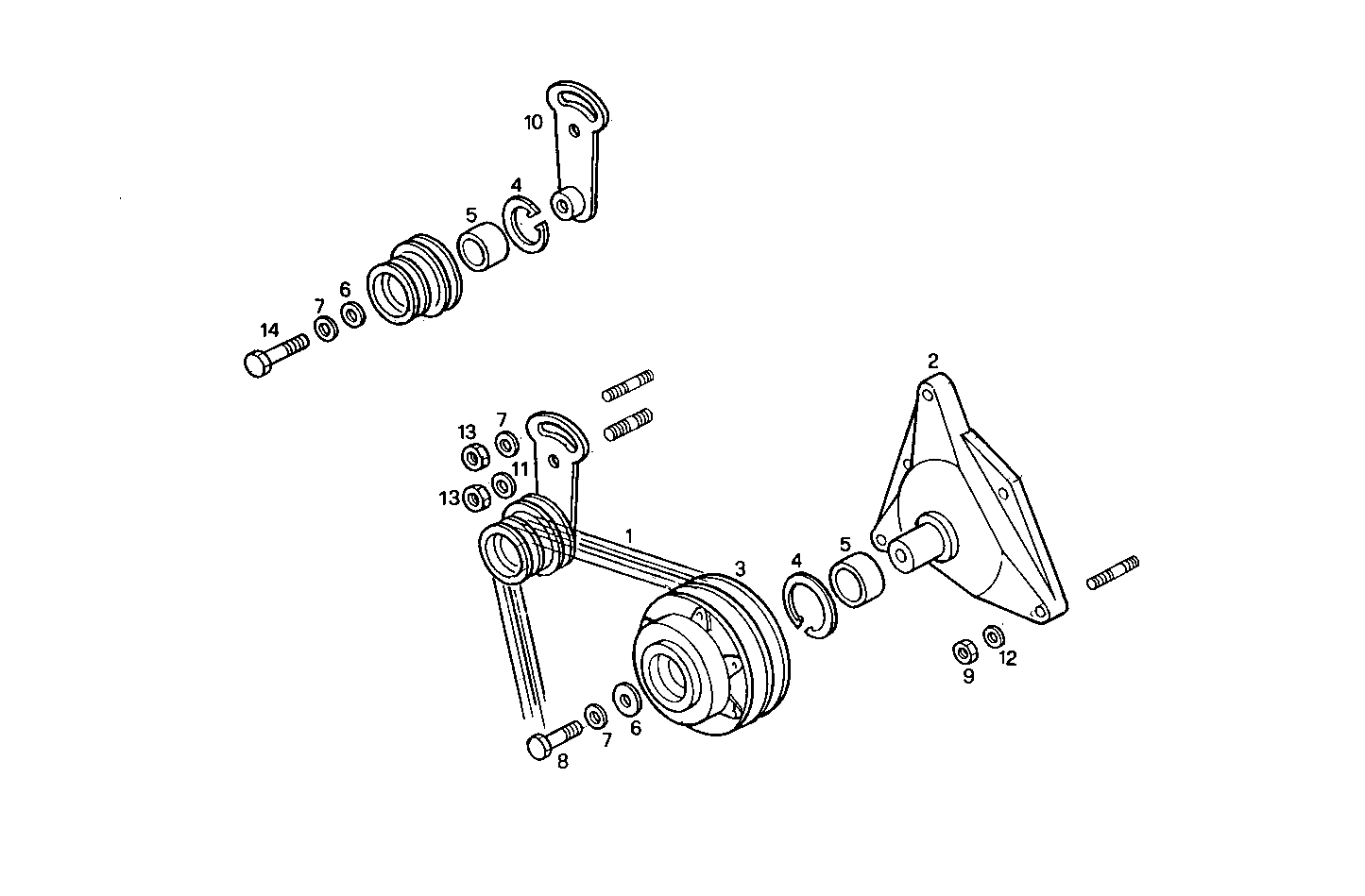

3240.057 PULLEYS AND BELTS
Item | Part number | Description |
---|---|---|
1 | 4854694 | SET OF V-BELTS KIT |
2 | 98484127 | SUPPORT |
3 | 98435381 | PULLEY |
4 | 16874776 | CIRCLIP Ø85,5 MM [from 10-92] |
5 | 98427607 | ENGINE BEARINGS |
6 | 98427590 | WASHER |
7 | 17091074 | WASHER Ø12X24X2,8 MM |
8 | 15541421 | HEXAGON BOLT M12X1,25X80 MM |
9 | 17038221 | HEXAGON NUT M10 |
10 | 98480739 | BELT TENSIONER |
11 | 12646921 | WASHER Ø12X28 MM |
12 | 17090174 | SPRING WASHER Ø10X20 MM |
13 | 17038621 | NUT M12 |
14 | 15540521 | SCREW M12X1,25X35 |
15 | 98428704 | PULLEY |
