8210SRi28.00A580

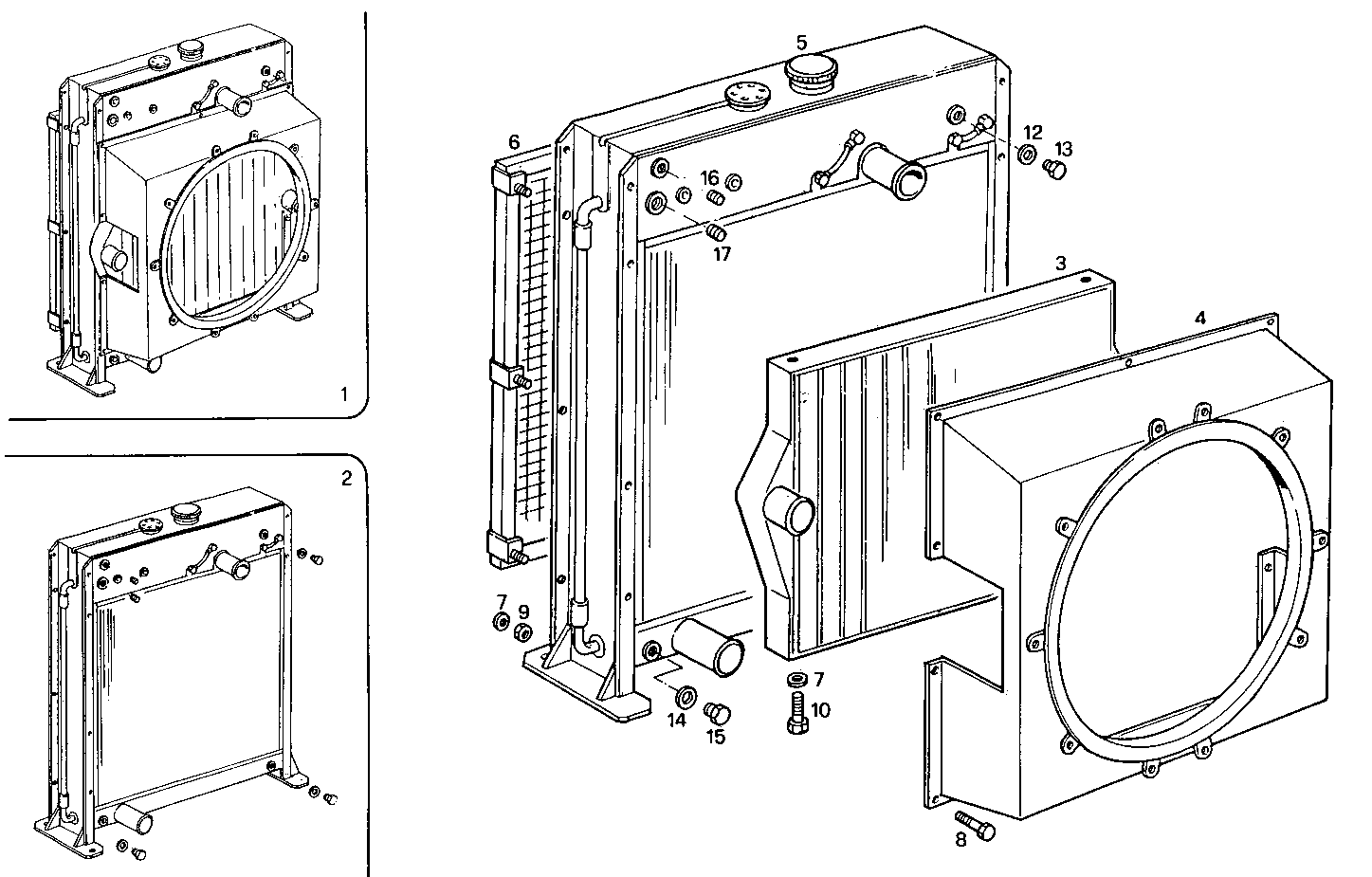

3300.014/01 RADIATOR
| Item | Part number | Description |
|---|---|---|
| 1 | 8017088 | WATER RADIATOR ASSY |
| 2 | 8008461 | WATER RADIATOR ASSY |
| 3 | 8007997 | INTERCOOLER Tesio |
| 4 | 8015969 | AIR HOOD |
| 5 | 8017558 | RADIATOR PLUG |
| 6 | 8008490 | PROTECTION |
| 7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 8 | 16605524 | HEXAGON BOLT M8X20 MM |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
| 10 | 16605424 | SCREW M8X16 MM (8.8) |
| 11 | 8012140 | VALVE |
| 12 | 11270460 | GASKET Ø17X21X1,5 MM |
| 13 | 8105096 | PLUG |
| 14 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 15 | 16992311 | LOCK PLUG M14X1,5 |
| 16 | 8013913 | PLUG |
| 17 | 8013914 | PLUG |
