8210SRi29.00

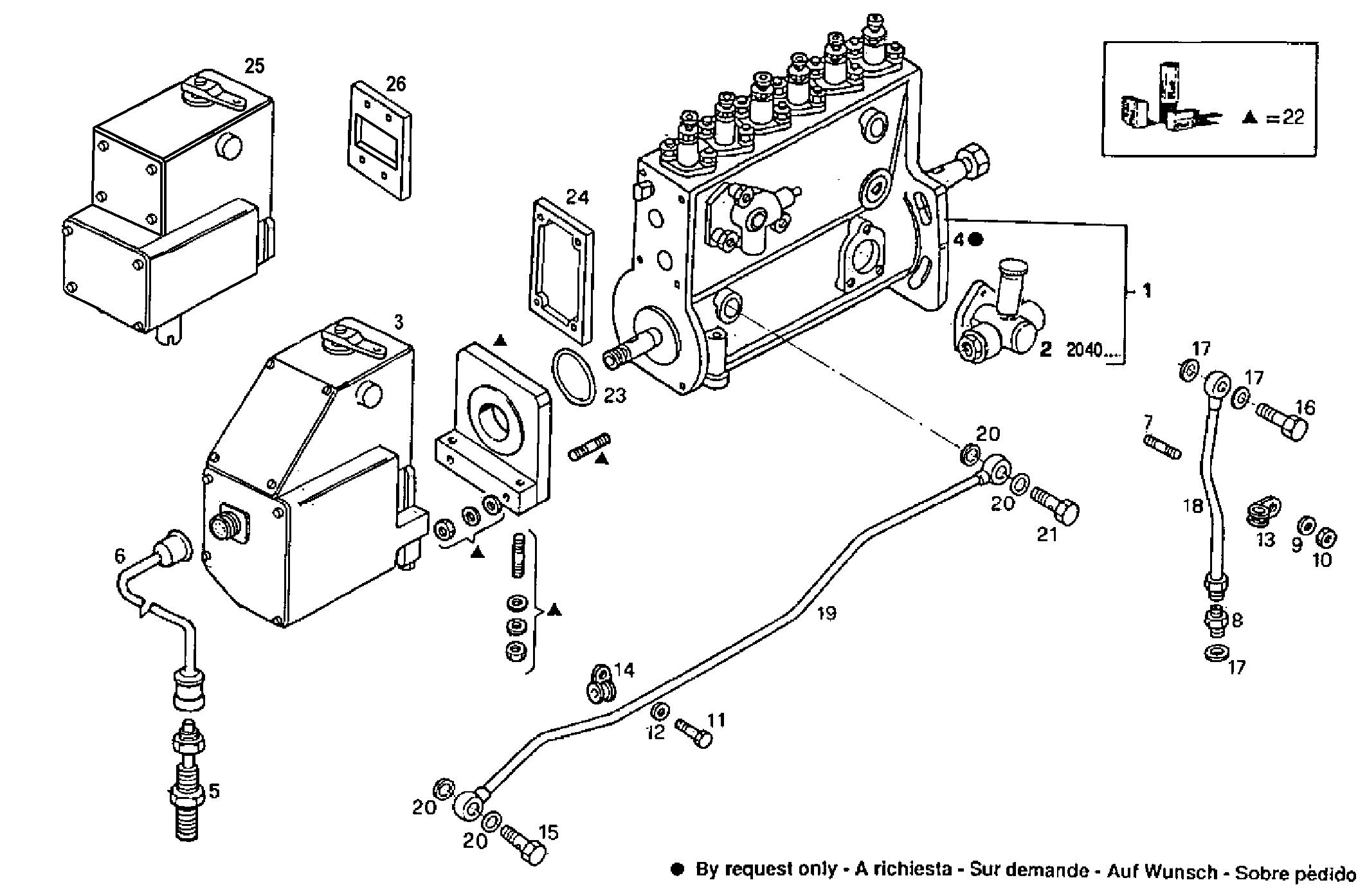

1400.145 INJECTION PUMP ASSY

Iveco/FPT INJECTION PUMP ASSY

Item Part number Description
1 8018481 INLINE INJECT.PUMP ASSY
2 8092637 FUEL PUMP OPT.
3 8029133 ENGINE ACTUATOR
5 8018673 PICK-UP
6 8018791 ENGINE HARNESS
7 16727624 STUD M6X16 MM
8 500302990 THREADED UNION M10X1 - M12X1,5
9 17088974 SPRING WASHER Ø6X18X1,4 MM
10 17037821 HEXAGON NUT M6X1
11 15970521 HEXAGON BOLT M10X20 MM
12 17090174 SPRING WASHER Ø10X20 MM
13 17314590 RETAINER Ø6 MM
14 99431539 PIPE CLIP VALEO 10"1/2
15 4864083 SCREW CONNECTOR M14X1,5X30 MM
16 4864079 SCREW CONNECTOR M10X1
17 98474305 WASHER Ø10X17 MM SP=2,3
18 8019767 OIL LINE
19 99431265 HYDRAULIC LINE
20 98474308 SEAL GASKET Ø14X22 MM
21 98479387 SCREW CONNECTOR [from 301968]
22 8018343 SPEED-GOVERNOR-KIT
23 17280481 O-RING Ø63,22X1,78 MM
24 8093808 GASKET
25 8037141 ENGINE ACTUATOR [FROM # 11-03]
26 8094823 GASKET [FROM # 11-03]
