8210SRi29.00

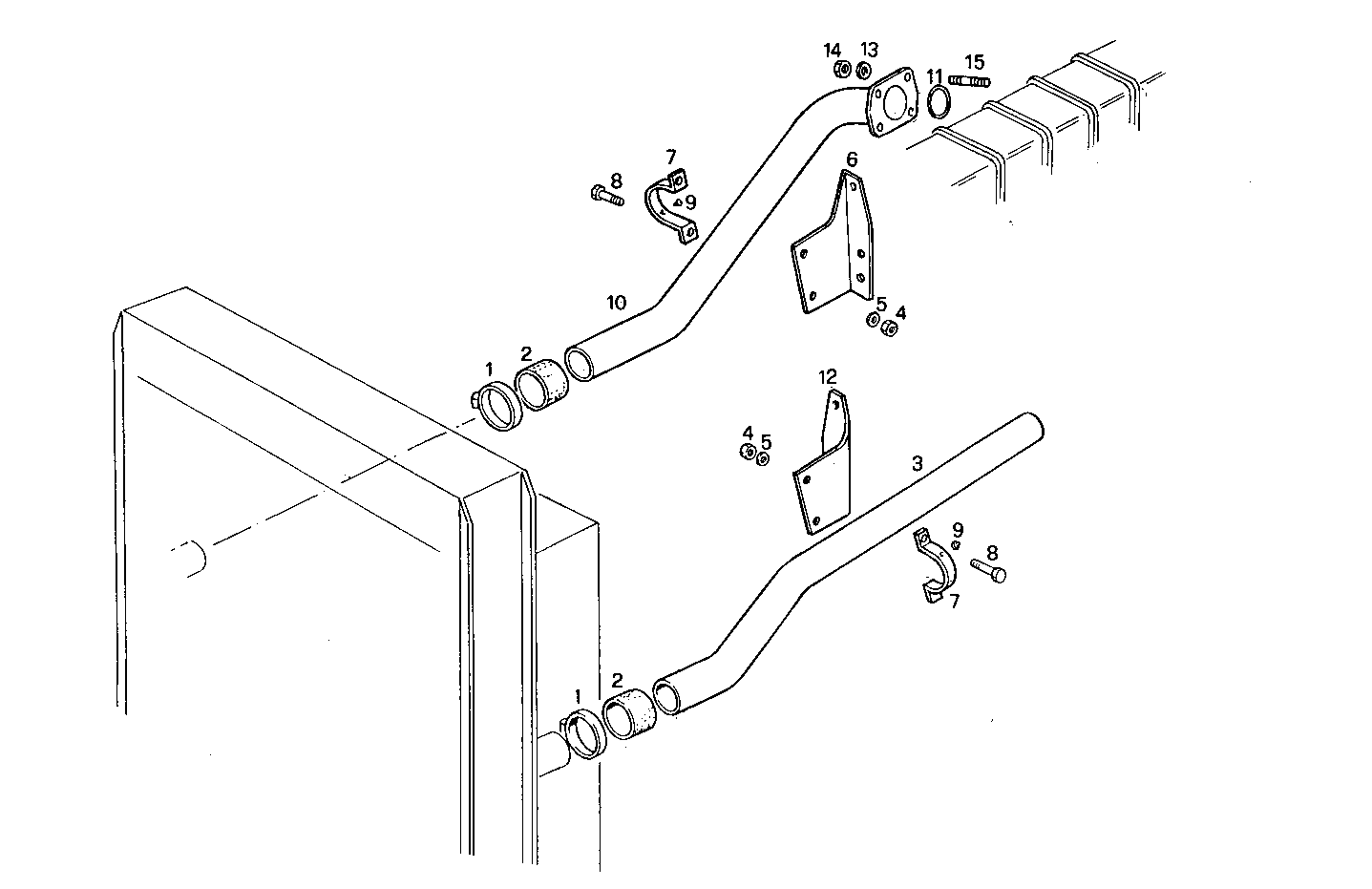

2420.160/02 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8020013 | CLIP |
| 2 | 42088612 | WATER HOSE |
| 3 | 8027411 | AIR PIPE/DUCT |
| 4 | 17037931 | HEXAGON NUT M8X1,25 |
| 5 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 6 | 8019387 | RETAINER |
| 7 | 8108759 | CLIP |
| 8 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 9 | 1366290 | RUBBER LUG |
| 10 | 8027972 | AIR PIPE/DUCT |
| 11 | 17291481 | O-RING Ø101,19 MM SP=3,53 |
| 12 | 8019386 | RETAINER |
| 13 | 17090174 | SPRING WASHER Ø10X20 MM |
| 14 | 17038121 | HEXAGON NUT M10 |
| 15 | 16748524 | STUD M10X25 MM (8.8) |
