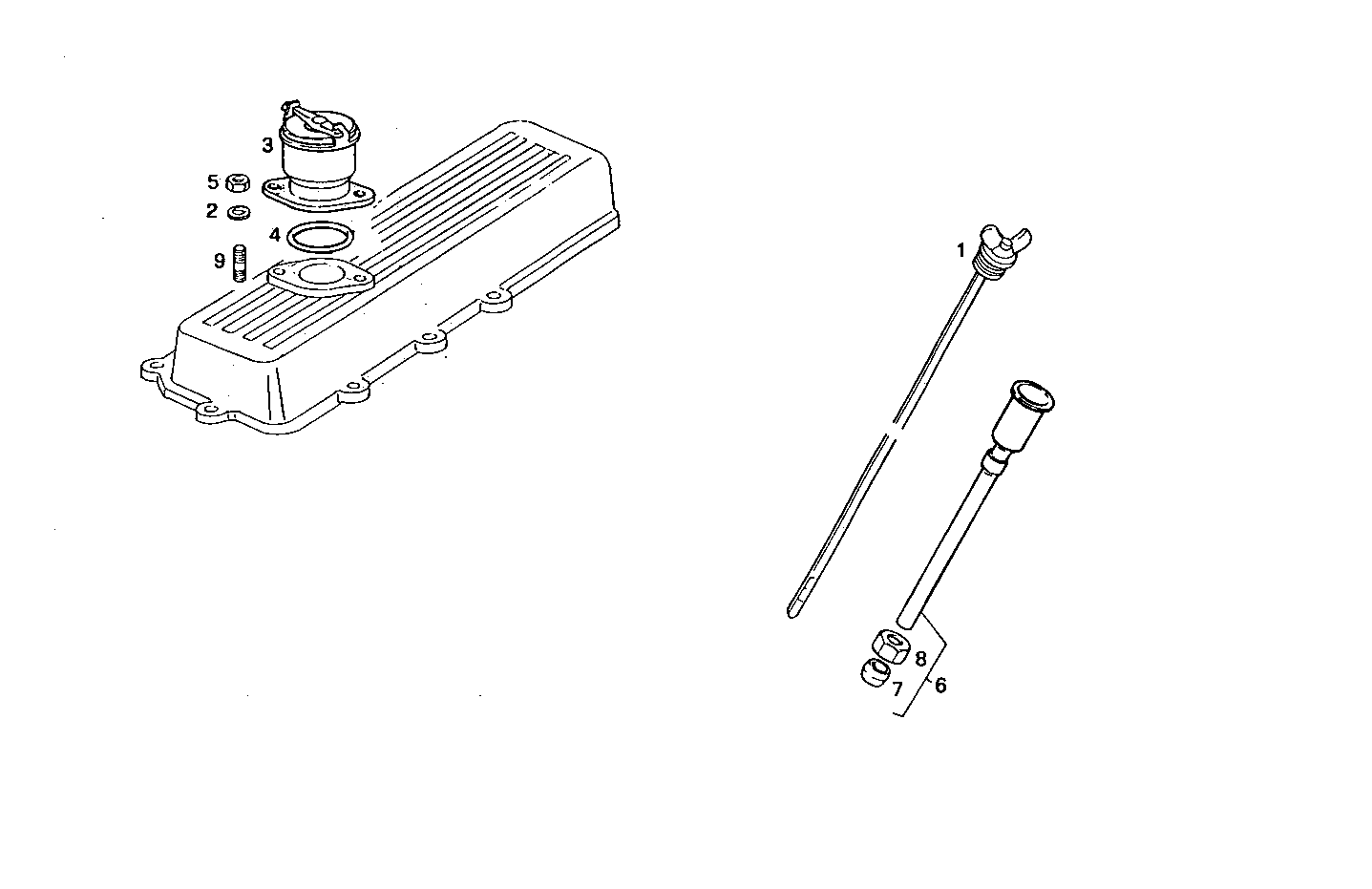

2710.048 OIL DIPSTICK

Iveco/FPT OIL DIPSTICK

Item Part number Description
1 8018043 OIL DIPSTICK ASSY
2 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
3 8020561 FILLER NECK
4 17290081 O-RING Ø56,74 MM SP=3,53 MM
5 17037931 HEXAGON NUT M8X1,25
6 8018042 ROD GUIDE ASSY
7 4641221 RING
8 4641220 NUT
9 16746724 STUD M8X25 MM
