8210SRi29.00

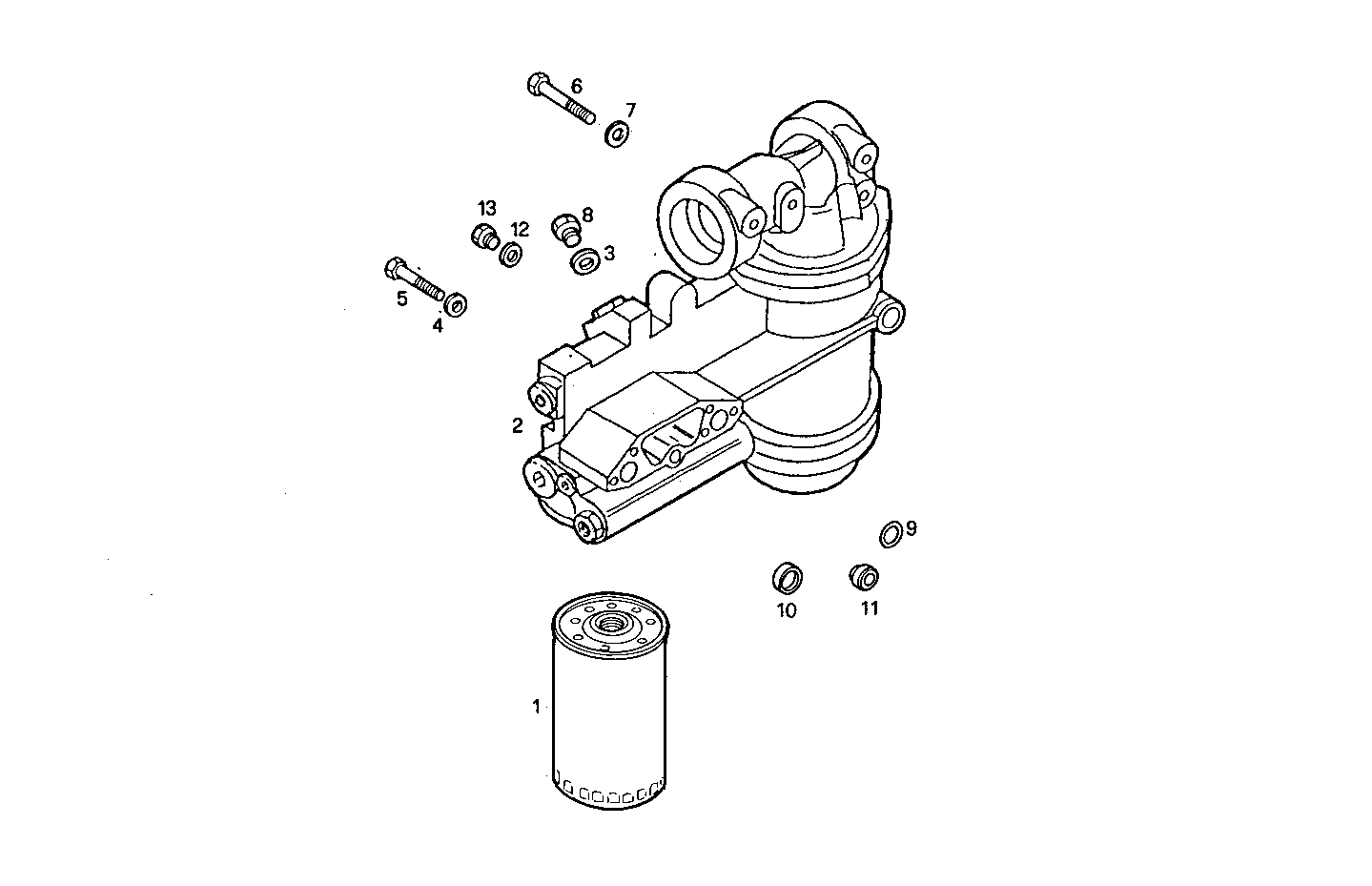

3100.044/01 OIL - WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 1907584 | OIL FILTER CARTRIDGE |
| 2 | 99431269 | HEAT EXCHANGER ASSY |
| 3 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 4 | 12626024 | SPRING WASHER Ø10X21 MM SP=2 MM |
| 5 | 15972521 | HEXAGON BOLT M10X135 MM |
| 6 | 16045821 | HEXAGON BOLT M8X130 MM |
| 7 | 17094914 | WASHER 8x16 |
| 8 | 16994211 | LOCK PLUG M26X1,5 |
| 9 | 17282481 | O-RING Ø26,64 MM SP=2,62 MM |
| 10 | 98469591 | CENTERING BUSH |
| 11 | 4838502 | SEAL GASKET |
| 12 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 13 | 16992311 | LOCK PLUG M14X1,5 |
