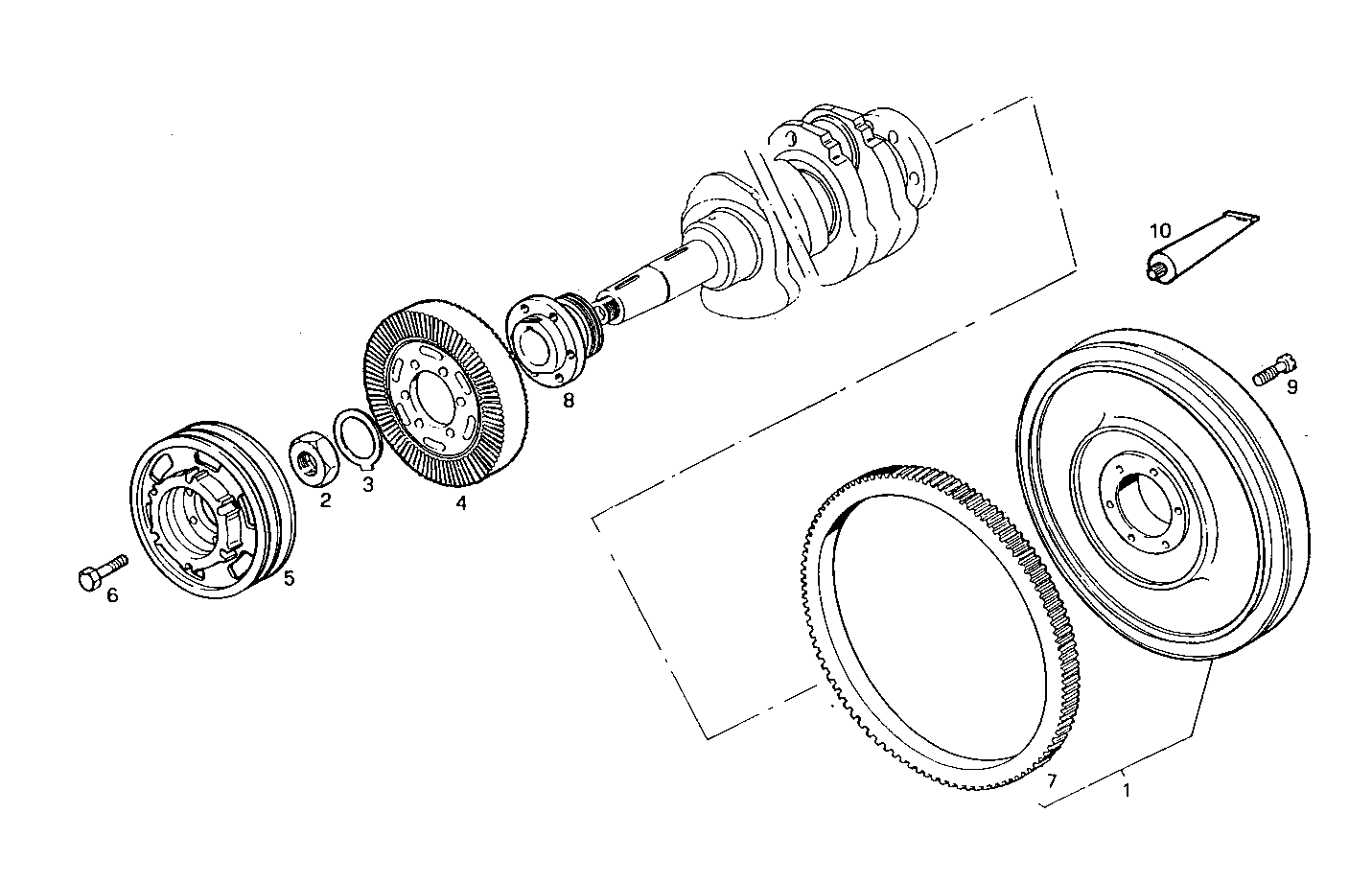

0830.123 ENGINE FLYWHEEL - DAMPER
| Item | Part number | Description |
|---|---|---|
| 1 | 8024768 | FLYWHEEL ASSY |
| 2 | 4607073 | NUT |
| 3 | 4607074 | CIRCLIP |
| 4 | 8018747 | VIBRATION DAMPER |
| 5 | 4807857 | PULLEY |
| 6 | 16326424 | SCREW M12X1,25X40 MM |
| 7 | 4651279 | RING GEAR |
| 8 | 4607072 | HUB |
| 9 | 500391539 | HEXAGON BOLT M16X1,5 |
| 10 | 1905684 | ADHESIVE/STICKER LOCTITE |
