8210SRi40.00

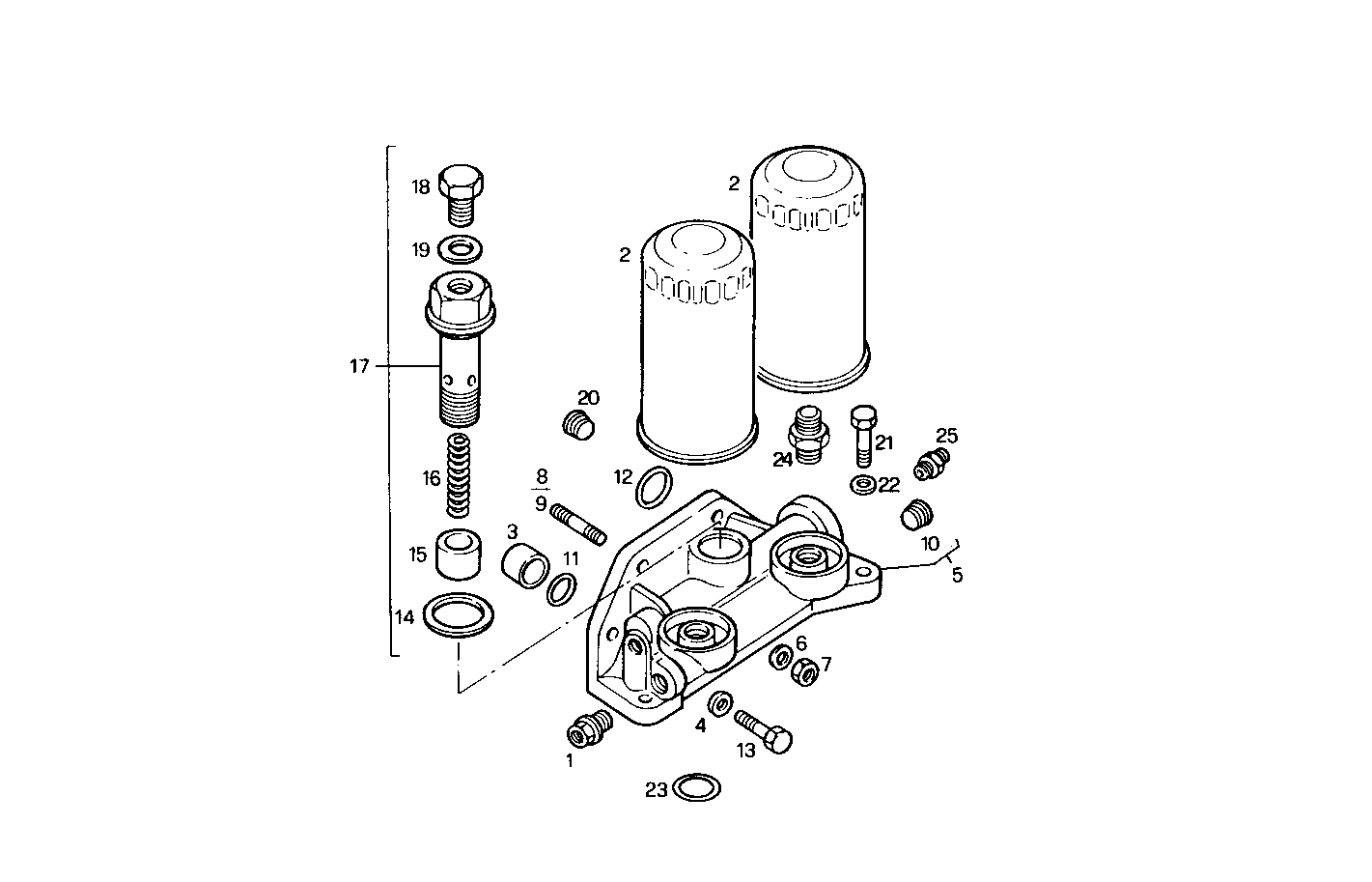

3020.060 OIL FILTERS
Item | Part number | Description |
---|---|---|
1 | 573251 | THREADED PLUG |
2 | 1903629 | OIL FILTER CARTRIDGE |
3 | 4538571 | CENTERING BUSH |
4 | 17090174 | SPRING WASHER Ø10X20 MM |
5 | 4851933 | OIL FILTER SUPPORT ASSY |
6 | 17095104 | WASHER Ø10X21X2 MM |
7 | 17038221 | HEXAGON NUT M10 |
8 | 13449730 | STUD M10X15X30 MM |
9 | 13449931 | STUD |
10 | 10268450 | LOCK PLUG M20X1,5 |
11 | 17282581 | O-RING Ø28,24 MM SP=2,62 MM |
12 | 4838502 | SEAL GASKET |
13 | 15972821 | HEXAGON BOLT M10X150 MM |
14 | 4636458 | SEAL GASKET |
15 | 4636399 | VALVE |
16 | 4636397 | SPRING |
17 | 4649718 | OIL PUMP VALVE ASSY |
18 | 4649719 | SCREW CAP/PLUG |
19 | 10263460 | WASHER Ø22X28X1,5 MM |
20 | 14326150 | LOCK PLUG |
21 | 11306921 | SCREW M10X1,25X30 |
22 | 17090274 | WASHER Ø10X20 MM |
23 | 17282781 | O-RING Ø31,42 MM SP=2,62 MM |
24 | 4741301 | THREADED UNION ASSY |
25 | 10270150 | LOCK PLUG M24X1,5 |
