8210SRi40.00

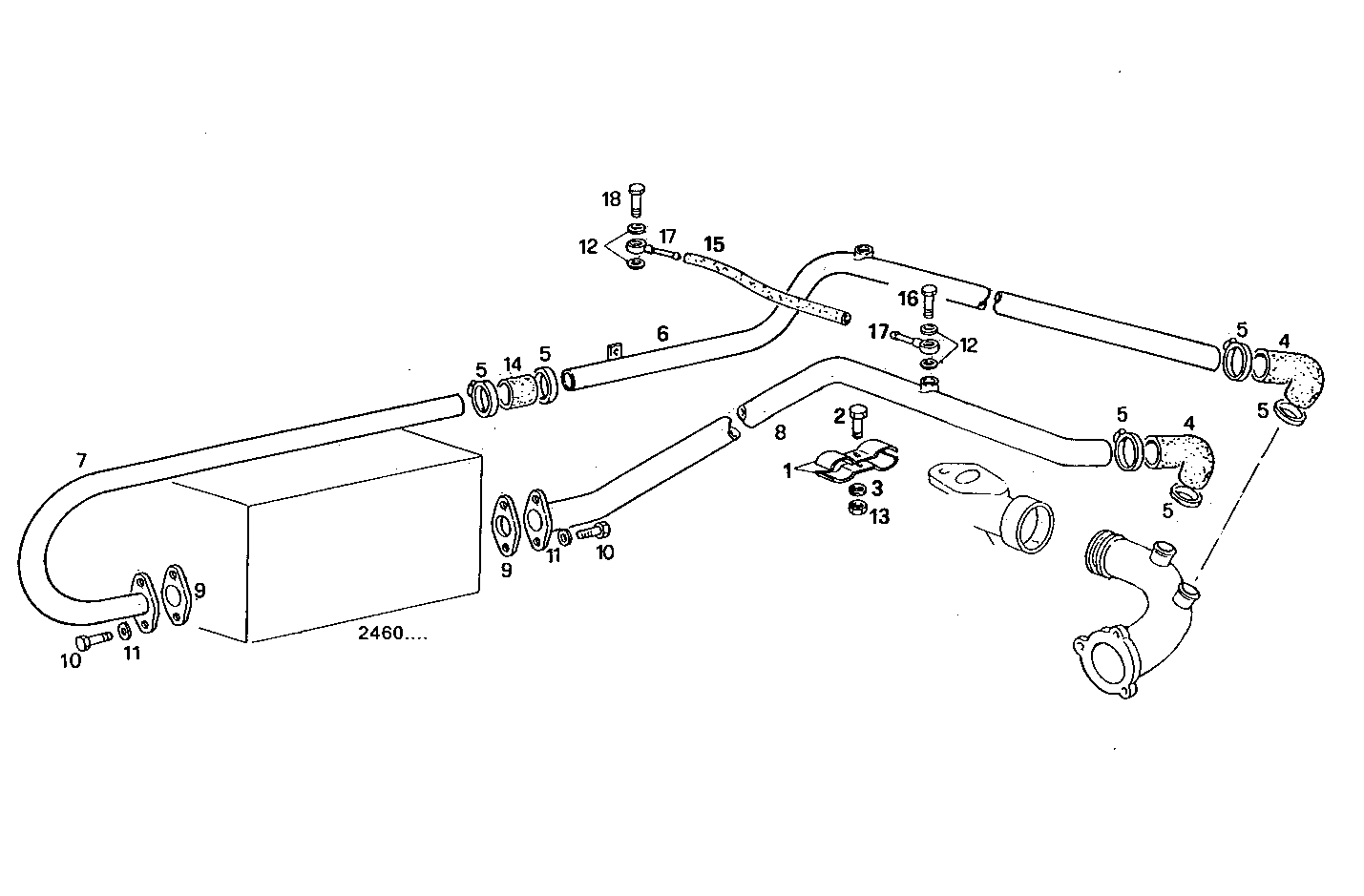

3210.206/04 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 4801128 RETAINER
2 16606024 SCREW M8X45 MM
3 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
4 4644083 WATER HOSE
5 17764891 CLIP Ø40/60 MM
6 8028033 WATER PIPE
7 8107267 WATER PIPE
8 8028032 WATER PIPE
9 8103540 GASKET
10 16609824 HEXAGON BOLT M12X1,75X25 MM
11 17091074 WASHER Ø12X24X2,8 MM
12 4858607 WASHER Ø12X17 MM SP=1,5 MM
13 17037931 HEXAGON NUT M8X1,25
14 98443283 TURBOCHARGER HOSE
15 8018769 FUEL LINE L=240 MM
16 8012607 SCREW CONNECTOR
17 98405514 PIPE SOCKET
18 4864082 BANJO BOLT M12X1,5X25 MM
