8210SRi40.00

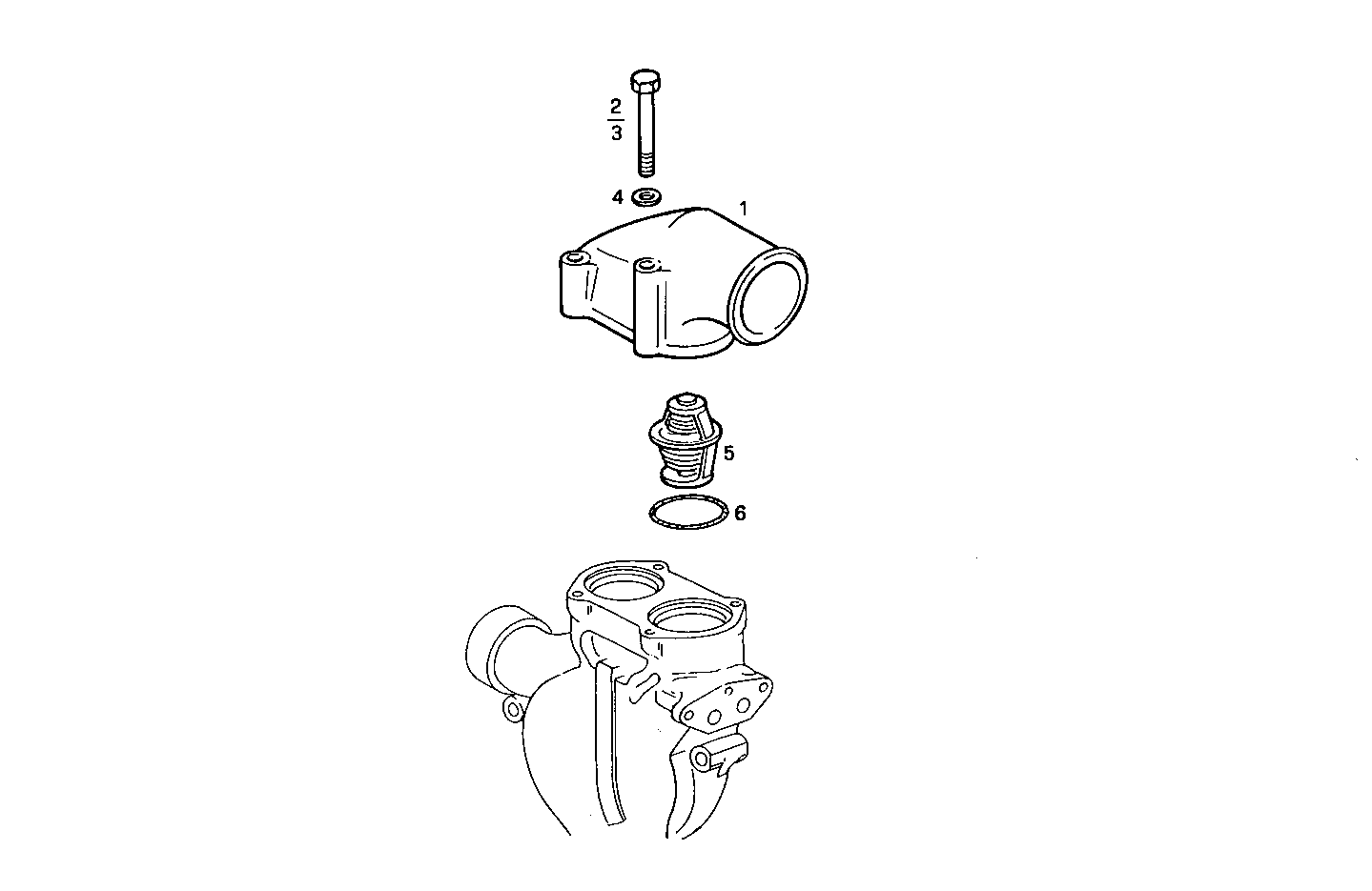

3220.082 THERMOSTAT
Item | Part number | Description |
---|---|---|
1 | 61318956 | COVER ASSY |
2 | 15971421 | HEXAGON BOLT M10X1,25X80 MM |
3 | 15888721 | HEXAGON BOLT M10X1,25X55 MM |
4 | 17095114 | WASHER Ø10X21 MM |
5 | 98439346 | THERMOSTAT |
6 | 98465113 | O-RING Ø60 MM |
