8210SRi40.00

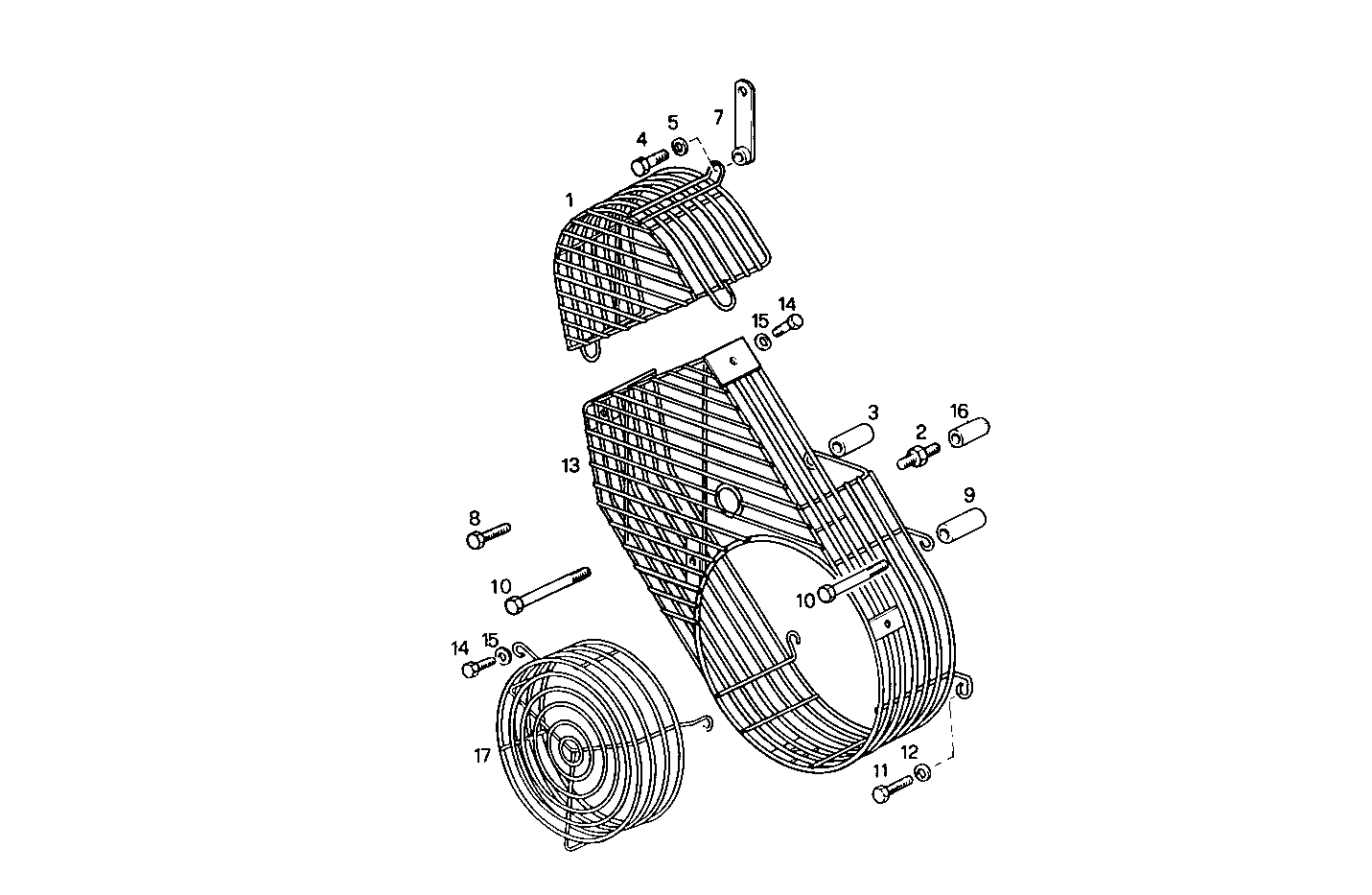

5770.015 SHIELDS
| Item | Part number | Description |
|---|---|---|
| 1 | 8010454 | PROTECTION [up to 12-94] |
| 2 | 4782501 | STUD L=165 MM |
| 3 | 8114378 | SPACING BAR |
| 4 | 16043321 | HEXAGON BOLT M8X18 MM |
| 5 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 7 | 4700693 | RETAINER [up to 12-94] |
| 8 | 11307021 | HEXAGON BOLT M10X40 MM |
| 9 | 4932695 | WASHER |
| 10 | 15972321 | HEXAGON BOLT M10X125 MM |
| 11 | 15540321 | HEXAGON BOLT M12X1,25X25 MM |
| 12 | 17091074 | WASHER Ø12X24X2,8 MM |
| 13 | 8005600 | PROTECTION [up to 12-94] |
| 14 | 16043124 | SCREW M8X14 MM |
| 16 | 4831069 | SPACING BAR |
| 17 | 8111821 | PROTECTION |
