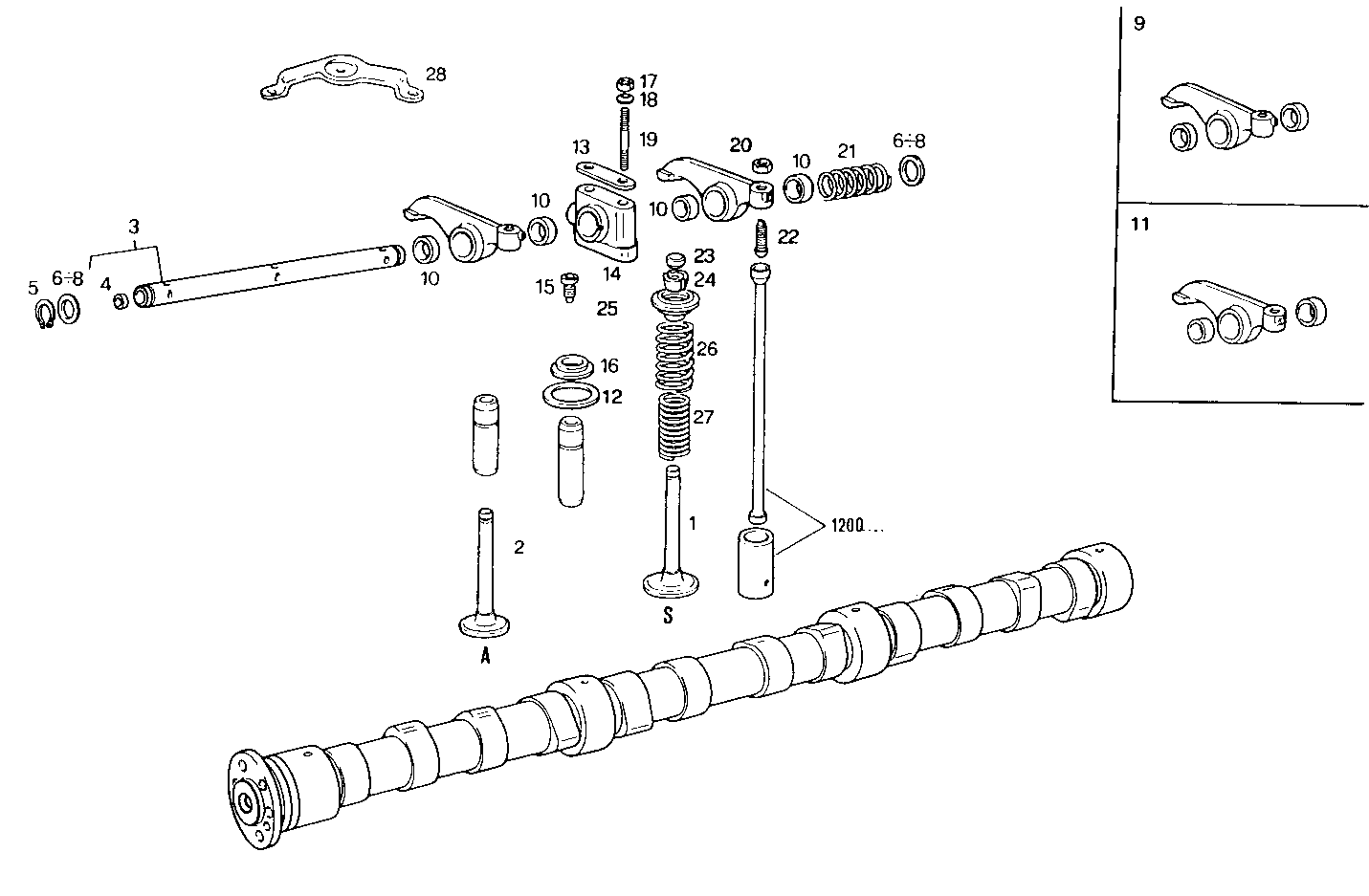

| Item |
Part number |
Description |
|
1 |
4673861 |
EXHAUST VALVE |
|
2 |
4673862 |
INLET VALVE |
|
3 |
4529770 |
ROCKER SHAFT ASSY |
|
4 |
14328521 |
PLUG Ø16 MM |
|
5 |
11067376 |
CIRCLIP Ø25 MM |
|
6 |
4544152 |
SHIM SP=1,5 MM |
|
7 |
4544153 |
SHIM SP=0,2 MM |
|
8 |
4544154 |
SHIM SP=2,5 MM |
|
9 |
4609215 |
ROCKER ARM ASSY [up to 403010] |
|
10 |
4544093 |
BUSH [up to 403010] |
|
11 |
4609214 |
ROCKER ARM ASSY [up to 403010] |
|
12 |
4553278 |
WASHER [up to 298108] |
|
13 |
4546228 |
STOP PLATE |
|
14 |
4613536 |
ROCKER BRACKET |
|
15 |
4526961 |
CYLIND-HEAD SCREW |
|
16 |
4529809 |
SPRING CAP [up to 298108] |
|
17 |
17038221 |
HEXAGON NUT M10 |
|
18 |
11198371 |
SPRING WASHER Ø10X20 MM |
|
19 |
13450530 |
STUD M10X15X70 MM |
|
20 |
4579263 |
HEXAGON NUT [up to 298108] |
|
21 |
604369 |
SPRING |
|
22 |
4804462 |
ROCKER ARM SCREW [up to 298108] |
|
23 |
4618680 |
VALVE CAP [up to 298108] |
|
24 |
14196470 |
VALVE CONE Ø10,8 MM |
|
25 |
4628568 |
SPRING CAP [up to 298108] |
|
26 |
4781222 |
ENGINE VALV.SPRING OUTER |
|
27 |
4781221 |
ENGINE VALV.SPRING INNER |
|
28 |
4786119 |
PROTECTION |
