8210SRM36.10

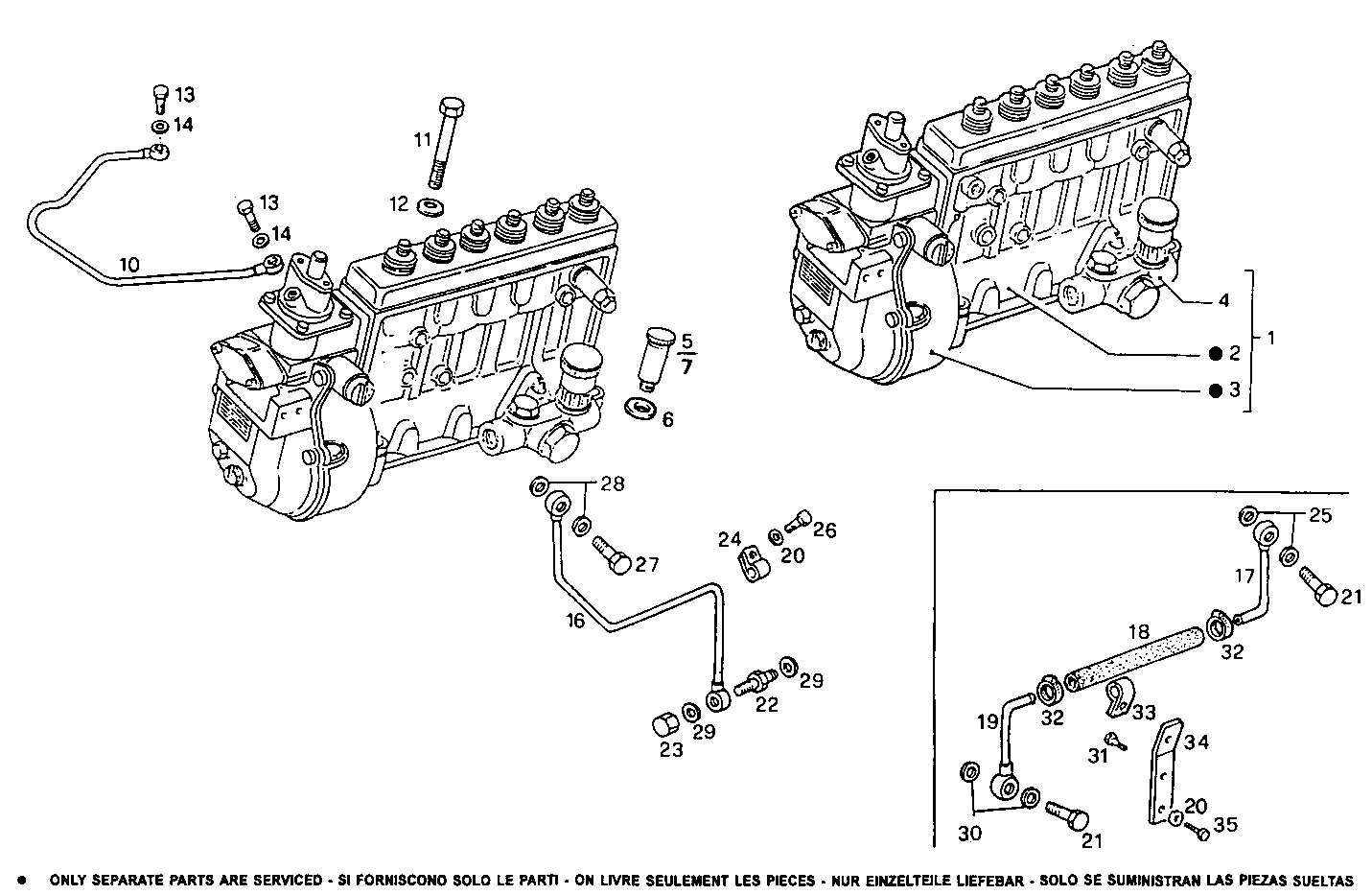

1400.043/01 INJECTION PUMP ASSY

Iveco/FPT INJECTION PUMP ASSY

Item Part number Description
1 8111556 INLINE INJECT.PUMP ASSY ALTECNA
4 774884 FUEL PUMP ASSY [up to ...]
5 772112 HAND PUMP [up to …]
6 772128 WASHER
7 8010206 HAND PUMP [from …]
10 8008383 AIR PIPE/DUCT
11 15971621 HEXAGON BOLT M10X1,25X90 MM
12 17090174 SPRING WASHER Ø10X20 MM
13 4864082 BANJO BOLT M12X1,5X25 MM
14 98474306 WASHER Ø12X20 MM SP=1,9 MM
16 8013632 OIL LINE
17 4645733 FUEL LINE
18 4640882 OIL HOSE
19 4645735 PIPE
20 11193874 WASHER Ø8X16 MM
21 4697153 SCREW CONNECTOR
22 61320123 SCREW CONNECTOR
23 11902117 PLUG M10X1,25
24 4637897 FASTENING BRACKET
25 10280060 WASHER Ø14X20 MM SP=1,5 MM
26 16043124 SCREW M8X14 MM
27 1390713 SCREW CONNECTOR M10X1
28 10298360 SEAL GASKET Ø10X16 MM SP=1 MM
29 10282460 SEAL GASKET Ø14X20 MM
31 16043021 HEXAGON BOLT M8X12 MM
32 12179490 CLIP Ø9-16 MM
33 10450190 PIPE CLIP Ø10 MM
34 4645737 FASTENING BRACKET
35 15004021 HEXAGON BOLT M10X1,25X25 MM
