8210SRM36.10

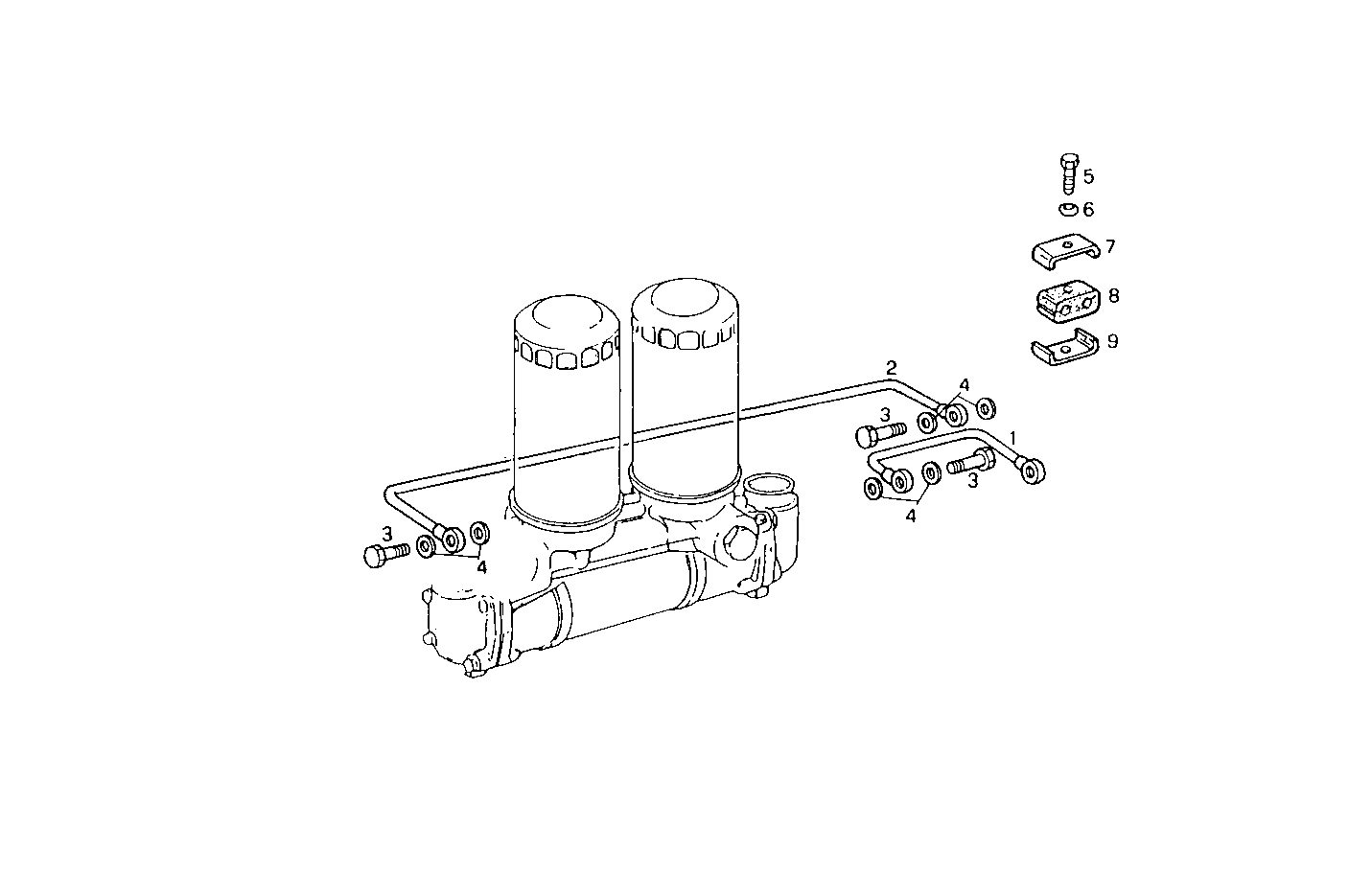

3010.028/03 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8013630 | FUEL LINE |
| 2 | 8013629 | OIL LINE |
| 3 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 4 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 5 | 10978021 | HEXAGON BOLT M5X20 MM |
| 6 | 14496301 | WASHER Ø5,4 MM |
| 7 | 4641874 | RETAINER TOP |
| 8 | 61585735 | RUBBER PAD |
| 9 | 4641873 | RETAINER BOTTOM |
