8210SRM36.10

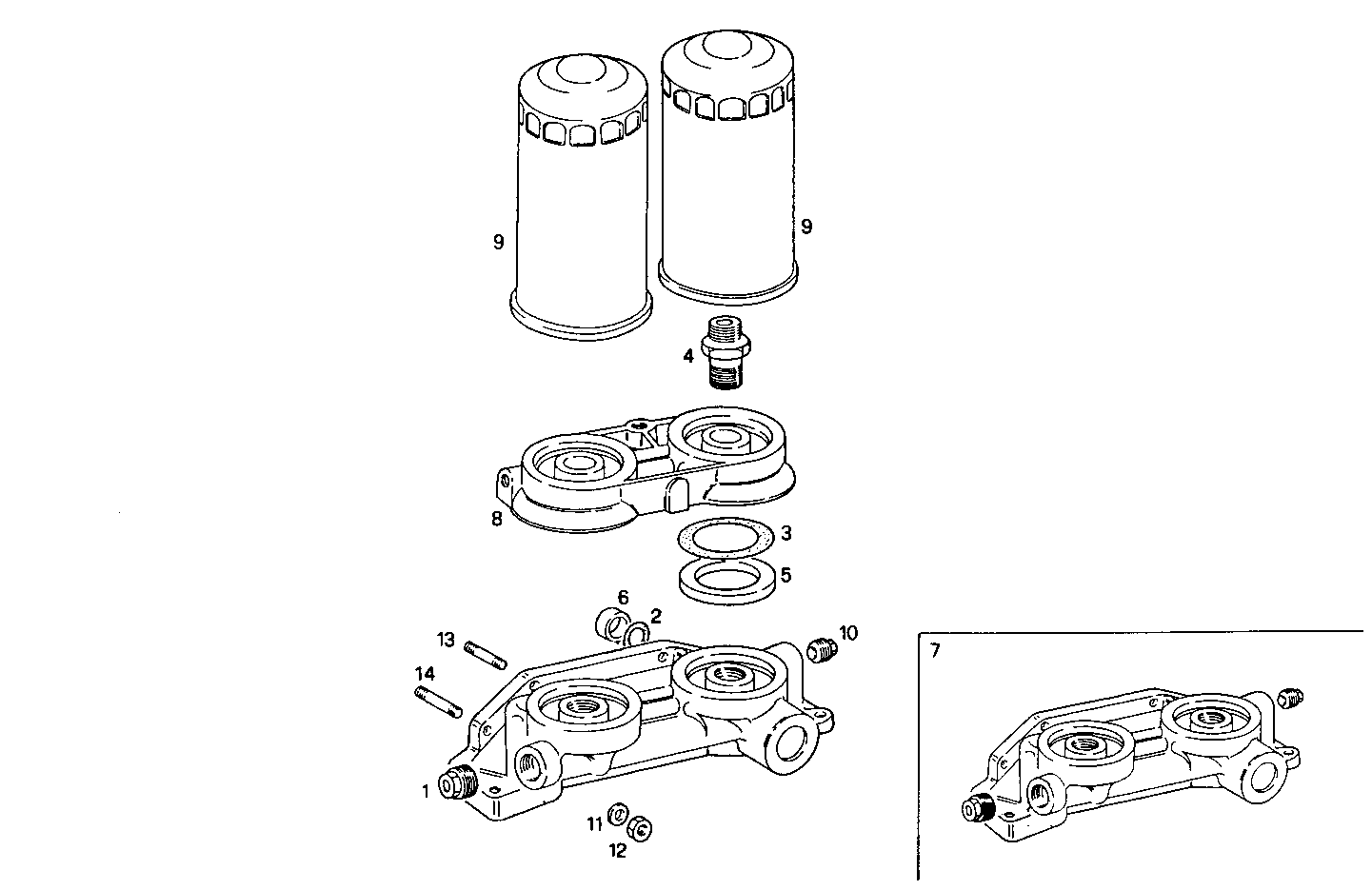

3020.000 OIL FILTERS
| Item | Part number | Description |
|---|---|---|
| 1 | 573251 | THREADED PLUG |
| 2 | 17282581 | O-RING Ø28,24 MM SP=2,62 MM |
| 3 | 14460581 | O-RING Ø67,94 MM SP=2,62 MM |
| 4 | 4787737 | PIPE SOCKET |
| 5 | 8109582 | STOP WASHER |
| 6 | 4538571 | CENTERING BUSH |
| 7 | 4984991 | SUPPORT ASSY |
| 8 | 8109903 | SUPPORT |
| 9 | 1902102 | OIL FILTER CARTRIDGE |
| 10 | 14323811 | LOCK PLUG Ø20 MM SP=1,5 MM |
| 11 | 11198379 | SPRING WASHER Ø10X20 MM SP=2,6 |
| 12 | 17038221 | HEXAGON NUT M10 |
| 13 | 13449830 | STUD M10X1,25X35 MM |
| 14 | 13449730 | STUD M10X15X30 MM |
