8210SRM36.10

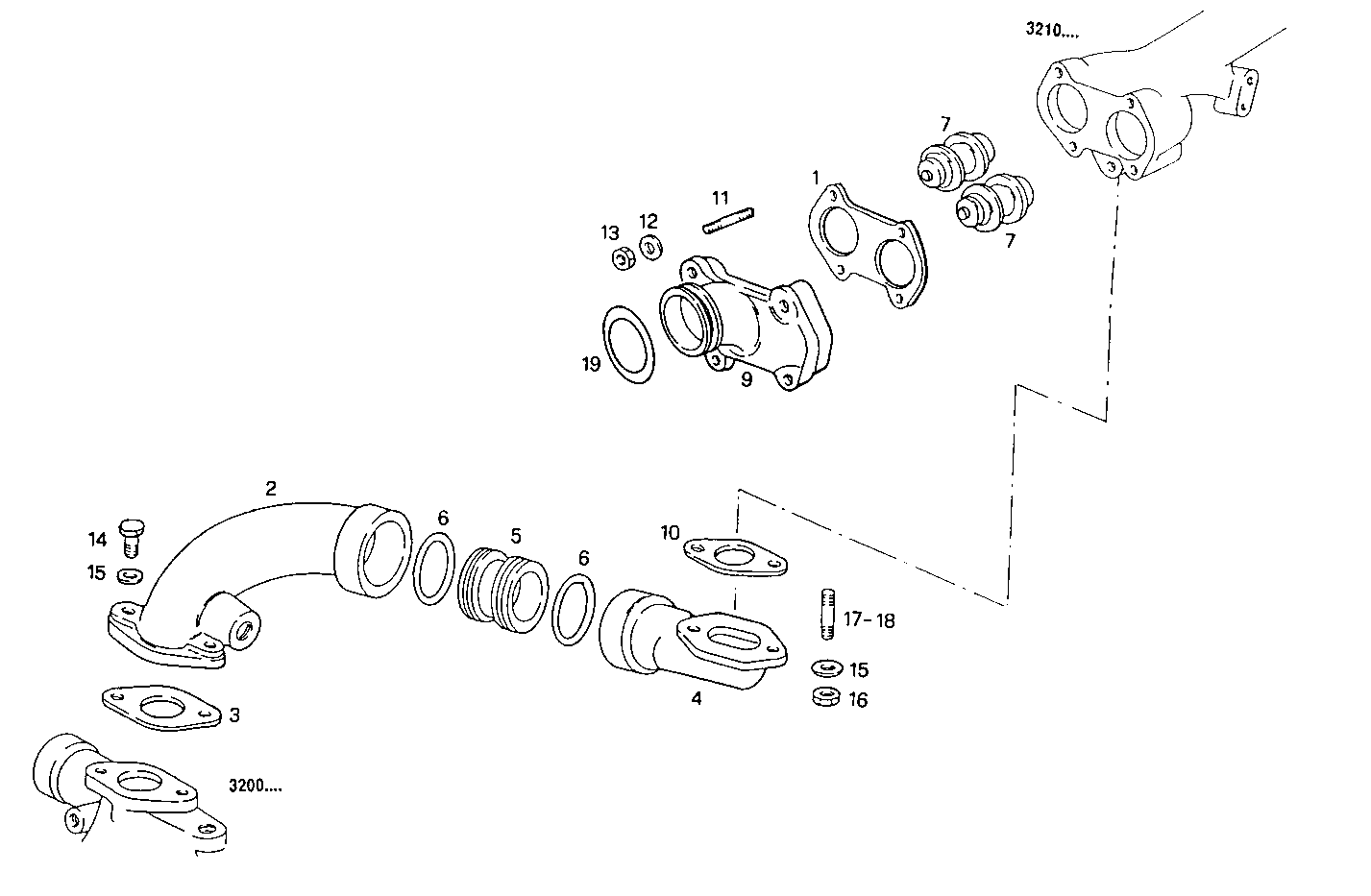

3220.000 THERMOSTAT
| Item | Part number | Description |
|---|---|---|
| 1 | 4677588 | FLAT ENGINE GASKET |
| 2 | 4799656 | CONNECTOR SLEEVE |
| 3 | 61315550 | FLAT ENGINE GASKET |
| 4 | 4799654 | CONNECTOR SLEEVE |
| 5 | 4799655 | CONNECTOR SLEEVE |
| 6 | 14471181 | O-RING Ø46,99x5,33 MM |
| 7 | 8110948 | THERMOSTAT |
| 9 | 8007286 | COVER |
| 10 | 4864029 | FLAT ENGINE GASKET |
| 11 | 13546621 | STUD M10X1,25X20X35 MM |
| 12 | 12646801 | WASHER Ø10,2 MM |
| 13 | 17038221 | HEXAGON NUT M10 |
| 14 | 16044121 | HEXAGON BOLT M8X45 MM (8.8) |
| 15 | 17094914 | WASHER 8x16 |
| 16 | 17037931 | HEXAGON NUT M8X1,25 |
| 17 | 12354521 | STUD M8X16X22 |
| 18 | 13544121 | STUD M8X16X55 MM |
| 19 | 17290181 | O-RING Ø59,92 MM SP=3,53 MM |
