8210SRM36.11

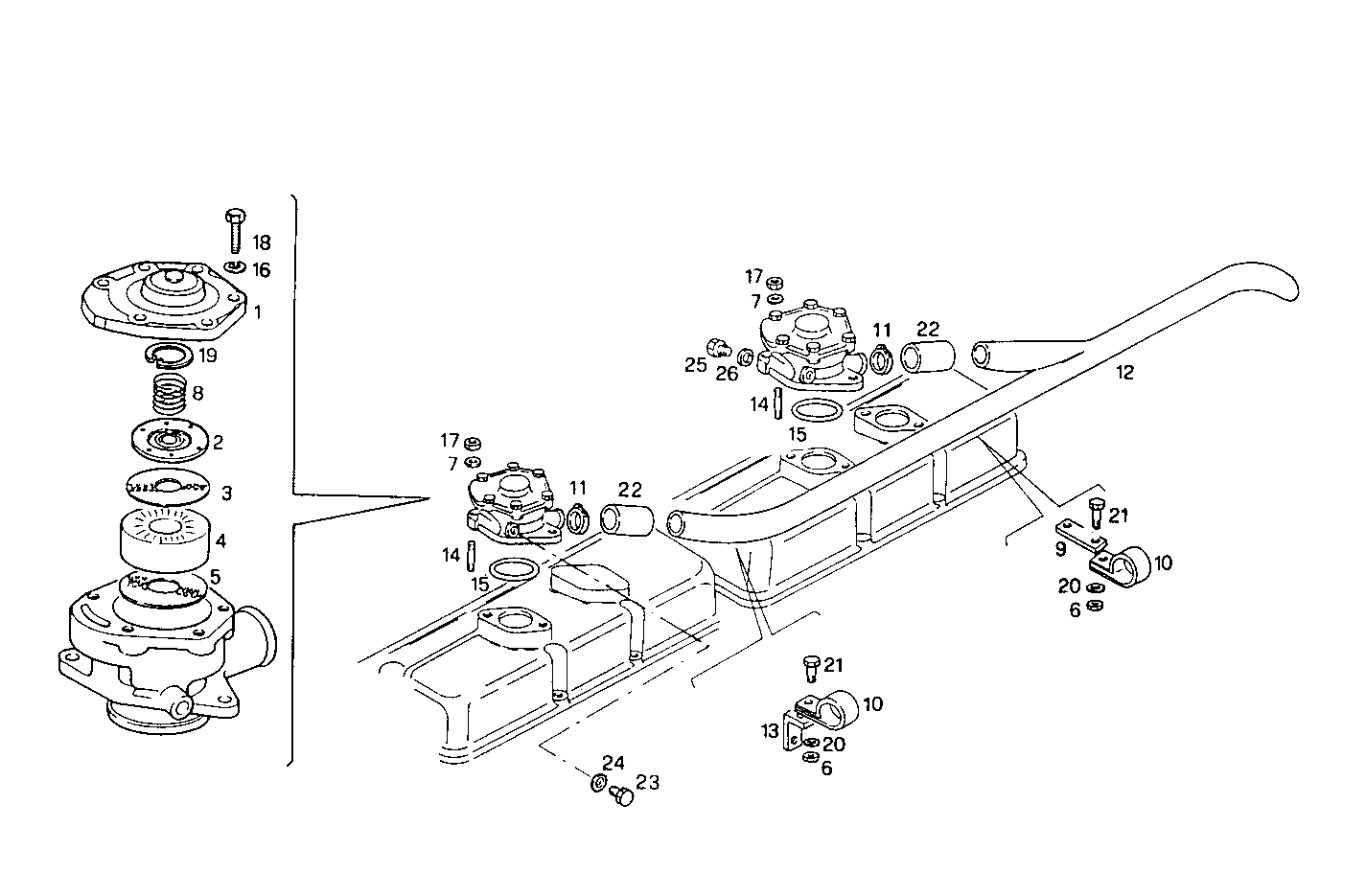

0450.020 ENGINE BREATHERS
Item | Part number | Description |
---|---|---|
1 | 4771075 | COVER |
2 | 4771078 | DIAPHRAGM |
3 | 4771080 | DISC |
4 | 4771079 | FILTER |
5 | 4771081 | DISC |
6 | 17037931 | HEXAGON NUT M8X1,25 |
7 | 12646704 | WASHER Ø8X21X1,5 MM |
8 | 4812557 | SPRING |
9 | 4930333 | RETAINER |
10 | 4842335 | RETAINER |
11 | 17764693 | CLIP Ø25/40 MM |
12 | 8110748 | BREATHER PIPE |
13 | 8111937 | RETAINER |
14 | 13543321 | STUD M8X16X20 MM |
15 | 17289681 | O-RING Ø44 MM SP=3,53 MM |
16 | 17094701 | WASHER Ø6X12 MM |
18 | 16603924 | HEXAGON BOLT M6X30 MM |
19 | 11062176 | CIRCLIP Ø90,5 MM |
20 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
21 | 16043421 | HEXAGON BOLT M8X20 MM |
22 | 17741087 | RUBBER SLEEVE |
23 | 11903111 | LOCK PLUG M10X1,25 |
24 | 10296360 | GASKET Ø10X14X1 MM |
25 | 11902117 | PLUG M10X1,25 |
26 | 10290160 | GASKET |
