8210SRM36.11

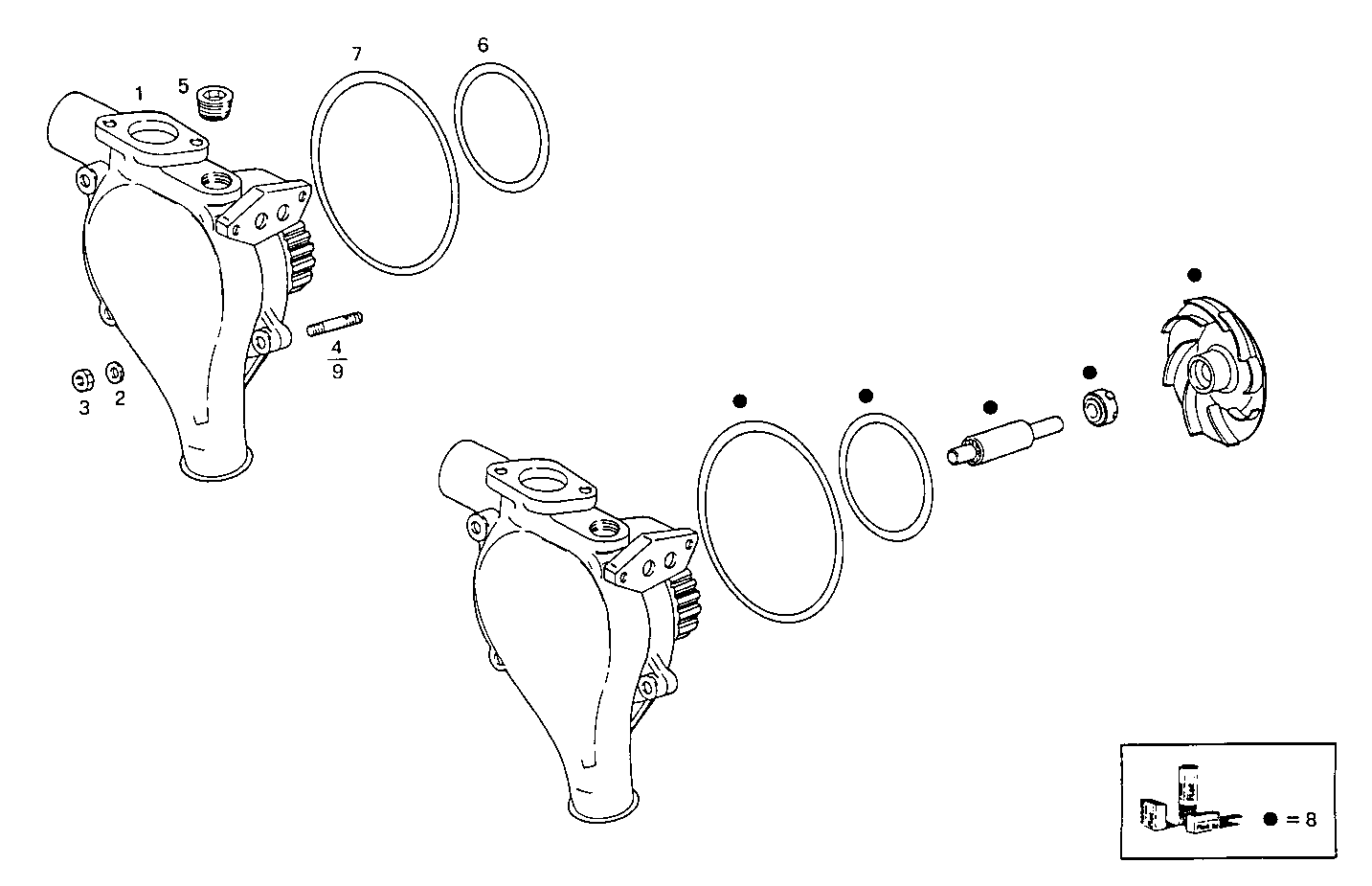

3200.000 WATER PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 4808471 | WATER PUMP ASSY |
| 2 | 17090174 | SPRING WASHER Ø10X20 MM |
| 3 | 17038221 | HEXAGON NUT M10 |
| 4 | 13453721 | STUD M10X25X30 |
| 5 | 16997511 | THREADED PLUG M18X1,5 [up to 672796] |
| 6 | 14460781 | O-RING Ø71,12 MM SP=2,62 MM |
| 7 | 14461680 | O-RING Ø2,62X120,32 MM |
| 8 | 42530032 | WATER PUMP |
| 9 | 13450621 | STUD |
