8210SRM36.11

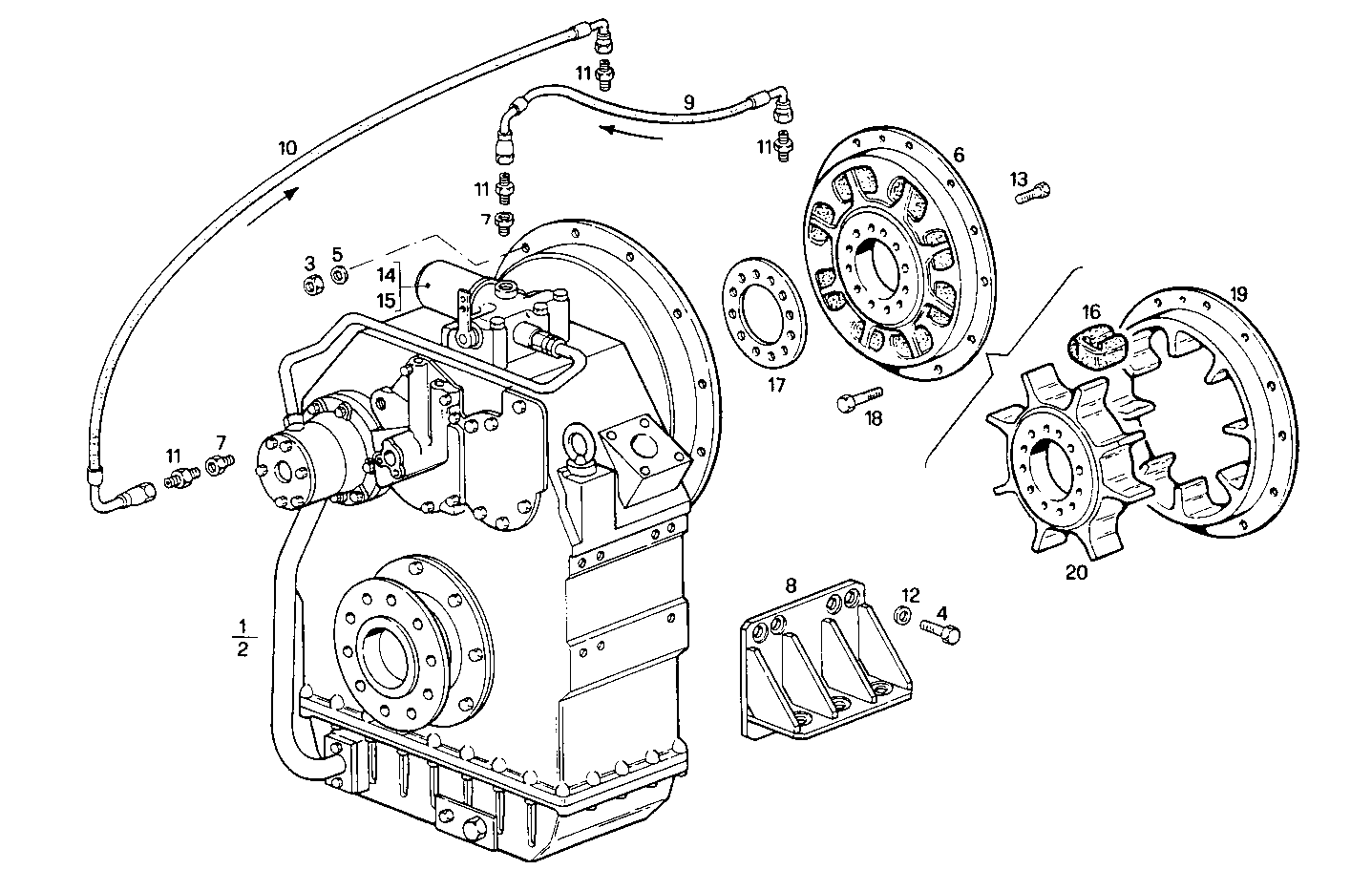

A51870005/01 MARINE GEAR ZF-MPM IRM 350 - ratio 4.960:1

Iveco/FPT MARINE GEAR ZF-MPM IRM 350

Item Part number Description
1 8005128 MARINE GEAR 4,960:1
2 8110429 FLEXIBLE COUPLING
3 12164711 HEXAGON NUT M10X1,25
4 4932875 SCREW M16X2X45
5 11190571 SPRING WASHER Ø10X20 MM SP=2,3
6 8110990 FLEXIBLE COUPLING
7 4933508 PIPE SOCKET
8 8110996 SUPPORT
9 8105620 HOSE
10 8105226 HOSE
11 4932262 PIPE SOCKET
12 11194279 SPRING WASHER Ø17,4 MM
13 14255031 SCREW M14X1,5X60
14 8007794 OIL FILTER CARTRIDGE ALTERNATIVE USE
15 8007795 OIL FILTER CARTRIDGE ALTERNATIVE USE
16 4930911 RUBBER PAD
17 4936733 SUPPORT RING
18 14274521 SCREW M12X1,25X30
19 4930912 FLEXPLATE
