8210SRM36.12

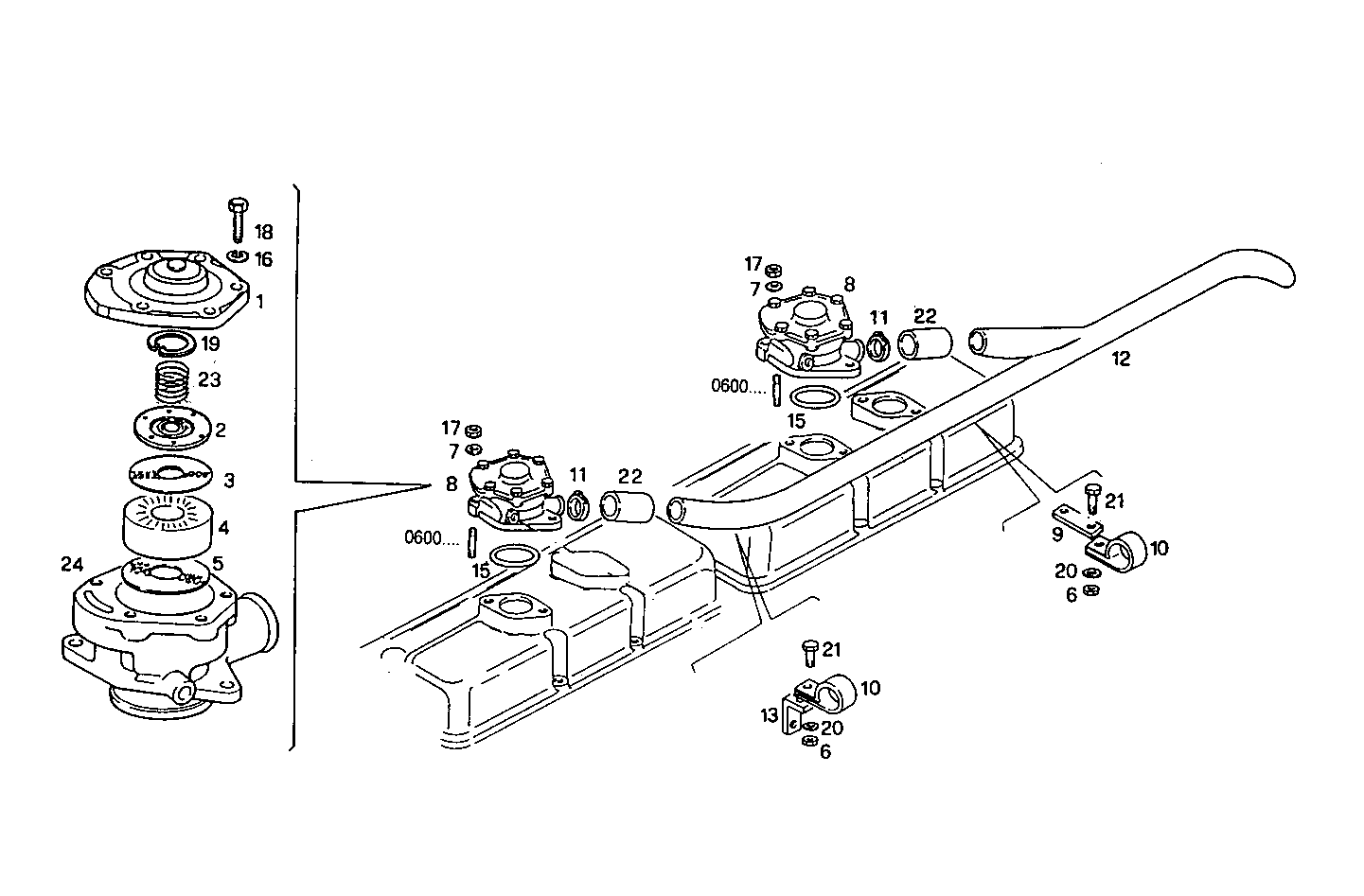

0450.171 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 4771075 | COVER |
| 2 | 4771078 | DIAPHRAGM |
| 3 | 4771080 | DISC |
| 4 | 4771079 | FILTER |
| 5 | 4771081 | DISC |
| 6 | 17037931 | HEXAGON NUT M8X1,25 |
| 7 | 12646704 | WASHER Ø8X21X1,5 MM |
| 8 | 8031826 | BREATHER ASSY |
| 9 | 4930333 | RETAINER |
| 10 | 4842335 | RETAINER |
| 11 | 17764693 | CLIP Ø25/40 MM |
| 12 | 8110748 | BREATHER PIPE |
| 13 | 8111937 | RETAINER |
| 15 | 17289681 | O-RING Ø44 MM SP=3,53 MM |
| 16 | 17094724 | WASHER Ø6X12 MM |
| 18 | 16603924 | HEXAGON BOLT M6X30 MM |
| 19 | 16874976 | CIRCLIP Ø90,5 MM |
| 20 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 21 | 16605524 | HEXAGON BOLT M8X20 MM |
| 22 | 17741087 | RUBBER SLEEVE |
| 23 | 4812557 | SPRING |
| 24 | 4771073 | BEARING HOUSING |
