8210SRM36.12

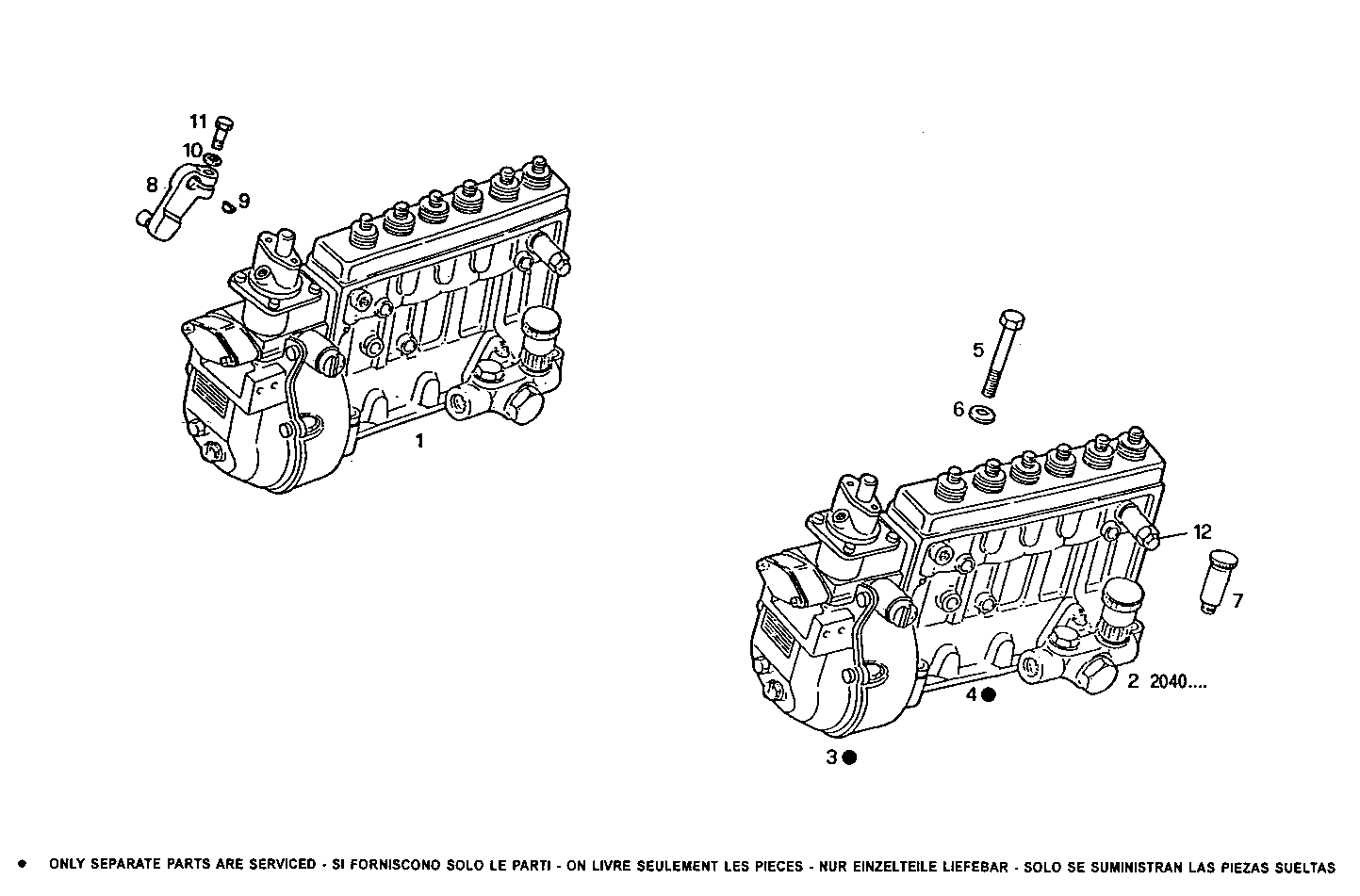

1400.157/01 INJECTION PUMP ASSY
Item | Part number | Description |
---|---|---|
1 | 8021138 | INLINE INJECT.PUMP ASSY |
2 | 8121438 | FUEL PUMP ASSY BOSCH |
5 | 15971621 | HEXAGON BOLT M10X1,25X90 MM |
6 | 17090174 | SPRING WASHER Ø10X20 MM |
7 | 8010206 | HAND PUMP [from …] |
8 | 8108826 | LEVER |
9 | 8101048 | KEY 3X5X12,5 |
10 | 17496434 | WASHER Ø5X18X0,8 MM |
11 | 16602124 | SCREW M5X16 MM |
12 | 8194141 | VALVE |
