8210SRM36.12

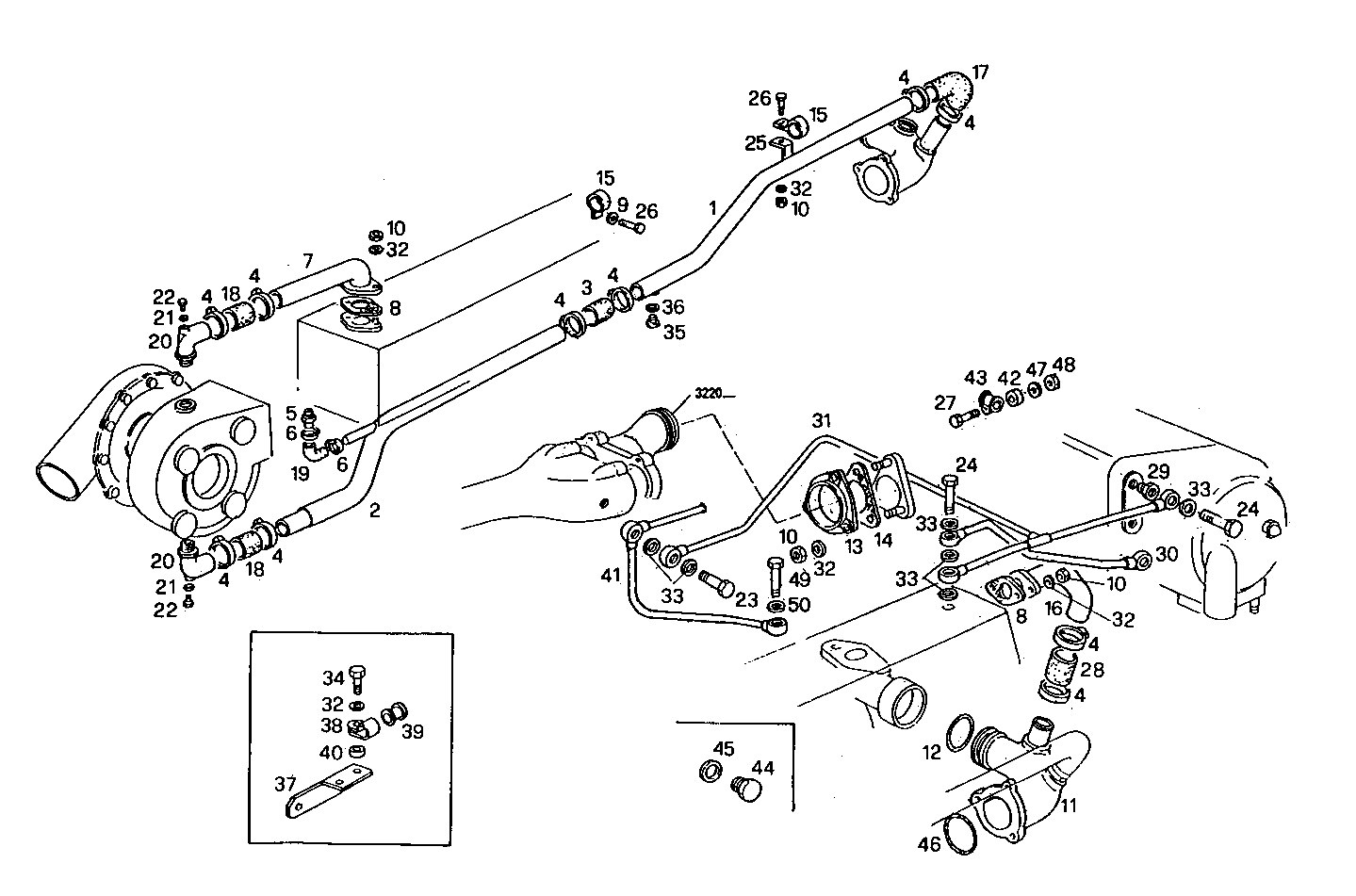

3210.299 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8110620 WATER PIPE
2 8110621 WATER PIPE
3 8110617 RUBBER SLEEVE
4 17764792 HOSE CLIP Ø32-50 MM
5 8114298 PIPE SOCKET [up to 15-12-03]
5 8024797 PIPE SOCKET M30X1,5
6 17764593 CLIP Ø20/32 MM
6 17764693 CLIP Ø25/40 MM
7 8109301 WATER PIPE
8 4918835 GASKET
9 11194079 SPRING WASHER Ø8X16 MM SP=1,9 MM
10 17037931 HEXAGON NUT M8X1,25
11 8110718 WATER PIPE
12 17290181 O-RING Ø59,92 MM SP=3,53 MM
13 8007275 FLANGE
14 4533087 FLAT ENGINE GASKET
15 4928851 CLIP
16 8110631 WATER PIPE
17 8110497 CONNECTOR SLEEVE
18 4778438 RUBBER SLEEVE WATER
19 99452230 RUBBER SLEEVE Ø50 MM
19 98420478 RUBBER SLEEVE
20 8110480 PIPE SOCKET
21 4858606 GASKET Ø10X14X1 MM
22 11903140 PLUG M10X1,25
23 4864082 BANJO BOLT M12X1,5X25 MM
24 4930504 SCREW CONNECTOR
25 8100819 RETAINER
26 16605524 HEXAGON BOLT M8X20 MM
27 16603924 HEXAGON BOLT M6X30 MM
28 17742887 RUBBER SLEEVE
29 8009696 SCREW CONNECTOR M12X1,5X25
30 8013628 WATER PIPE
31 8013627 WATER PIPE
32 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
33 98474306 WASHER Ø12X20 MM SP=1,9 MM
34 16605624 HEXAGON BOLT M8X25 MM (8.8)
35 10300511 LOCK PLUG M12X1,5
36 10296160 SEAL GASKET Ø12X18 MM SP=1 MM
37 98428903 PLATE
38 4810359 HOSE CLIP
39 4565875 RUBBER PAD
40 13605811 SPACER SP=1,5 MM
41 4865219 WATER PIPE
42 17814714 SPACER
43 17316390 CLIP
44 10300940 PLUG M8
45 4858605 WASHER Ø8X12 MM
46 17296181 O-RING Ø59,69X5,33 MM
47 17088474 WASHER Ø6X12 MM
48 17037821 HEXAGON NUT M6X1
49 4864080 SCREW CONNECTOR M10X1,25
50 98474305 WASHER Ø10X17 MM SP=2,3
