8210SRM36.12

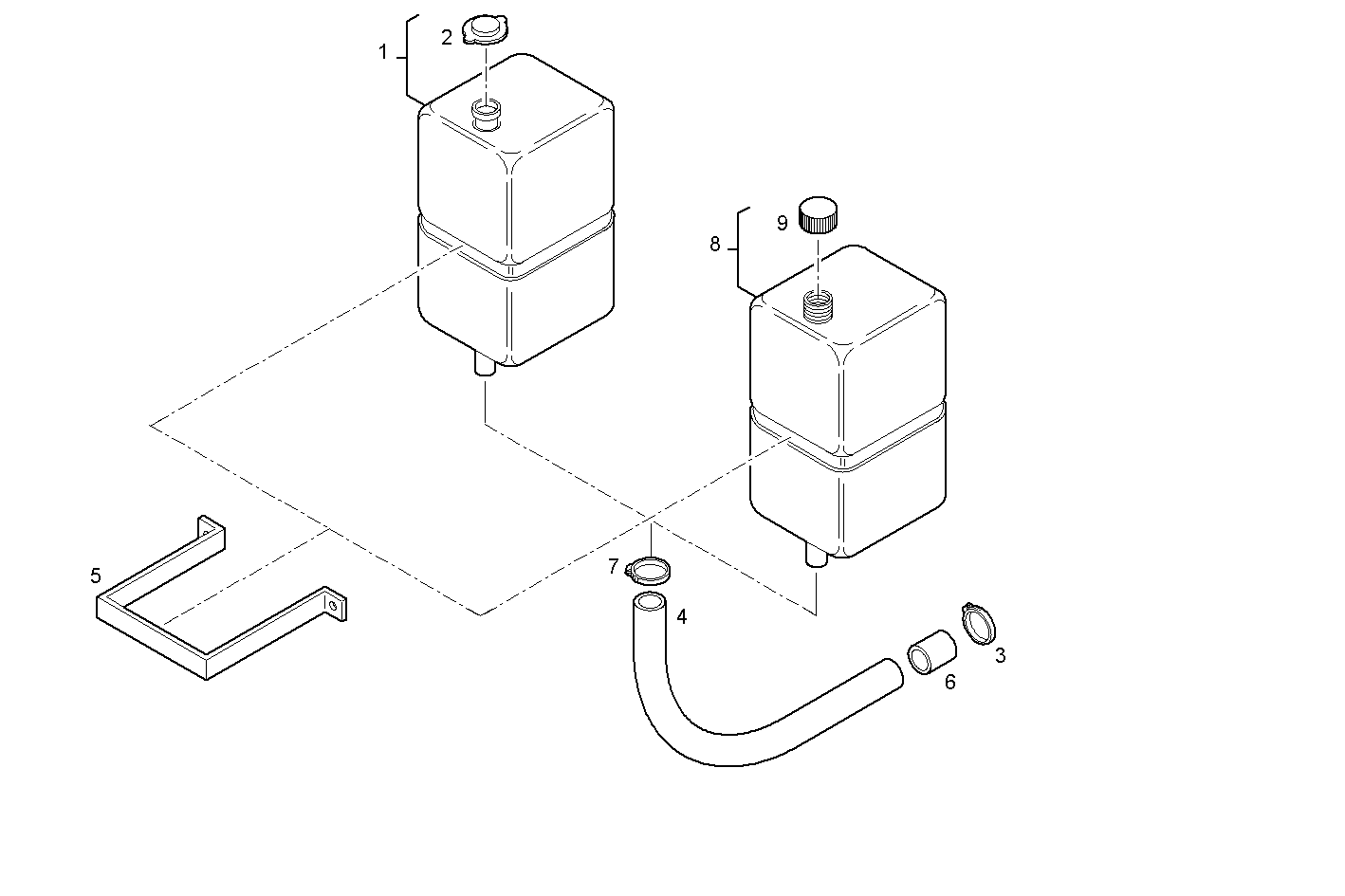

3290.006 EXPANSION TANK
Item | Part number | Description |
---|---|---|
1 | 4933308 | WATER EXPANSION TANK ASSY |
2 | 4274033 | PLUG |
3 | 17764593 | CLIP Ø20/32 MM |
4 | 4933239 | WATER HOSE |
5 | 4933297 | RETAINER |
6 | 98434883 | WATER HOSE [up to ...] |
7 | 17764393 | CLIP Ø12/20 MM |
8 | 8052875 | WATER EXPANSION TANK ASSY |
