8210SRM36.12

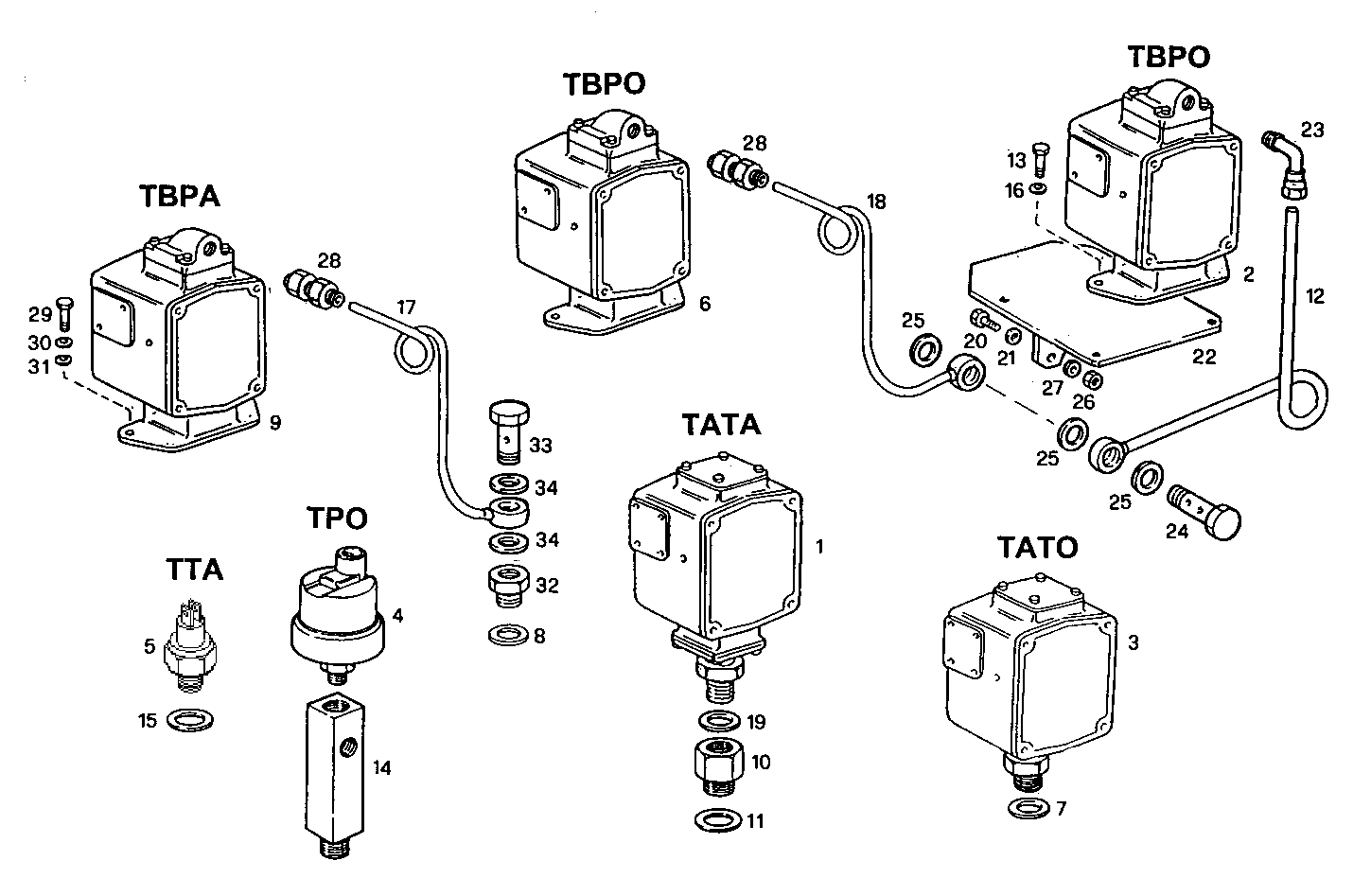

A16020006/01 SENDER UNITS FOR GENERATOR UNIT - with R.I.N.A. I.A.Q. test

Iveco/FPT SENDER UNITS FOR GENERATOR UNIT

Item Part number Description
1 8110740 TRANSMITTER TATA
2 8111452 TRANSMITTER
3 8111450 TRANSMITTER TATO
4 8100417 TRANSMITTER TPO
5 8100418 TRANSMITTER TTA
6 8111451 TRANSMITTER TBPO
7 11271460 GASKET Ø21X26X1,5 MM
8 4858609 WASHER Ø16X22 MM SP=1,5 MM
9 8015707 TRANSMITTER TBPA
10 8021213 PIPE SOCKET
11 98429281 SEAL GASKET Ø24X31 MM SP=1,5 MM
12 8023724 OIL LINE
13 17133314 SCREW M6X20
14 4929576 PIPE SOCKET
15 4858608 SEAL GASKET dia.14x19,5x1,5
16 17088474 WASHER Ø6X12 MM
17 8024485 WATER PIPE
18 8023725 OIL LINE
20 15214224 SCREW M8x1,25x85
21 17094904 WASHER Ø8X16X1,6 MM
22 8111439 RETAINER
23 8111261 PIPE SOCKET Ø1/8'' MM
24 8016191 BANJO BOLT M12X1,5
25 4858607 WASHER Ø12X17 MM SP=1,5 MM
26 17037931 HEXAGON NUT M8X1,25
27 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
28 8111316 PIPE SOCKET
29 16688624 CYLIND-HEAD SCREW M5x50
30 17094504 WASHER Ø5,3X10 MM
31 17494504 WASHER
32 4935023 PIPE SOCKET M16X1,5/M12X1,5
33 4864082 BANJO BOLT M12X1,5X25 MM
34 98474306 WASHER Ø12X20 MM SP=1,9 MM
