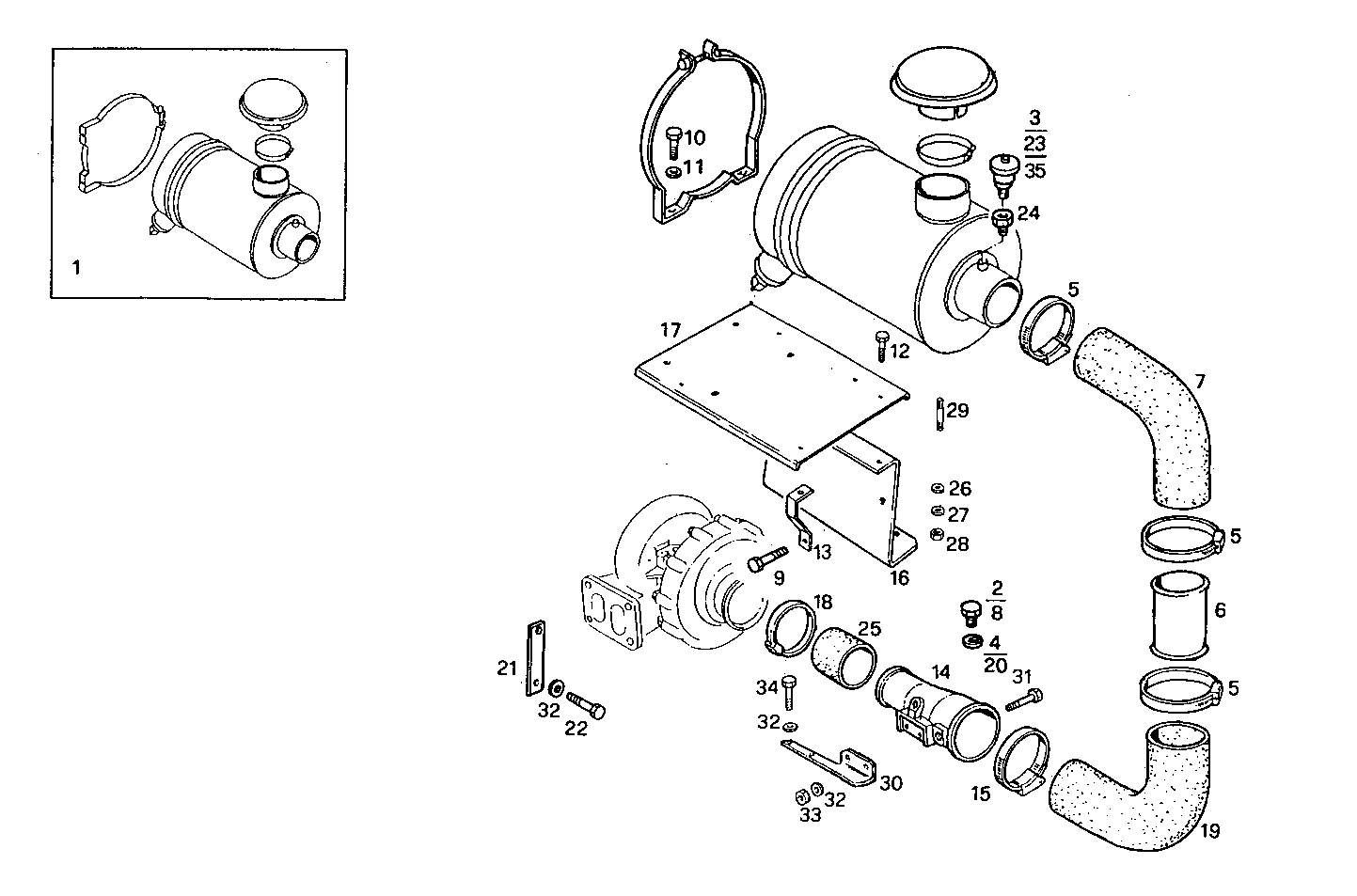

Item |
Part number |
Description |
1 |
8016974 |
AIR CLEANER OPT. |
2 |
16992711 |
PLUG M28X1,5 |
3 |
8016910 |
CHOCKED FILTER INDIC. OPT. [up to 11-98] |
4 |
10296260 |
SEAL GASKET Ø28X36 MM SP=1,5 MM |
5 |
17766093 |
CLIP Ø160/180 MM |
6 |
8113940 |
AIR PIPE/DUCT |
7 |
8113938 |
FILTER HOSE |
8 |
4598833 |
PLUG |
9 |
11391521 |
HEXAGON BOLT M16X45 MM |
10 |
16609824 |
HEXAGON BOLT M12X1,75X25 MM |
11 |
17091374 |
SPRING WASHER Ø12X30X3,0 MM |
12 |
15004021 |
HEXAGON BOLT M10X1,25X25 MM |
13 |
8114110 |
RETAINER |
14 |
4817877 |
AIR PIPE/DUCT [from 205659] |
15 |
17765793 |
CLIP Ø130/150 MM |
16 |
8114102 |
RETAINER |
17 |
8020076 |
SUPPORT |
18 |
8005839 |
CLIP |
19 |
8113939 |
FILTER HOSE |
20 |
98429280 |
SEAL GASKET Ø20X26 MM SP=1,5 MM |
21 |
8110710 |
RETAINER |
22 |
16605824 |
HEXAGON BOLT M8X35 MM |
23 |
8027423 |
CHOCKED FILTER INDIC. |
24 |
8009522 |
PIPE SOCKET |
25 |
8030531 |
TURBOCHARGER HOSE |
26 |
17095104 |
WASHER Ø10X21X2 MM |
27 |
17090174 |
SPRING WASHER Ø10X20 MM |
28 |
17038221 |
HEXAGON NUT M10 |
29 |
13449321 |
STUD M10X1,25X15X20 MM |
30 |
8113937 |
RETAINER |
31 |
16605734 |
HEXAGON BOLT M8X30 MM |
32 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
33 |
17037931 |
HEXAGON NUT M8X1,25 |
34 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
35 |
8022540 |
CHOCKED FILTER INDIC. MECHANICAL |
