8210SRM36.12

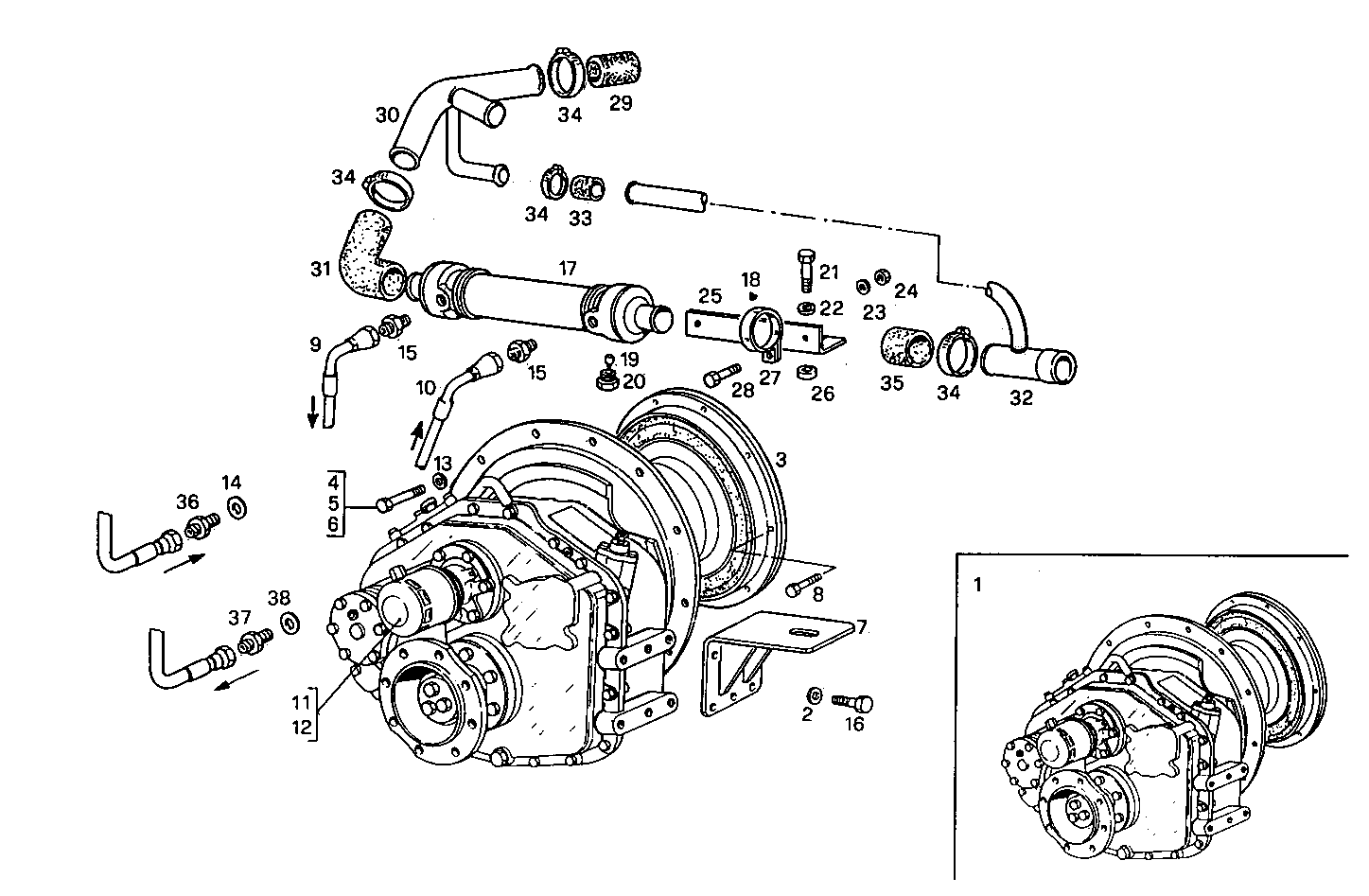

A51550008 MARINE GEAR ZF-MPM IRM 320 PL-1 - ratio 2.476:1

Iveco/FPT MARINE GEAR ZF-MPM IRM 320 PL-1

Item Part number Description
1 8023262 MARINE GEAR 2,476:1
2 11200279 SPRING WASHER Ø17 MM
3 8023060 FLEXIBLE COUPLING
4 11306921 SCREW M10X1,25X30
5 15970921 HEXAGON BOLT M10X1,25X35 MM
6 10923621 HEXAGON BOLT M10X1,25X35 MM
7 8108819 SUPPORT
8 14274421 LOCKING SCREW M8X60 MM
9 8105620 HOSE
10 8105226 HOSE
11 8111320 OIL FILTER CARTRIDGE
12 8111321 OIL FILTER CARTRIDGE
13 17090174 SPRING WASHER Ø10X20 MM
14 17271460 GASKET
15 4932262 PIPE SOCKET
16 4932875 SCREW M16X2X45
17 8109142 MARINE GEAR OIL HEAT EXCH ASSY
18 4565875 RUBBER PAD
19 8105277 SACRIFICAL ANODE Ø14 MM
20 8105276 PLUG M16
21 16607924 HEXAGON BOLT M10X1,5X40 MM
22 11190579 SPRING WASHER Ø10X20 MM SP=2,3
23 11198679 SPRING WASHER Ø13 MM
24 16101511 HEXAGON NUT M12X1,25
25 8105222 RETAINER
26 4932695 WASHER
27 8104042 CLIP
28 15540421 SCREW M12X1,25X30
29 8112176 RUBBER SLEEVE
30 8112191 WATER PIPE
31 8112192 RUBBER SLEEVE
32 8111659 WATER PIPE
33 8110724 RUBBER SLEEVE
34 17765093 CLIP Ø60/80 MM
35 4765112 RUBBER SLEEVE
36 8026716 PIPE SOCKET
37 8026676 PIPE SOCKET
38 10263460 WASHER Ø22X28X1,5 MM
