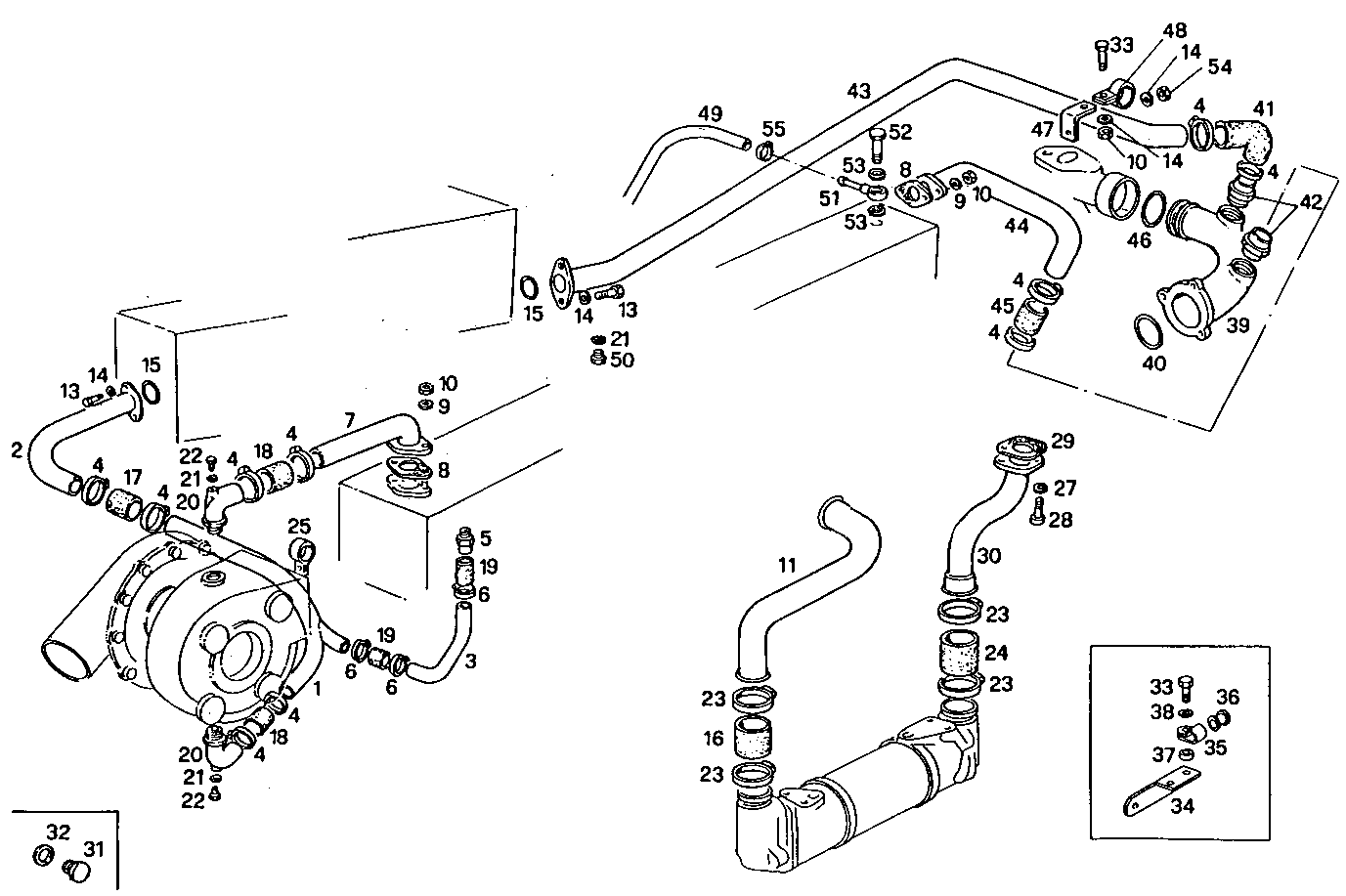

| Item |
Part number |
Description |
|
1 |
8113519 |
WATER PIPE |
|
2 |
8110611 |
WATER PIPE |
|
3 |
8113520 |
WATER PIPE |
|
4 |
17764793 |
CLIP Ø32/50 MM |
|
5 |
4633506 |
THREADED UNION M22X1,5 |
|
6 |
17764593 |
CLIP Ø20/32 MM |
|
7 |
8109301 |
WATER PIPE |
|
8 |
4918835 |
GASKET |
|
9 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
10 |
17037931 |
HEXAGON NUT M8X1,25 |
|
11 |
98428450 |
WATER PIPE |
|
13 |
11112221 |
HEXAGON BOLT M12X25 |
|
14 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
15 |
17289881 |
O-RING Ø50,3 MM SP=3,5 MM |
|
16 |
8110207 |
WATER HOSE |
|
17 |
8110617 |
RUBBER SLEEVE |
|
18 |
4778438 |
RUBBER SLEEVE WATER |
|
19 |
98420478 |
RUBBER SLEEVE |
|
20 |
8110480 |
PIPE SOCKET |
|
21 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
22 |
11903140 |
PLUG M10X1,25 |
|
23 |
17764993 |
CLIP Ø50/70 MM |
|
24 |
8110206 |
WATER HOSE |
|
25 |
4928851 |
CLIP |
|
27 |
11198071 |
SPRING WASHER Ø8X15 SP=1,4 MM |
|
28 |
16043621 |
HEXAGON BOLT M8X25 MM |
|
29 |
4547637 |
FLAT ENGINE GASKET |
|
30 |
4709713 |
WATER PIPE |
|
31 |
10300940 |
PLUG M8 |
|
32 |
10260060 |
SEAL GASKET Ø8X12X1 MM |
|
33 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
34 |
98428903 |
PLATE |
|
35 |
4810359 |
HOSE CLIP |
|
36 |
4565875 |
RUBBER PAD |
|
37 |
13605811 |
SPACER SP=1,5 MM |
|
39 |
8110718 |
WATER PIPE |
|
40 |
14471581 |
O-RING SP=5,33 MM |
|
41 |
8102099 |
RUBBER SLEEVE |
|
42 |
8110595 |
PIPE SOCKET |
|
43 |
8112474 |
WATER PIPE |
|
44 |
8110631 |
WATER PIPE |
|
45 |
8110724 |
RUBBER SLEEVE |
|
46 |
17290181 |
O-RING Ø59,92 MM SP=3,53 MM |
|
47 |
8113499 |
RETAINER |
|
48 |
4936741 |
CLIP |
|
49 |
19033787 |
WATER HOSE |
|
50 |
16992211 |
THREADED PLUG M12X1,5 |
|
51 |
4636689 |
SWIVEL COUPLING |
|
52 |
8009696 |
SCREW CONNECTOR M12X1,5X25 |
|
53 |
98474306 |
WASHER Ø12X20 MM SP=1,9 MM |
|
54 |
17038621 |
NUT M12 |
|
55 |
17764293 |
CLIP Ø10/16 MM |
