8210SRM36.32

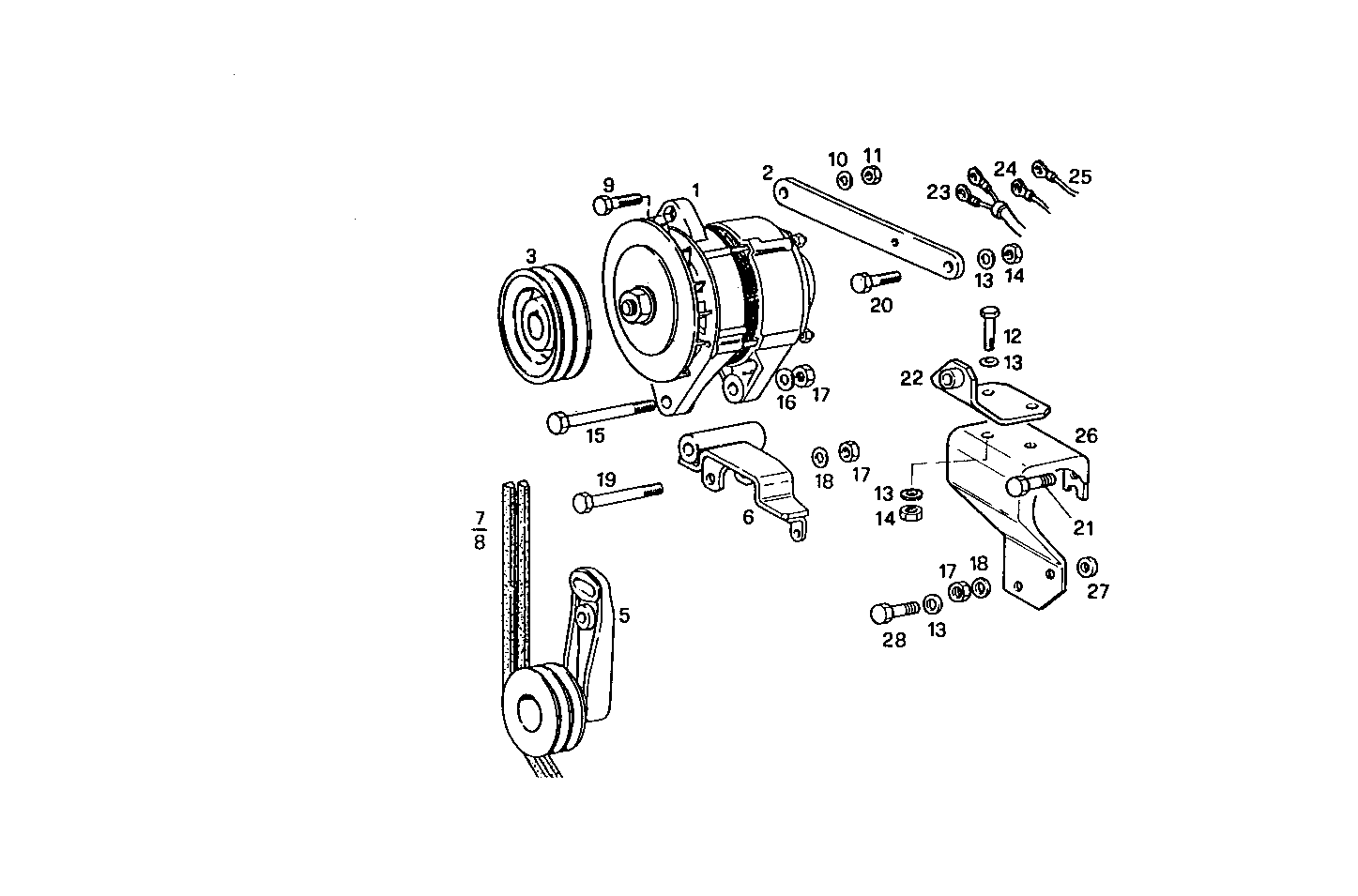

A14090004 SELF-REGULATED ALTERNATOR - 24V 100A - poles system

Iveco/FPT SELF-REGULATED ALTERNATOR

Item Part number Description
1 4798922 ALTERNATOR ASSY
2 8113313 TENSIONER
3 8105844 PULLEY
5 8005562 BELT TENSIONER
6 8005325 SUPPORT
7 8007291 V-BELT KIT
8 8005564 V-BELT KIT [up to 02-92]
9 4785419 HEXAGON BOLT
10 4035499 WASHER
11 12574511 NUT M10X1,25
12 15004021 HEXAGON BOLT M10X1,25X25 MM
13 11198379 SPRING WASHER Ø10X20 MM SP=2,6
14 12164711 HEXAGON NUT M10X1,25
15 4604245 HEXAGON BOLT
16 11190779 SPRING WASHER Ø12X24 SP=2,8 MM
17 16101511 HEXAGON NUT M12X1,25
18 11198679 SPRING WASHER Ø13 MM
19 15541321 HEXAGON BOLT M12X1,25X75 MM
20 11234721 HEXAGON BOLT M10X1,25X45 MM
21 15972321 HEXAGON BOLT M10X125 MM
22 8007324 RETAINER
23 8113047 WIRE/CABLE
24 8019531 WIRE/CABLE W
25 8009673 EARTH WIRE
26 8110355 SUPPORT
27 10730701 WASHER Ø12,2 MM
28 11227921 HEXAGON BOLT M10X28 MM
