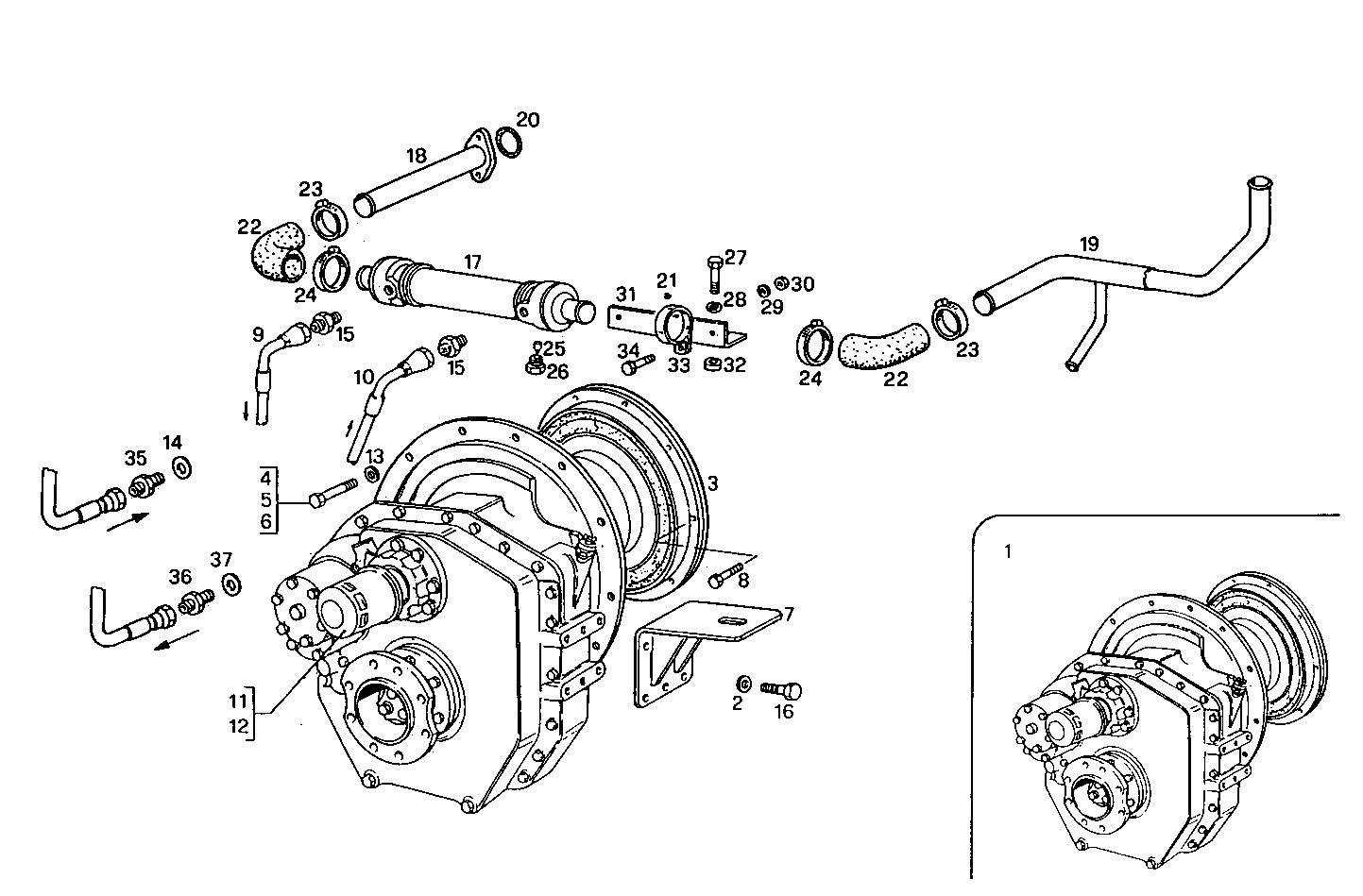

| Item |
Part number |
Description |
|
1 |
8023476 |
MARINE GEAR 2,52:1 |
|
2 |
11200279 |
SPRING WASHER Ø17 MM |
|
3 |
8023060 |
FLEXIBLE COUPLING |
|
4 |
11306921 |
SCREW M10X1,25X30 |
|
5 |
15970921 |
HEXAGON BOLT M10X1,25X35 MM |
|
6 |
10923621 |
HEXAGON BOLT M10X1,25X35 MM |
|
7 |
8108819 |
SUPPORT |
|
8 |
14274631 |
SCREW M12X1,25X35 |
|
9 |
8105620 |
HOSE |
|
10 |
8105226 |
HOSE |
|
11 |
8007794 |
OIL FILTER CARTRIDGE ALTERNATIVE USE |
|
12 |
8007795 |
OIL FILTER CARTRIDGE ALTERNATIVE USE |
|
13 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
14 |
11271460 |
GASKET Ø21X26X1,5 MM |
|
15 |
4932262 |
PIPE SOCKET |
|
16 |
4932875 |
SCREW M16X2X45 |
|
17 |
8109142 |
MARINE GEAR OIL HEAT EXCH ASSY |
|
18 |
8009216 |
WATER PIPE |
|
19 |
8009217 |
WATER PIPE |
|
20 |
17289881 |
O-RING Ø50,3 MM SP=3,5 MM |
|
21 |
4565875 |
RUBBER PAD |
|
22 |
8109863 |
RUBBER SLEEVE |
|
23 |
17764792 |
HOSE CLIP Ø32-50 MM |
|
24 |
17764992 |
CLIP Ø50-70 MM |
|
25 |
8105277 |
SACRIFICAL ANODE Ø14 MM |
|
26 |
8105276 |
PLUG M16 |
|
27 |
4928414 |
SCREW |
|
28 |
11190579 |
SPRING WASHER Ø10X20 MM SP=2,3 |
|
29 |
11198679 |
SPRING WASHER Ø13 MM |
|
30 |
16101511 |
HEXAGON NUT M12X1,25 |
|
31 |
8105222 |
RETAINER |
|
32 |
4932695 |
WASHER |
|
33 |
8104042 |
CLIP |
|
34 |
15540421 |
SCREW M12X1,25X30 |
|
35 |
8026716 |
PIPE SOCKET |
|
36 |
8026676 |
PIPE SOCKET |
|
37 |
10263460 |
WASHER Ø22X28X1,5 MM |
