8210SRM38.10

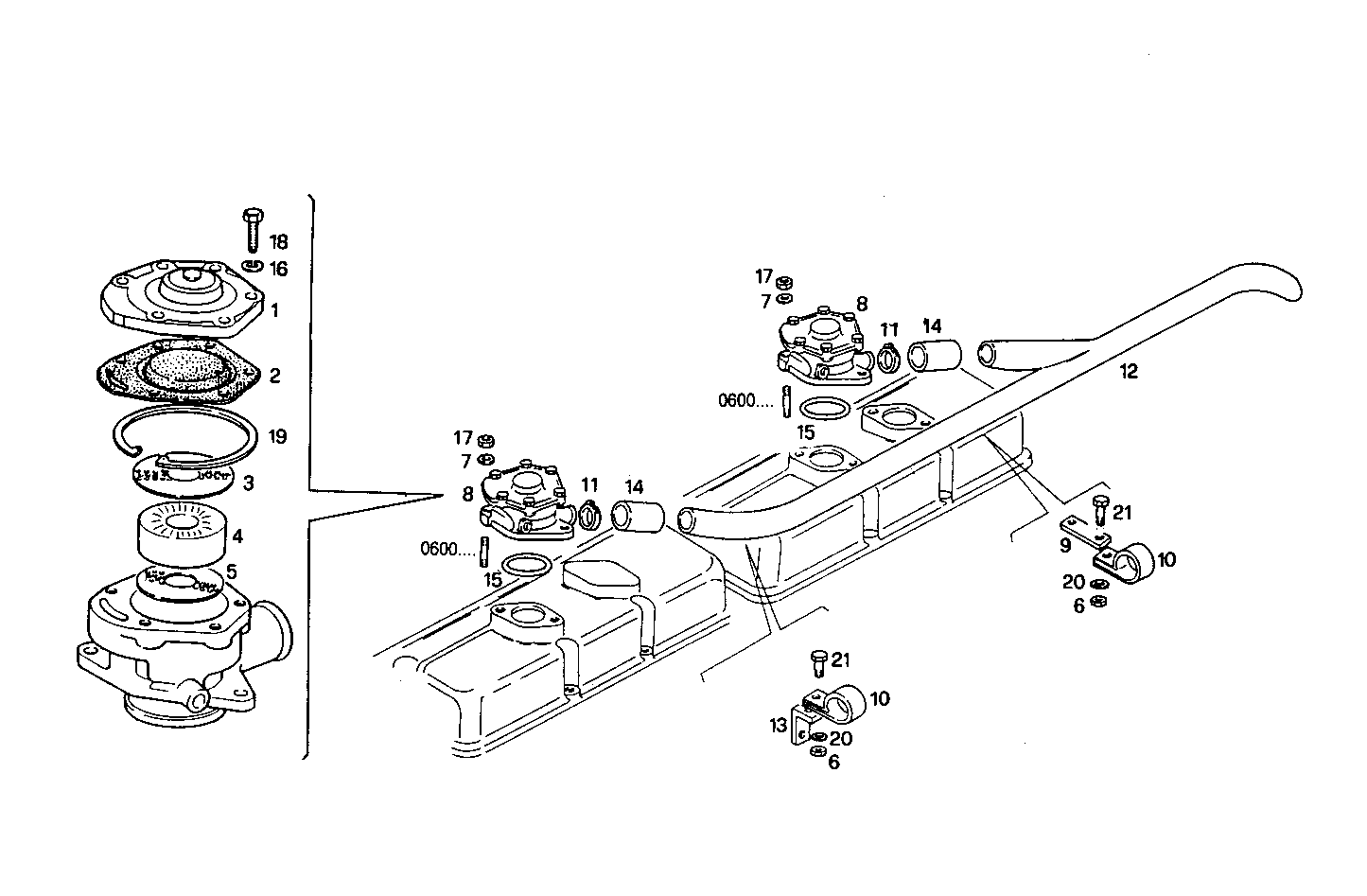

0450.041 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 4771075 COVER
2 61320345 FLAT ENGINE GASKET
3 4771080 DISC
4 4771079 FILTER
5 4771081 DISC
6 17037931 HEXAGON NUT M8X1,25
7 12646704 WASHER Ø8X21X1,5 MM
8 61320347 BREATHER ASSY
9 4930333 RETAINER
10 4842335 RETAINER
11 17764693 CLIP Ø25/40 MM
12 8110748 BREATHER PIPE
13 8111937 RETAINER
14 17741087 RUBBER SLEEVE
15 17289681 O-RING Ø44 MM SP=3,53 MM
16 17094701 WASHER Ø6X12 MM
18 16603924 HEXAGON BOLT M6X30 MM
19 16874976 CIRCLIP Ø90,5 MM
20 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
21 16605524 HEXAGON BOLT M8X20 MM
