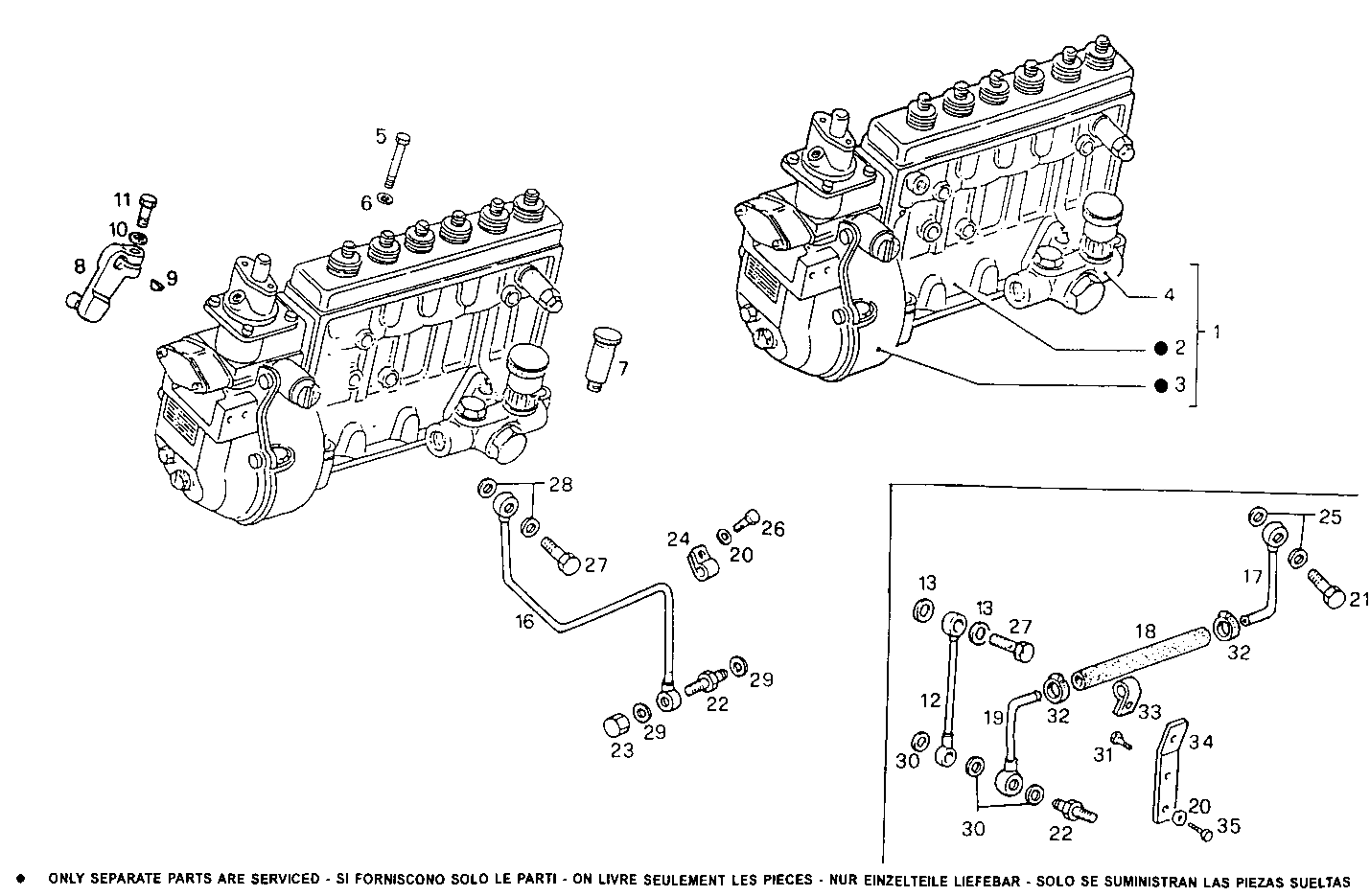

Item |
Part number |
Description |
1 |
98400388 |
INLINE INJECT.PUMP ASSY WEBER |
5 |
15971621 |
HEXAGON BOLT M10X1,25X90 MM |
6 |
17090174 |
SPRING WASHER Ø10X20 MM |
7 |
774417 |
PUMP |
8 |
8108826 |
LEVER |
9 |
8101048 |
KEY 3X5X12,5 |
10 |
15971479 |
WASHER |
11 |
10977821 |
HEXAGON BOLT M5X16 MM |
16 |
8113616 |
OIL LINE |
17 |
4645733 |
FUEL LINE |
18 |
4640882 |
OIL HOSE |
19 |
4645735 |
PIPE |
20 |
11193874 |
WASHER Ø8X16 MM |
21 |
4697153 |
SCREW CONNECTOR |
22 |
4936577 |
SCREW CONNECTOR |
23 |
11902117 |
PLUG M10X1,25 |
24 |
4637897 |
FASTENING BRACKET |
25 |
10280060 |
WASHER Ø14X20 MM SP=1,5 MM |
26 |
16043124 |
SCREW M8X14 MM |
27 |
1390713 |
SCREW CONNECTOR M10X1 |
28 |
10298360 |
SEAL GASKET Ø10X16 MM SP=1 MM |
29 |
10282460 |
SEAL GASKET Ø14X20 MM |
31 |
16043021 |
HEXAGON BOLT M8X12 MM |
32 |
12179490 |
CLIP Ø9-16 MM |
33 |
10450190 |
PIPE CLIP Ø10 MM |
34 |
4645737 |
FASTENING BRACKET |
35 |
15004021 |
HEXAGON BOLT M10X1,25X25 MM |
