8210SRM38.10

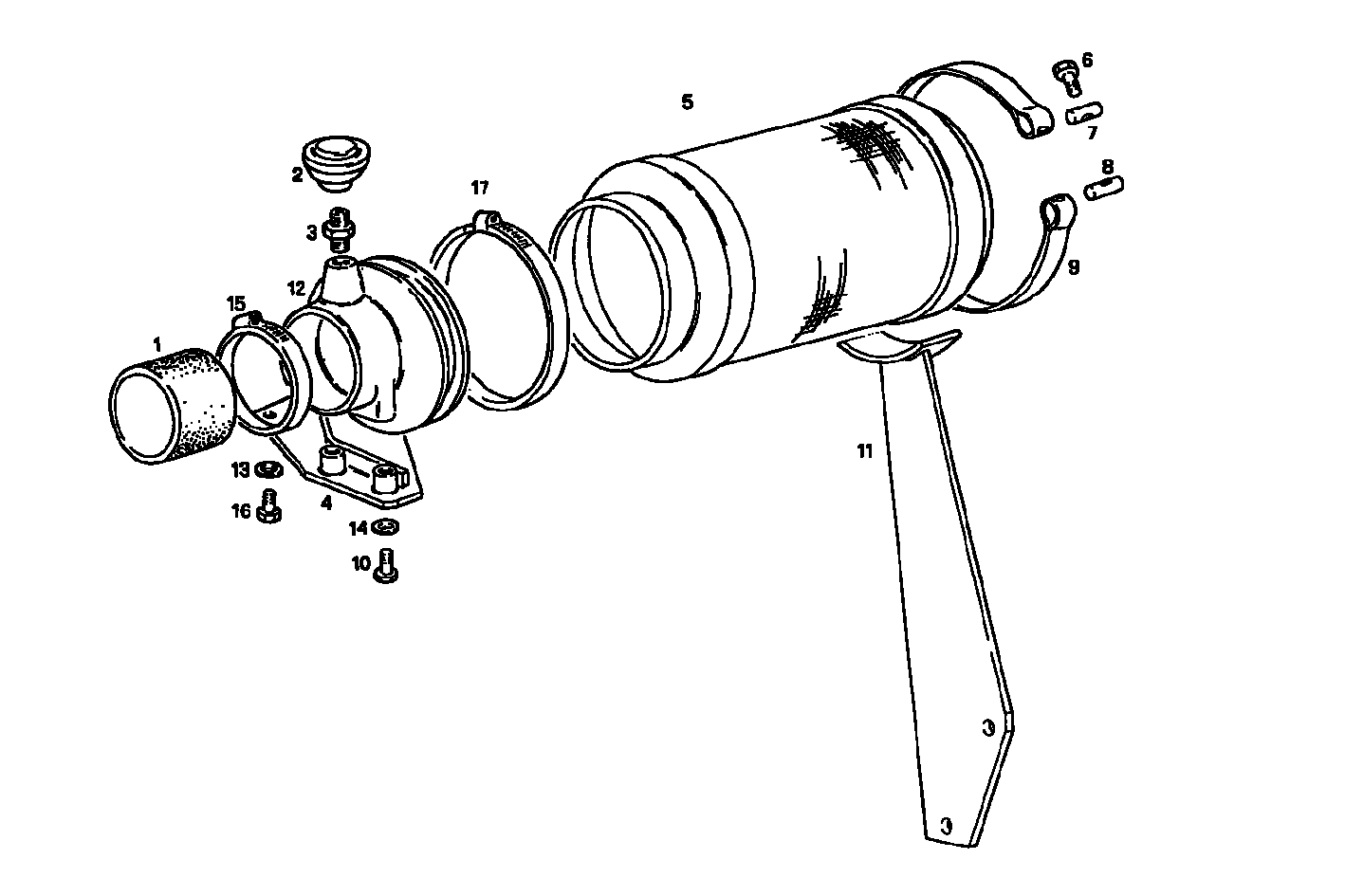

2210.000 AIR CLEANER
Item | Part number | Description |
---|---|---|
1 | 4773335 | TURBOCHARGER HOSE |
2 | 8027423 | CHOCKED FILTER INDIC. |
3 | 8009522 | PIPE SOCKET |
4 | 8111006 | RETAINER |
5 | 8110994 | AIR CLEANER ASSY MANN |
6 | 8105638 | SCREW |
7 | 8111220 | PIN |
8 | 8111221 | PIN |
9 | 8111219 | CLIP |
10 | 16043921 | SCREW M8X35 |
11 | 8111104 | RETAINER |
12 | 8111005 | AIR PIPE/DUCT |
13 | 11194079 | SPRING WASHER Ø8X16 MM SP=1,9 MM |
14 | 11193879 | SPRING WASHER Ø8X16 MM |
15 | 12177490 | CLIP Ø92-112 MM |
16 | 16044221 | HEXAGON BOLT M8X50 MM |
17 | 8017374 | CLIP |
