8210SRM38.10

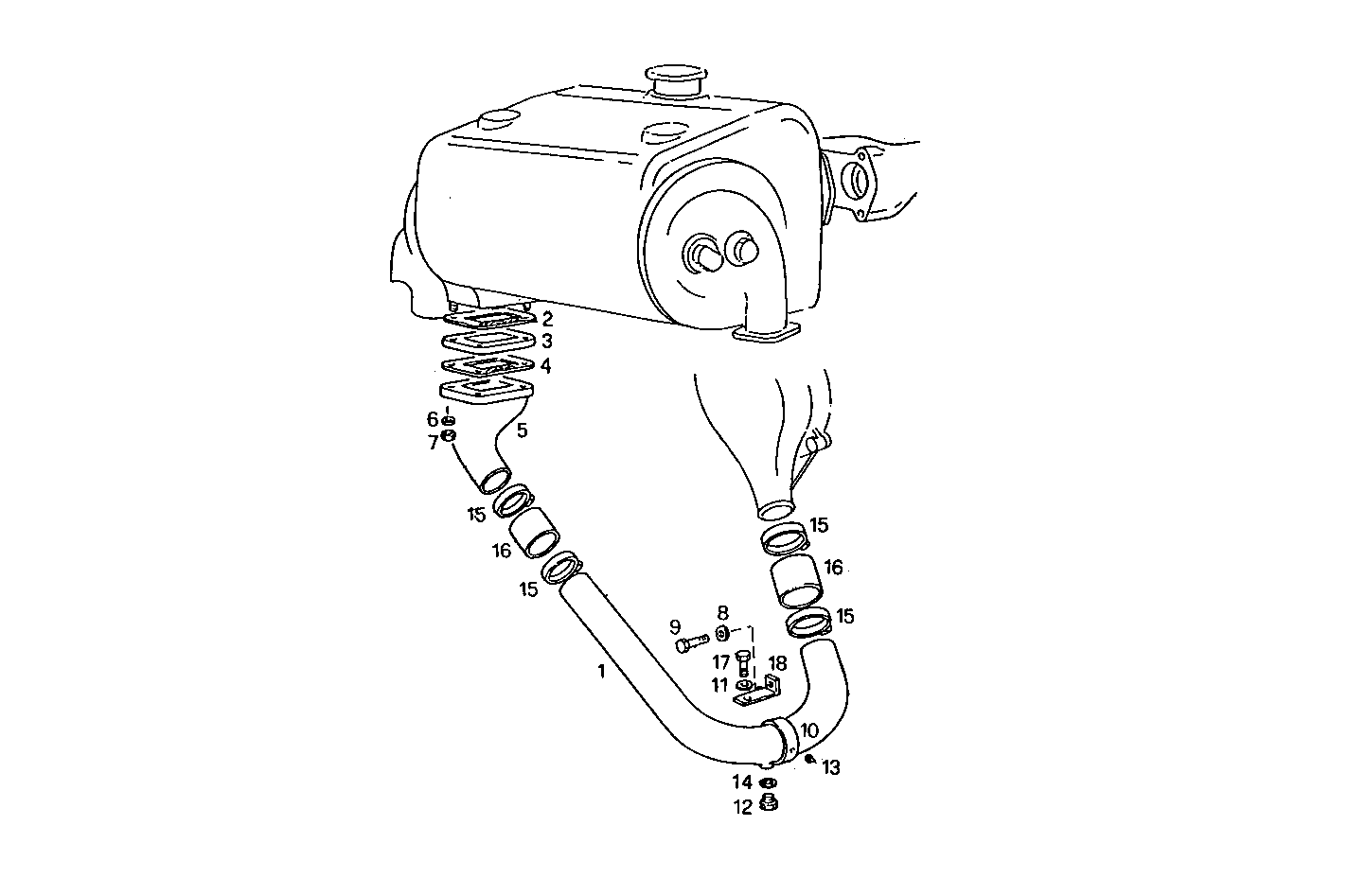

3210.105/02 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8110635 | WATER PIPE |
| 2 | 8008838 | GASKET |
| 3 | 8102752 | SPACING BAR |
| 4 | 8008839 | GASKET |
| 5 | 8108931 | WATER PIPE |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 17037931 | HEXAGON NUT M8X1,25 |
| 8 | 17095104 | WASHER Ø10X21X2 MM |
| 9 | 15977721 | SCREW M14X1,5X75 |
| 10 | 4936328 | CLIP ASSY |
| 11 | 17090174 | SPRING WASHER Ø10X20 MM |
| 12 | 16992211 | THREADED PLUG M12X1,5 |
| 13 | 4568427 | RUBBER PAD |
| 14 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 15 | 17765093 | CLIP Ø60/80 MM |
| 16 | 8107383 | RUBBER SLEEVE Ø60 MM |
| 17 | 15970521 | HEXAGON BOLT M10X20 MM |
| 18 | 8110973 | RETAINER |
