8210SRM38.10

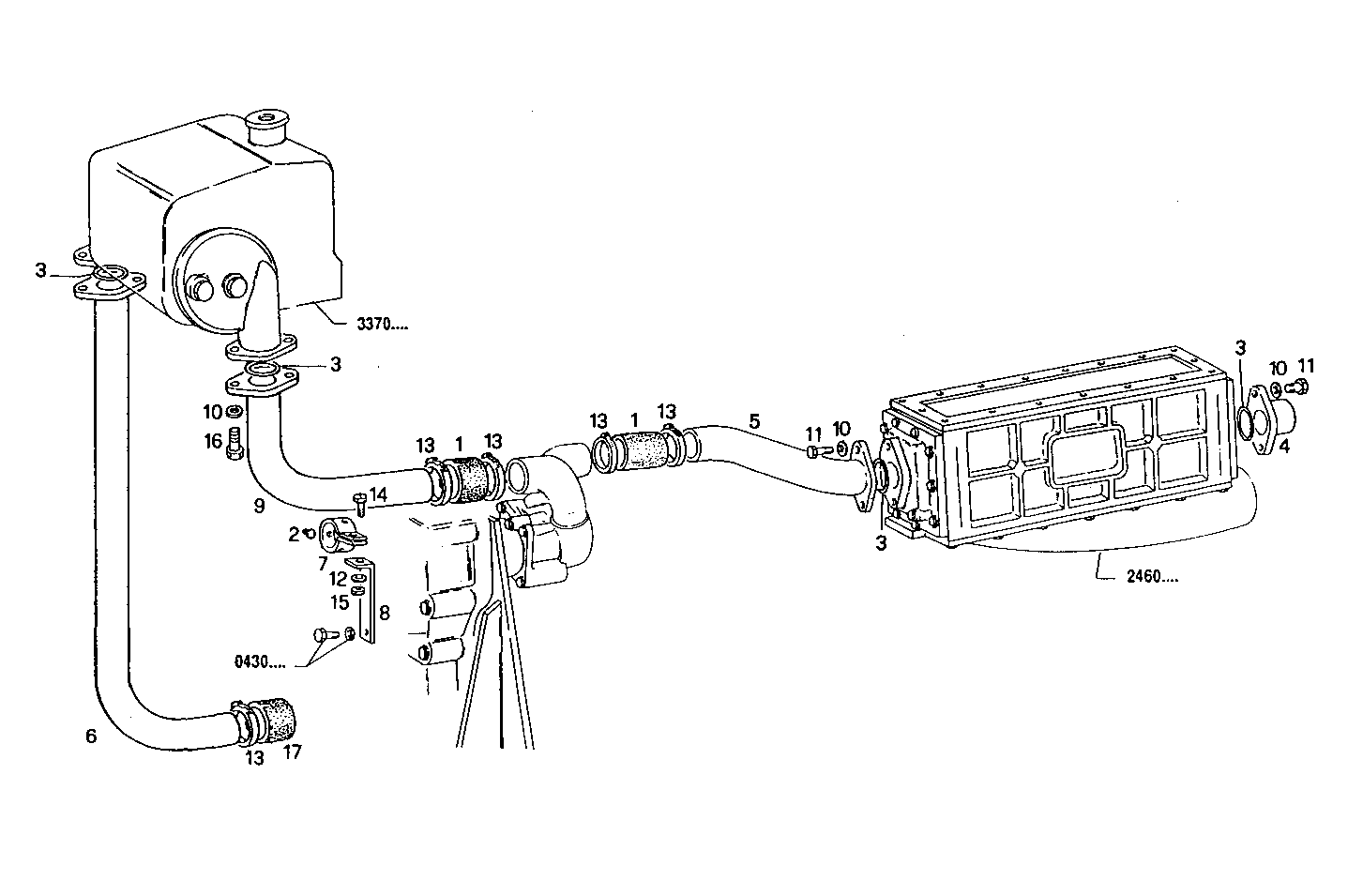

3390.043 SEA WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 4765112 | RUBBER SLEEVE |
| 2 | 4568427 | RUBBER PAD |
| 3 | 17289881 | O-RING Ø50,3 MM SP=3,5 MM |
| 4 | 8110995 | WATER PIPE |
| 5 | 8110725 | WATER PIPE |
| 6 | 8011697 | WATER PIPE |
| 7 | 8111159 | CLIP |
| 8 | 8102705 | RETAINER |
| 9 | 8005335 | WATER PIPE |
| 10 | 17091074 | WASHER Ø12X24X2,8 MM |
| 11 | 16609824 | HEXAGON BOLT M12X1,75X25 MM |
| 12 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 13 | 17764993 | CLIP Ø50/70 MM |
| 14 | 16605524 | HEXAGON BOLT M8X20 MM |
| 15 | 17037931 | HEXAGON NUT M8X1,25 |
| 16 | 15540321 | HEXAGON BOLT M12X1,25X25 MM |
