8210SRM38.10

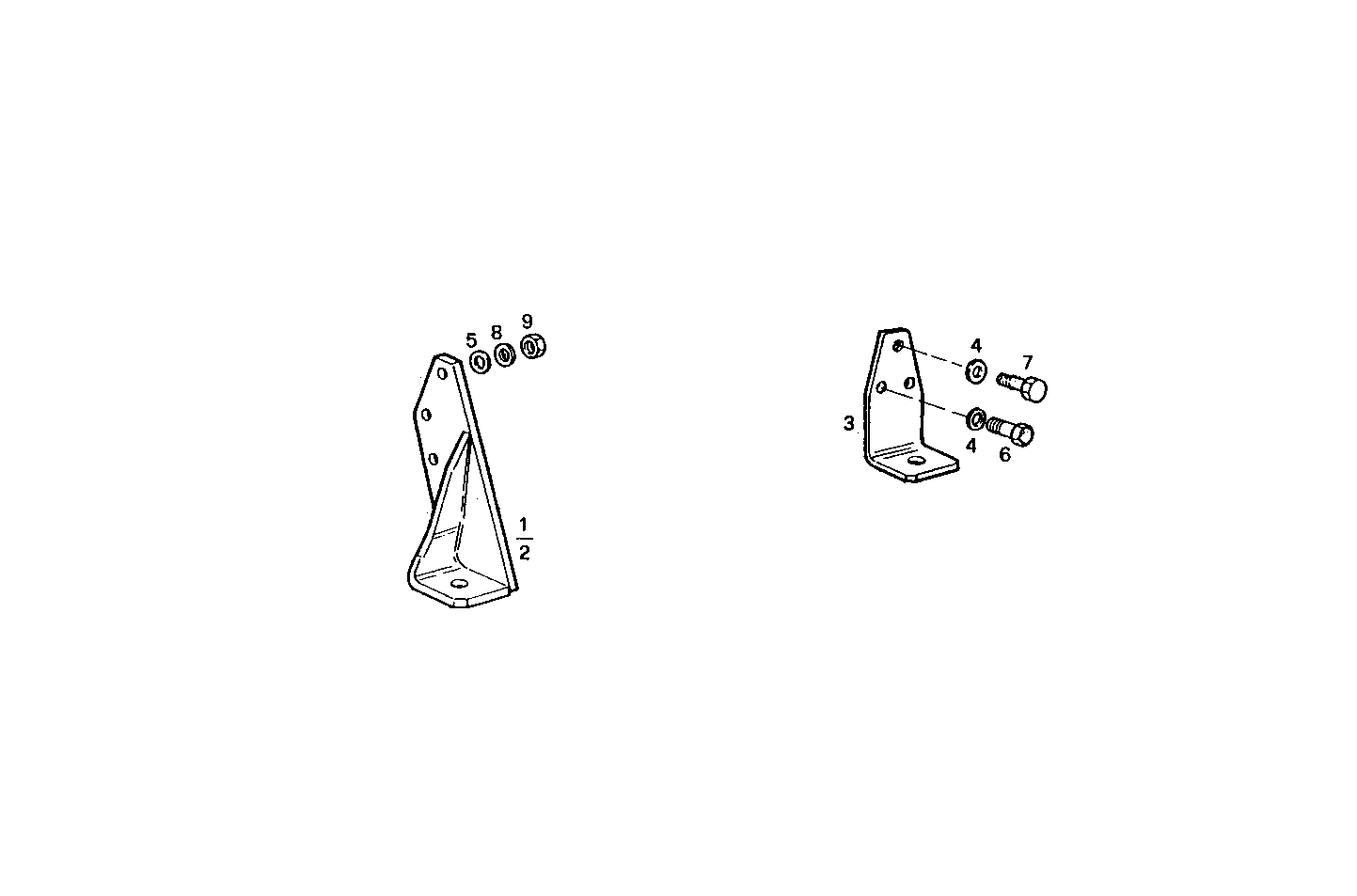

4500.000 ENGINE SUSPENSION
Item | Part number | Description |
---|---|---|
1 | 8110751 | ENGINE SUSPENSION RIGHT |
2 | 8110752 | ENGINE SUSPENSION LEFT |
3 | 8110750 | ENGINE SUSPENSION |
4 | 17092174 | SPRING WASHER Ø16X32X3,4 |
5 | 16605804 | WASHER |
6 | 11391521 | HEXAGON BOLT M16X45 MM |
7 | 15840521 | SCREW M16X1,5X50 |
8 | 17091674 | WASHER Ø14X27X3,0 MM |
9 | 17038821 | HEXAGON NUT M14 |
