8210SRM38.10

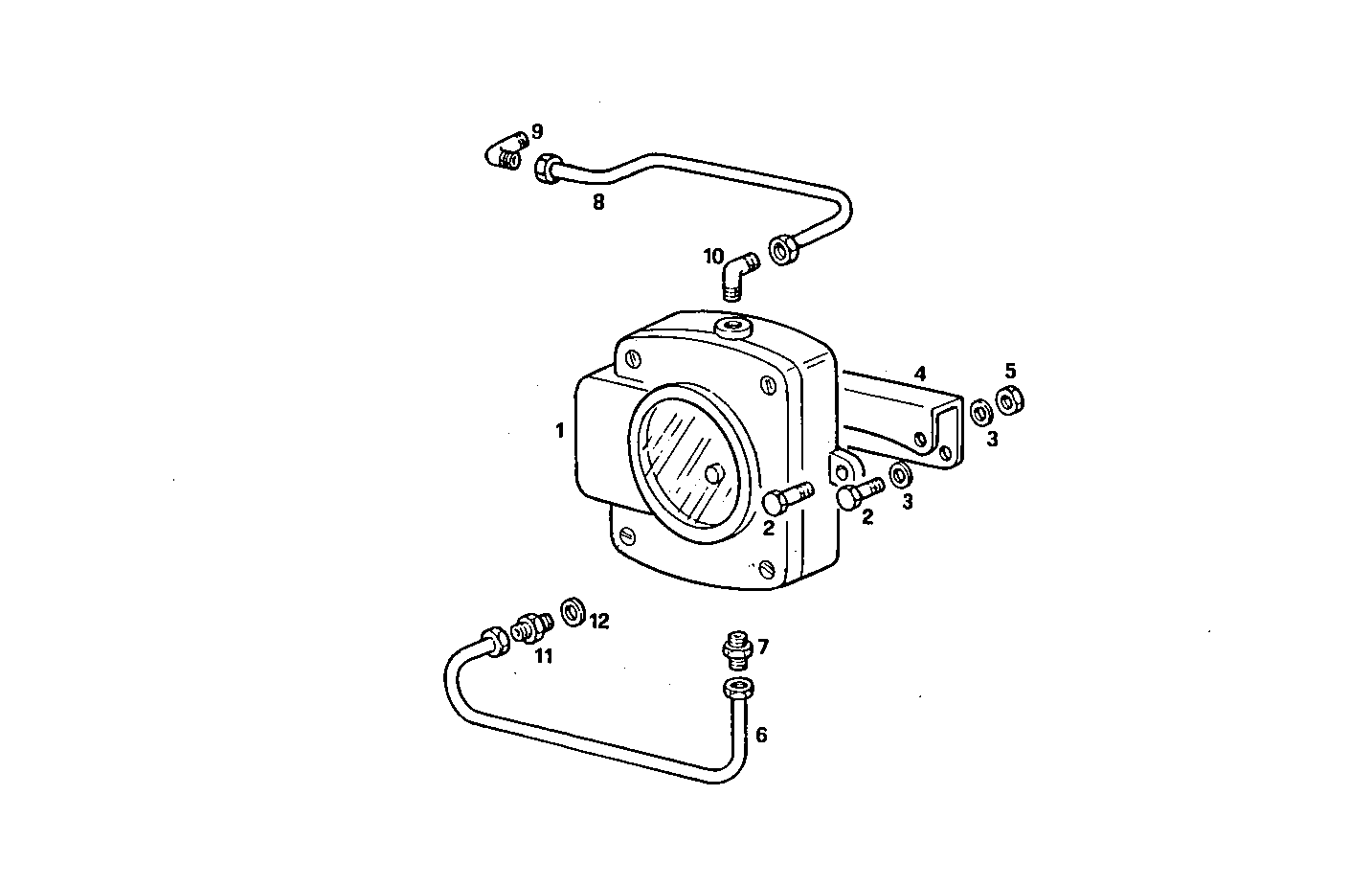

5610.015 INSTRUMENTS
| Item | Part number | Description |
|---|---|---|
| 1 | 8111513 | TRANSMITTER [up to 08-94] |
| 2 | 16043521 | SCREW M8X22 |
| 3 | 11193879 | SPRING WASHER Ø8X16 MM |
| 4 | 8005358 | RETAINER [from 09-89] |
| 5 | 17037931 | HEXAGON NUT M8X1,25 |
| 6 | 8005360 | WATER PIPE [from 09-89] |
| 7 | 8005782 | PIPE SOCKET |
| 8 | 8005359 | WATER PIPE [from 09-89] |
| 9 | 8112247 | PIPE SOCKET |
| 10 | 8111410 | PIPE SOCKET [from 09-89] |
| 11 | 4741602 | THREADED UNION LEFT |
| 12 | 10257460 | SEAL GASKET Ø20X26 MM SP=1,5 MM [up to ...] |
