8210SRM38.10

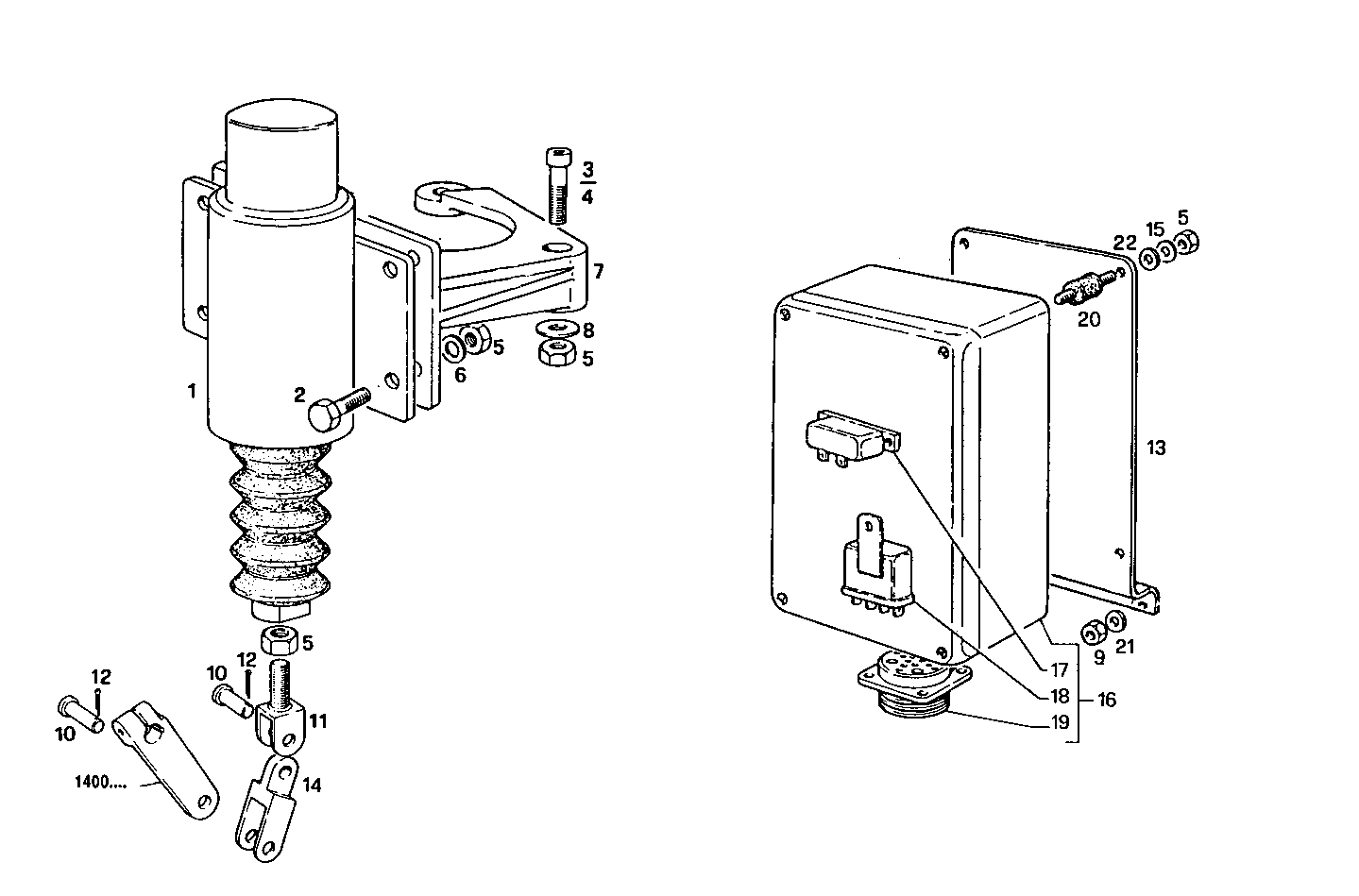

5650.007 ELECTRIC STOP ENGINE

Iveco/FPT ELECTRIC STOP ENGINE

Item Part number Description
1 8105421 SOLENOID ASSY 24V
2 16603624 HEXAGON BOLT M6X16 MM (8.8)
3 16689424 SOCKET-HEAD SCREW M6X30 MM
4 16689324 SCREW M6X25
5 17037821 HEXAGON NUT M6X1
6 17088474 WASHER Ø6X12 MM
7 8109114 SUPPORT
8 17494734 WASHER Ø6X11,8X1,6 MM
9 17037931 HEXAGON NUT M8X1,25
10 17718411 PIN Ø5 MM
11 8108834 CLEVIS
12 16852501 SPLIT PIN Ø1,6X12 MM
13 8017498 RETAINER
14 8108833 CLEVIS
15 17710074 WASHER Ø6X11 MM
16 8020687 ENGINE STOP ASSY [from 05-95]
17 8108574 RELAY STARTER
18 8109522 RELAY STOP
19 8113170 CONNECTION ASSY
20 4910949 RUBBER LUG
21 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
22 17094704 WASHER Ø6X12X1,6 MM
