8210SRM38.10

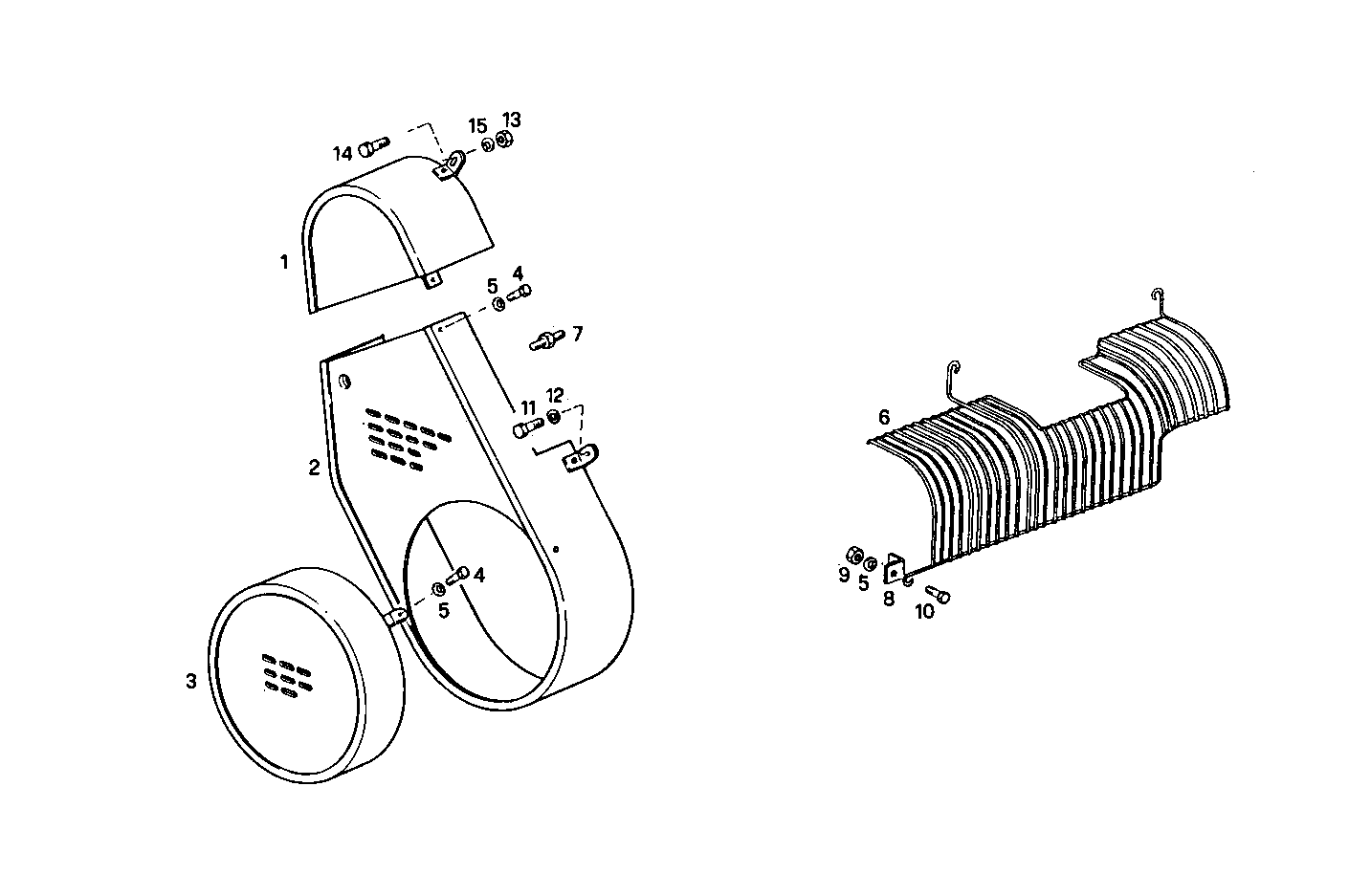

5770.021 SHIELDS
| Item | Part number | Description |
|---|---|---|
| 1 | 8020633 | PROTECTION |
| 2 | 8020632 | PROTECTION |
| 3 | 8020634 | PROTECTION |
| 4 | 16605424 | SCREW M8X16 MM (8.8) |
| 5 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 6 | 8111657 | PROTECTION |
| 7 | 4782501 | STUD L=165 MM |
| 8 | 8100819 | RETAINER |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
| 10 | 16605524 | HEXAGON BOLT M8X20 MM |
| 11 | 15540324 | SCREW M12X1,25X25 |
| 12 | 17091074 | WASHER Ø12X24X2,8 MM |
| 13 | 16980131 | HEXAGON NUT M12 |
| 14 | 15970521 | HEXAGON BOLT M10X20 MM |
| 15 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
