8210SRM38.10

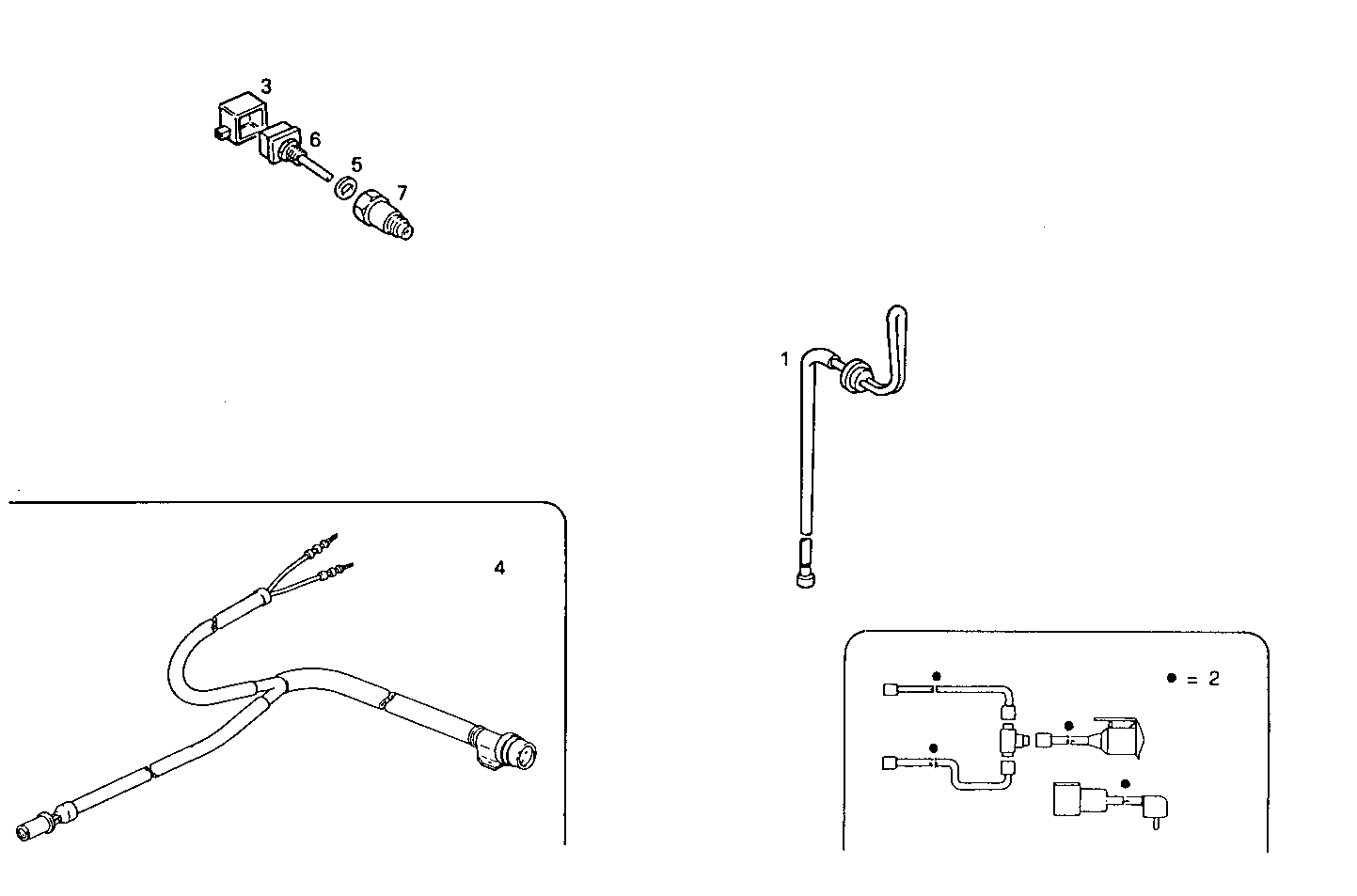

A20040062 WATER PREHEATER DEVICE - 220V [D 04-1997] [from04-1997]
| Item | Part number | Description |
|---|---|---|
| 1 | 98450928 | RESISTOR |
| 2 | 8009376 | WIRE/CABLE ASSY |
| 3 | 8021565 | CAP |
| 4 | 8023866 | ENGINE HARNESS |
| 5 | 11270460 | GASKET Ø17X21X1,5 MM |
| 6 | 8017120 | THERMOSTAT [from 10-93] |
| 7 | 8017119 | SPACING BAR [from 10-93] |
