8210SRM38.10

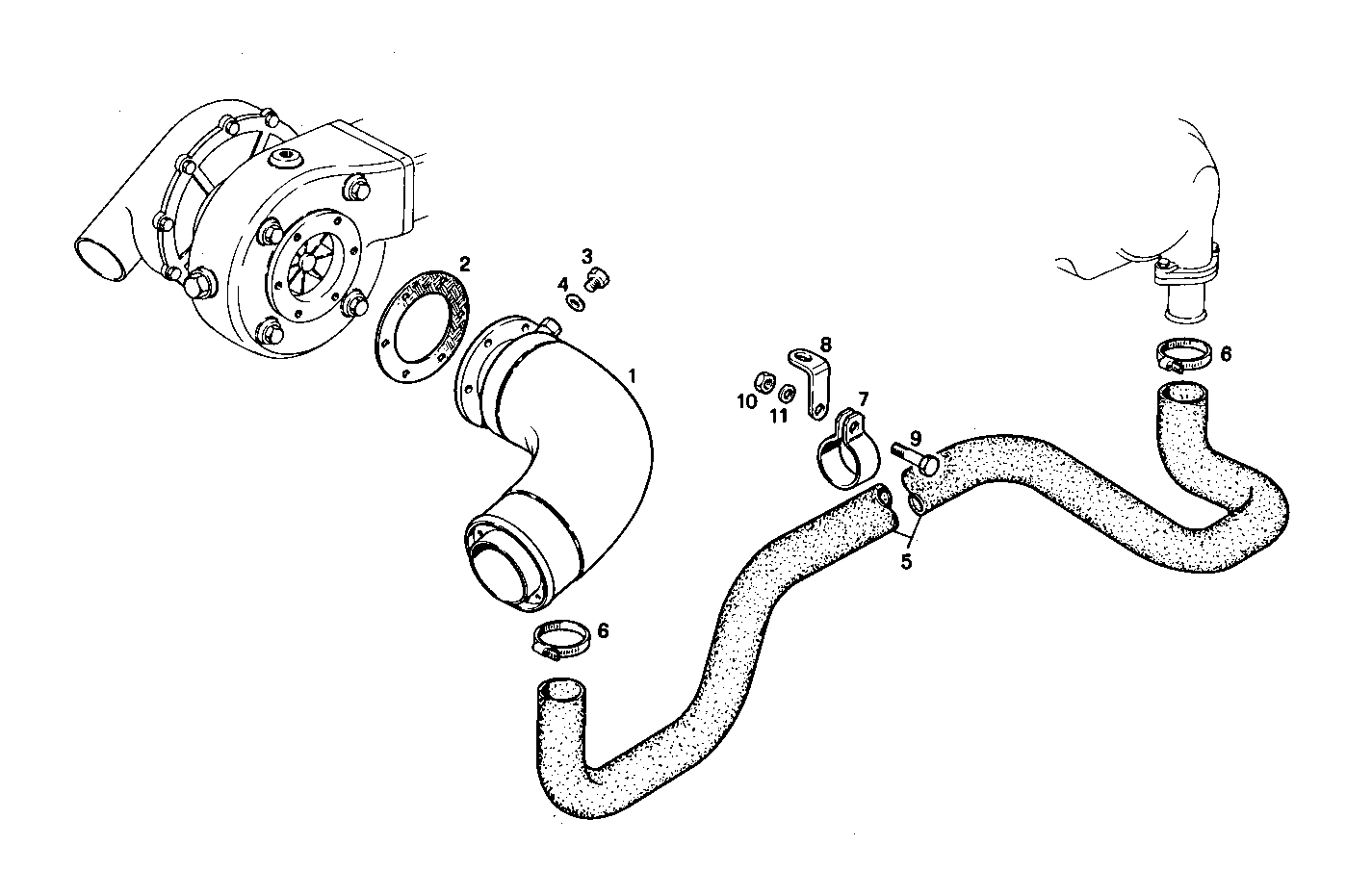

A40050009 GAS-WATER MIXER WITH STERN OUTLET
| Item | Part number | Description |
|---|---|---|
| 1 | 8025603 | EXHAUST COOL. ELBOW |
| 2 | 42075987 | GASKET |
| 3 | 16992240 | THREADED PLUG M12X1,5 |
| 4 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 5 | 8013200 | WATER HOSE |
| 6 | 17765093 | CLIP Ø60/80 MM |
| 7 | 8100668 | CLIP |
| 8 | 8112179 | RETAINER |
| 9 | 16605524 | HEXAGON BOLT M8X20 MM |
| 10 | 17037931 | HEXAGON NUT M8X1,25 |
| 11 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
