8210SRM38.10

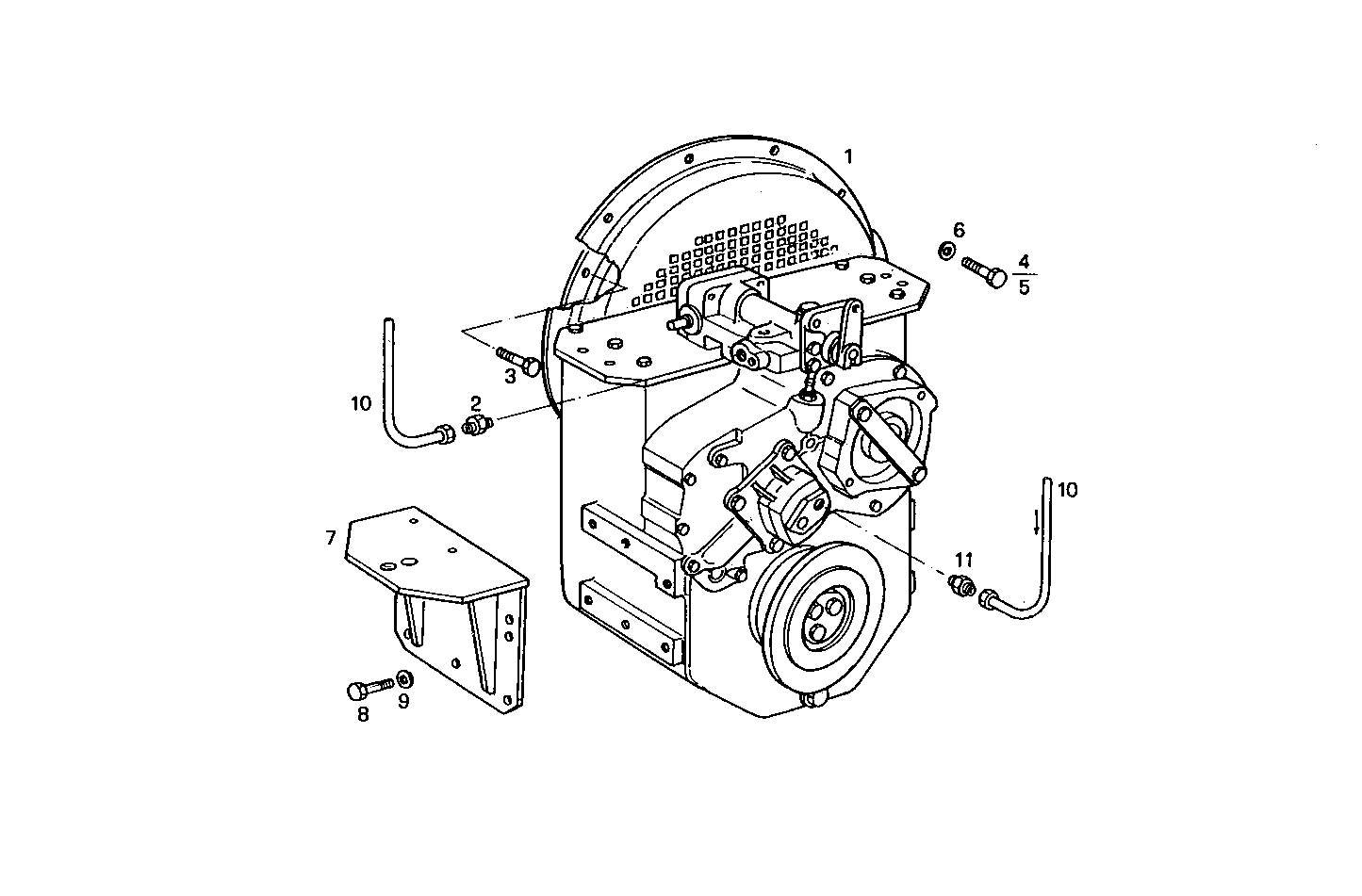

A51580005 MARINE GEAR TWIN DISC MG 5111 - ratio 4.95:1
| Item | Part number | Description |
|---|---|---|
| 1 | 8010376 | MARINE GEAR 4,95:1 |
| 2 | 8017553 | PIPE SOCKET [up to 05-98] |
| 3 | 14274621 | LOCKING SCREW M12X1,25X35 |
| 4 | 11306921 | SCREW M10X1,25X30 |
| 5 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 6 | 17090174 | SPRING WASHER Ø10X20 MM |
| 7 | 8010464 | SUPPORT |
| 8 | 4933337 | SCREW |
| 9 | 17092374 | SPRING WASHER Ø16X34X3,6 MM |
| 10 | 8113774 | HOSE |
| 11 | 8113794 | PIPE SOCKET |
